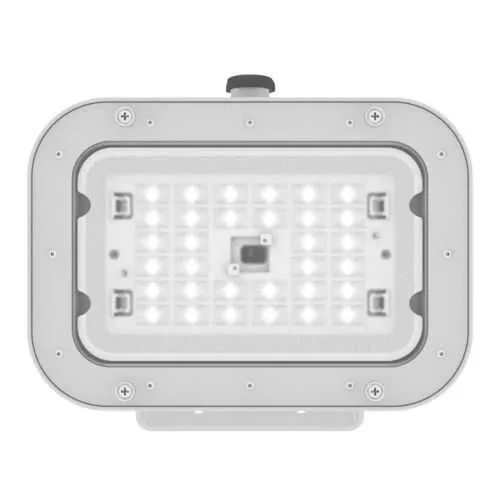

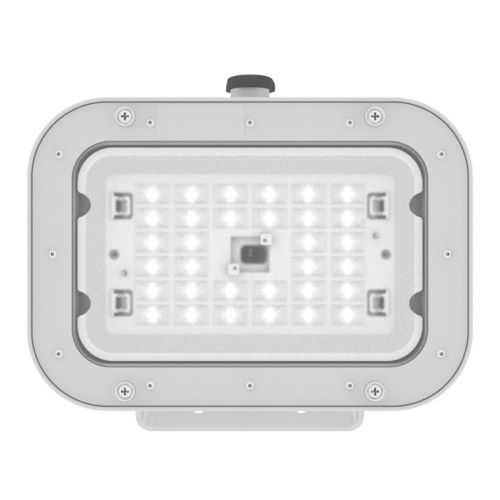

Eaton Crouse-Hinds FMVA-13-76-DG-UNV3-M2 LED floodlight - IP67
Part Number: FMVA-13-76-DG-UNV3-M2
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA-13-76-DG-UNV3-M2
Category
Quick Summary
FMVA-13-76-DG-UNV3-M2 is a high-efficiency LED floodlight for hazardous locations in industrial facilities. Engineers often wrestle with reliable illumination, corrosion resistance, and regulatory compliance in harsh environments, which can drive up maintenance and downtime. This fixture delivers IP67 ingress protection, NEMA 4X durability, and NEC/CEC hazardous-location ratings to simplify approvals and long-term operation. With 13000 lumens at 90 watts and a wide 347–480 VAC range, it provides energy-efficient, high-quality light for challenging process areas while reducing total cost of ownership. Its rugged die-cast aluminum housing, diffused glass lens, and gray epoxy powder coat support extended service intervals and lower maintenance cycles for industrial operations.
Product Information
Extended Description
FMVA-13-76-DG-UNV3-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 0.26 - 0.19A, Cool white, 3/4" entry, Diffused glass lens, 13000 lumens, 154 lm/W, Die cast aluminum, Yoke mount, 7x6 optics, Gray epoxy powder coat, 347-480 Vac, 90W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA-13-76-DG-UNV3-M2
Product Length/Depth
16.12 in
Product Height
14.94 in
Product Width
9.94 in
Product Weight
24.92 lb
UPC
662277153157
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP67
Lamp type
LED
Lumens
13000
Lumens per watt
154
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Diffused glass
Wattage
90W
Power factor
> 0.90
Amperage Rating
0.26 - 0.19A
Material
Die cast aluminum
Special features
Gray epoxy powder coat
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens catalog page
IF 1956 - Champ FMVA M2 9L-15L LED Luminaire
Crouse-Hinds series FMVA LED Floodlights IES photometric files
Feature: High-efficiency LED performance delivers 13000 lumens at 90 watts, achieving 154 lm/W. Business Impact: Lower energy consumption and reduced heat load extend equipment life and decrease operating expenses. Application: Ideal for large-area illumination in hazardous environments such as refineries and chemical plants. Feature: Wide voltage range 347-480 VAC and 50/60 Hz compatibility reduces wiring complexity and supports global deployments. Business Impact: Simplified installation, fewer spare parts, and quicker commissioning. Application: Suitable for facilities with varying electrical infrastructure. Feature: Rugged construction with die-cast aluminum housing and diffused glass lens plus gray epoxy powder coat. Business Impact: Superior corrosion resistance and weather sealing translate to longer outdoor and indoor service life, lowering maintenance costs. Application: Offshore platforms, mining sites, and outdoor processing yards. Feature: IP67 ingress protection and NEMA 4X rating provide robust protection against dust, water, and harsh chemicals. Business Impact: Compliance with stringent standards reduces risk and accelerates regulatory approvals. Application: Hazardous/classified locations per NEC/CEC guidelines. Feature: Yoke mounting and 7x6 optical distribution enable flexible aiming and precise illumination. Business Impact: Easy installation and optimized light targeting minimize energy waste. Application: Dockyards, mezzanines, and demanding industrial spaces. Feature: Diffused glass lens and cool-white LED color temperature support clear visibility and reduced shadows. Business Impact: Improves operator safety and accuracy in critical tasks. Application: Control rooms, assembly lines, and outdoor areas around hazardous processes.
Get a Quick Quote for a Eaton Crouse-Hinds FMVA-13-76-DG-UNV3-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FMVA-13-76-DG-UNV3-M2?
Enquire Now
FAQs
The FMVA-13-76-DG-UNV3-M2 uses a yoke mount with a 3/4 inch entry and dimensions of roughly 16.12 in length, 14.94 in height, and 9.94 in width. It is designed for Class I, Division 2 and Class II, Division 2 environments, with IP67 and NEMA 4X protection. Ensure proper grounding, compliant enclosure selection, and secure mounting to withstand industrial vibration and impact. Verify voltage availability of 347-480 VAC and confirm 50/60 Hz operation for consistent performance.
The fixture delivers 13000 lumens at 90 watts with a nominal efficiency of 154 lm/W. It maintains a power factor greater than 0.90, supporting efficient electrical usage and reduced reactive current. The 347-480 VAC input across 50/60 Hz ensures stable light output across regional power systems, making it suitable for large-area hazardous-location lighting without oversized transformers or multiple SKUs.
Yes. The FMVA-13-76-DG-UNV3-M2 is specifically designed for hazardous and classified locations, featuring IP67 ingress protection, NEMA 4X ruggedness, and NEC/CEC compliant ratings. Its 13000 lm output, diffused lens, and 7x6 optical distribution provide uniform illumination for large outdoor or indoor process areas, improving visibility, safety, and productivity in oil & gas, mining, and chemical facilities.
The fixture is certified for hazardous locations with NEC/CEC standards and offers Area Classification for Hazardous/Classified Locations. It features IP67 protection and a NEMA 4X rating for robust environmental sealing, corrosion resistance, and impact protection. These certifications support regulatory approvals and reduce risk when deploying lighting in challenging industrial environments.
The FMVA-13-76-DG-UNV3-M2 delivers energy savings through high efficacy (154 lm/W) and a 90 W power draw, reducing electricity costs and heat load. Its rugged construction and long luminance life in hazardous locations translate to fewer replacements and maintenance interventions, lowering total cost of ownership while maintaining consistent illumination for safety-critical operations.
