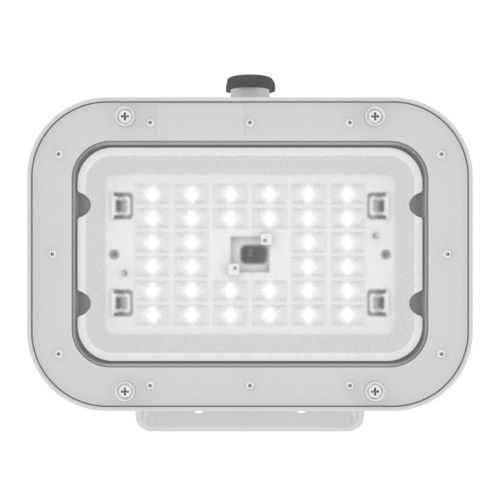

Eaton FMVA-9-76-UNV1-M2 LED Floodlight - IP67 Rating
Part Number: FMVA-9-76-UNV1-M2
Quick Summary
FMVA LED floodlight by Eaton Crouse-Hinds delivers high-output illumination for hazardous-location environments. This configuration helps you replace fragile, inefficient fixtures while reducing maintenance cycles in industrial plants, refineries, and offshore facilities. The luminaire carries IP67 protection and a NEMA 4X housing, with NEC hazardous-location ratings (Class I, Division 2; Class II, Division 2), ensuring safe operation in challenging conditions. By combining robust construction with universal 100–277 VAC input and a long-lived LED source, it minimizes downtime and energy spend. The result is dependable, code-compliant lighting that supports safer workflows and lower total cost of ownership for critical sites.
Product Information
Extended Description
FMVA-9-76-UNV1-M2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 0.59 - 0.22A, Cool white, 3/4" entry, Heat and impact resistant glass lens, 9000 lumens, 162 lm/W, Die cast aluminum, Yoke mount, 7x6 optics, Gray epoxy powder coat, 100-277 Vac, 58W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA-9-76-UNV1-M2
Product Length/Depth
16.12 in
Product Height
14.94 in
Product Width
9.94 in
Product Weight
24.95 lb
UPC
662277145763
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP67
Lamp type
LED
Lumens
9000
Lumens per watt
162
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Wattage
58W
Power factor
> 0.90
Amperage Rating
0.59 - 0.22A
Material
Die cast aluminum
Special features
Gray epoxy powder coat
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens catalog page
IF 1956 - Champ FMVA M2 9L-15L LED Luminaire
Crouse-Hinds series FMVA LED Floodlights IES photometric files
9000 lumens at 58W with 162 lm/W efficiency delivers bright, uniform illumination while significantly trimming energy costs on large sites. This high-performance LED platform reduces spare parts and maintenance cycles, improving reliability for outdoor yards, loading docks, and hazardous-area corridors. IP67 and NEMA 4X-rated housing protect against dust, immersion, and corrosive washdowns, lowering downtime in harsh environments. The heat- and impact-resistant glass lens resists abrasion and chemical exposure, extending service life in refineries, chemical plants, mining operations, and offshore facilities. Universal 100-277 VAC input with 50/60 Hz and a PF >0.90 simplifies integration with existing wiring and controls, cutting installation time and reducing inventory of voltage-specific units. The combination of high efficiency and robust electrical design translates to lower total connected load on facility-wide lighting projects. Yoke mounting and a 3/4 inch entry enable flexible positioning, while the 7x6 optical distribution provides broad coverage with minimal hot spots. The die-cast aluminum housing and gray epoxy powder coat resist corrosion and weathering in exposed locations, reducing maintenance. Hazardous-location readiness is reinforced by NEC Class I Division 2 and Class II Division 2 ratings and IP67/NEMA 4X enclosure, ensuring code compliance across regional specs. This setup supports safer operations, reduces risk, and delivers a clear ROI through energy savings and longer service life.
Get a Quick Quote for a Eaton Crouse-Hinds FMVA-9-76-UNV1-M2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FMVA-9-76-UNV1-M2?
Enquire Now
FAQs
Installation in hazardous-classified spaces should follow the NEC guidelines for Class I Division 2 environments. Begin with de-energizing circuits, secure the fixture using the included yoke mount, and connect power through the 3/4 inch entry. Verify electrical continuity, ensure proper sealing for IP67 protection, and perform a commissioning test to confirm PF>0.90 and correct optical alignment for the 7x6 distribution. Use appropriate anti-spark tools and PPE, and follow Eaton’s installation instructions to ensure compliance and safety.
Key specs include 9000 lumens at 58W with a luminous efficacy of 162 lm/W, color temperature cool white, voltage rating of 100-277 Vac, 50/60 Hz operation, and a power factor greater than 0.90. Amperage ranges from 0.59–0.22 A, with a 58W power draw. The unit uses a die-cast aluminum housing, 3/4 inch entry, and 7x6 optical distribution for broad, even coverage across industrial settings.
Yes. The fixture features IP67 ingress protection and a NEMA 4X enclosure, making it resistant to dust, water, and harsh weather. Its hazardous-location ratings (NEC Class I Division 2; Class II Division 2) enable safe use in chemical plants, refineries, mining, and offshore environments while delivering reliable, long-life illumination.
The FMVA-9-76-UNV1-M2 carries NEC hazardous-location ratings (Class I Division 2 and Class II Division 2) and a NEMA 4X/IP67 enclosure. These protections align with regulatory requirements for hazardous environments and support compliance with NEC/CEC standards, helping facilities meet safety and performance criteria without sacrificing efficiency.
The 9000-lumen output at 58W delivers high efficiency (162 lm/W) and long LED life, reducing energy costs and replacement parts over time. The rugged housing and sealed lens lower maintenance frequency by resisting corrosion and washdown damage. In critical sites, the fixture translates to lower downtime, safer operations, and a favorable total cost of ownership.
