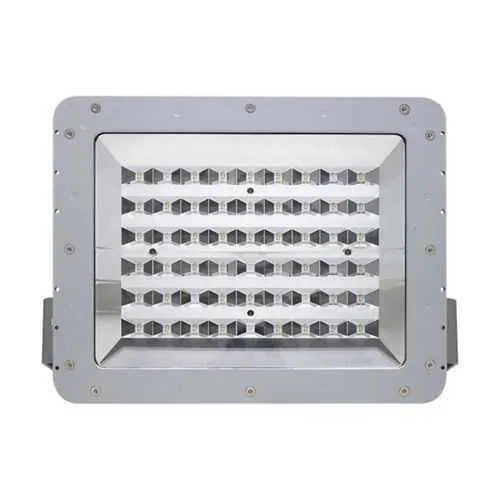

Eaton Crouse-Hinds FMVA11LCY-UNV1-76-S891 LED Floodlight - IP66

Part Number: FMVA11LCY-UNV1-76-S891
FMVA11LCY-UNV1-76-S891
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA11LCY-UNV1-76-S891
Category

Quick Summary

The Eaton Crouse-Hinds FMVA11LCY-UNV1-76-S891 LED floodlight delivers high-output illumination for hazardous-location facilities. Facility teams often face downtime and safety concerns when lighting fails in harsh environments, making reliability non-negotiable. This luminaire combines rugged die-cast aluminum housing with a diffused glass lens and a dimmable driver to support precise control and long service life. It carries hazardous-area approvals (Hazardous/Classified Locations) along with NEC/CEC IECEx/ATEX and IP66/NEMA 4X ratings, which helps you stay compliant across global sites. Designed for 100-277 VAC or 108-250 VDC and a 3/4" entry, it fits standard industrial wiring and installation practices. By reducing maintenance cycles and energy use with 11,000 lumens at 84 W, it aligns with sustainability and uptime goals.

Product Information

Extended Description

FMVA11LCY-UNV1-76-S891 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, Cool white, Dimmable driver, 3/4" entry, 320W equivalent, Diffused glass lens, 11000 lumens, 144 lm/W, Die cast aluminum, Yoke mount, 100-277 Vac, 108-250 Vdc, 84W, 7x6 optics
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA11LCY-UNV1-76-S891
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
UPC
662276913844
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
11000
Lumens per watt
144
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Diffused glass
Wattage
84 W
Dimming
Dimmable driver
Equivalent luminaire
320W
Power factor
> 0.90
Material
Die cast aluminum
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens brochure Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens brochure Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens catalog page Champ FMVA LED Hazardous Area Floodlights ABS certification Champ FMVA LED Hazardous Area Floodlights ABS certification Champ FMVA LED Hazardous Area Floodlights ABS certification Champ FMVA LED Hazardous Area Floodlights ABS certification Champ FMVA LED Hazardous Area Floodlights ABS certification Champ FMVA LED Hazardous Area Floodlights ABS certification IF 1883 - Champ FMVA LED Floodlight IF 1883 - Champ FMVA LED Floodlight Eaton Specification Sheet - FMVA11LCY-UNV1-76-S891
High-efficiency LED technology delivers 11,000 lumens at 84 watts, achieving 144 lm/W. This translates to lower energy costs and cooler operation, reducing cooling loads in plant spaces. In hazardous locations where reliability matters, fewer replacements mean lower maintenance costs and less downtime. The dimmable driver enables precise light level control, supporting energy management strategies and process visibility across variable operations. The wide input range of 100-277 VAC or 108-250 VDC simplifies procurement and reduces stocking needs while maintaining consistent performance at 50/60 Hz. The rugged die-cast aluminum housing and diffused glass lens provide durable, uniform illumination with excellent corrosion resistance in outdoor and damp environments. The yoke mounting and 3/4" entry streamline installation, wiring, and future repositioning on busy plant floors. Certification coverage, including NEC/CEC IECEx/ATEX, IP66, and NEMA 4X, minimizes compliance risk and accelerates approvals for global projects. Industry-ready documentation, ABS/UL references, and installation sheets support fast commissioning and maintenance planning.

Get a Quick Quote for a Eaton Crouse-Hinds FMVA11LCY-UNV1-76-S891

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds FMVA11LCY-UNV1-76-S891? Enquire Now

FAQs

This floodlight uses a versatile yoke mounting method and features a 3/4" entry for standard conduit wiring, enabling straightforward installation in plant ceilings, walls, or exterior fixtures. It supports a wide voltage range from 100-277 VAC and 108-250 VDC, which simplifies sourcing and stocking for mixed fleets while maintaining consistent performance across 50/60 Hz systems.
The dimmable driver allows you to reduce light levels during low-need periods or in areas with variable activity, delivering meaningful energy savings without sacrificing safety or visibility. When integrated with smart controls or manual dimming approaches, it helps balance illumination with process requirements, extending lamp life and lowering operating costs in critical facilities.
Yes. The FMVA11LCY-UNV1-76-S891 is specified for Hazardous/Classified Locations and meets NEC/CEC IECEx/ATEX standards, with IP66 ingress protection and a NEMA 4X enclosure. These ratings confirm suitability for Division 2/location 2 and Zone 2, as well as other hazardous-area classifications, reducing regulatory risk on global projects.
Ideal for chemical plants, oil and gas facilities, mining operations, and outdoor yard lighting, the FMVA floodlight delivers robust performance in harsh environments. Its 11,000-lumen output, diffused glass lens, and corrosion-resistant housing support wide-area illumination, equipment uplighting, and perimeter security in hazardous locations.
The LED design offers long life with fewer lamp replacements, reducing maintenance labor and downtime. With an 84 W consumption delivering 11,000 lumens at 144 lm/W, energy costs are lowered compared to legacy solutions. The rugged enclosure and certified compliance also minimize commissioning delays and compliance overhead on multi-site deployments.
