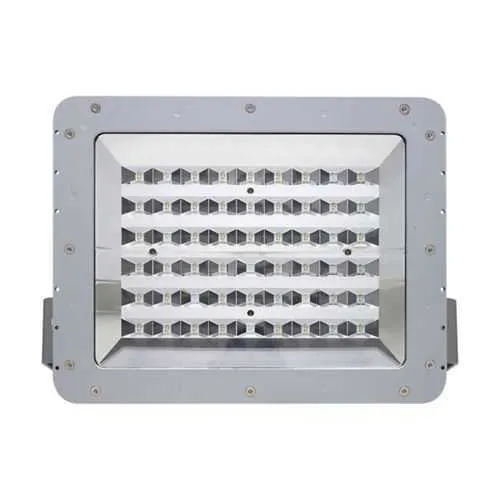

Eaton FMVA11LCY-UNV34-76-S903 LED Floodlight - IP66

Part Number: FMVA11LCY-UNV34-76-S903
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA11LCY-UNV34-76-S903

Quick Summary

FMVA11LCY-UNV34-76-S903 LED floodlight provides rugged, high-output illumination for hazardous-area industrial sites. End users struggle with lighting that fails under dust, moisture, or explosive atmospheres, driving maintenance costs. This fixture meets NEC/CEC IECEx/ATEX standards, IP66 ingress protection, and NEMA 4X enclosures for safe hazardous-location operation. Designed for energy efficiency and a long service life, it supports reliable outdoor and indoor hazardous-area lighting while reducing total cost of ownership. With a 320 W equivalent output and 11000 lumens at 84 W, it delivers fast ROI on site lighting upgrades. Installation is streamlined by a 3/4 inch entry and yoke mount, with a rugged die-cast aluminum housing and a polycarbonate lens for impact resistance.

Product Information

Extended Description

FMVA11LCY-UNV34-76-S903 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, Cool white, Dimmable driver, 3/4" entry, 320W equivalent, Polycarbonate lens, 11000 lumens, 144 lm/W, Die cast aluminum, Yoke mount, 347-480 Vac, 84W, 7x6 optics
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA11LCY-UNV34-76-S903
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
UPC
662276887305
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
11000
Lumens per watt
144
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Polycarbonate
Wattage
84 W
Dimming
Dimmable driver
Equivalent luminaire
320W
Power factor
> 0.90
Material
Die cast aluminum
The FMVA11LCY-UNV34-76-S903 LED floodlight provides high-output illumination at 11000 lumens while drawing only 84 watts, delivering significant energy savings and lowering operating costs on large sites. This efficiency translates to reduced energy bills and extended lamp life, especially important in remote or hard-to-access installations where maintenance trips are costly. The fixture's IP66 rating and NEMA 4X enclosure give robust protection against dust, water, and corrosive environments, reducing downtime and extending service intervals in harsh industrial settings. A dimmable driver compatible with 347-480 VAC power and 50/60 Hz operation enables site-wide dimming strategies, delivering energy savings and improved light control for task-critical zones. The 7x6 optical distribution paired with a polycarbonate lens ensures uniform coverage and long-lasting performance, minimizing rework during retrofits in existing facilities. Die-cast aluminum housing, 3/4" entry, and yoke mounting simplify installation and retrofit projects, lowering labor costs and enabling quick deployment. With a total length of 15.5 in, height of 12 in, and width of 7 in, the unit fits tight retrofit spaces while maintaining durable construction for demanding environments.

Get a Quick Quote for a Eaton Crouse-Hinds FMVA11LCY-UNV34-76-S903

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds FMVA11LCY-UNV34-76-S903? Enquire Now

FAQs

This luminaire is designed for hazardous/classified locations and carries NEC/CEC IECEx/ATEX certification with IP66 ingress protection and a NEMA 4X enclosure. It supports 347–480 VAC at 50/60 Hz and uses a 3/4" entry with a yoke mount, simplifying installation in Class I Division 2, Zone 2, and other hazardous environments.
Key specs include 11,000 lumens at 84 W (approximately 144 lm/W), cool white color temperature, 7x6 optical distribution, polycarbonate lens, and a dimmable driver. It operates on 347–480 VAC and 50/60 Hz, delivering reliable, high-visibility illumination for demanding industrial sites.
Yes. The FMVA11LCY-UNV34-76-S903 is certified for hazardous/classified locations, including Class I Division 2 and Zone 2, with IP66 protection and a NEMA 4X enclosure, ensuring safe operation in explosive atmospheres and harsh environments.
The fixture offers a 3/4" entry and a yoke mounting system, enabling straightforward retrofit into existing conduits and mounting brackets. Its die-cast aluminum housing and polycarbonate lens resist impact and corrosion, making it suitable for outdoor racks, yards, and industrial facilities with restricted installation space.
The LED design provides long life with reduced maintenance, lower energy consumption, and dimmable control to match site demand. With 11000 lumens at 84 W and a rugged build, customers typically see lower maintenance costs, fewer replacements, and faster payback in hazardous-area lighting upgrades.
