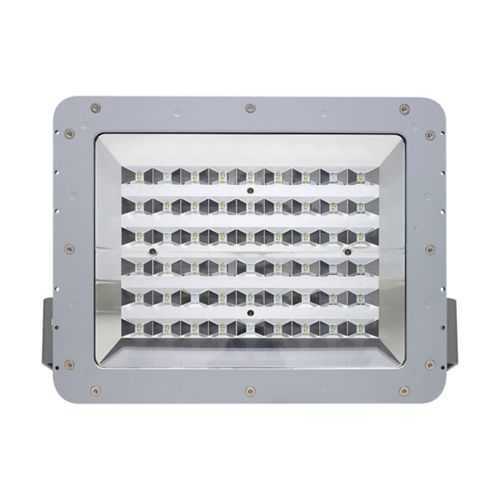

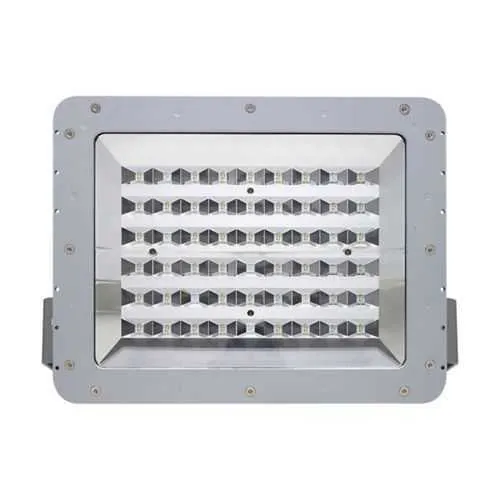

Eaton FMVA13LCY-UNV1-76-M20 LED Floodlight - IP66
Part Number: FMVA13LCY-UNV1-76-M20
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA13LCY-UNV1-76-M20
Category
Quick Summary
Eaton FMVA13LCY-UNV1-76-M20 LED floodlight is designed to illuminate hazardous locations with robust, high-output performance. In challenging environments, unreliable lighting and frequent maintenance disrupt uptime and safety. This luminaire is certified for Hazardous/Classified Locations with NEC/CEC IECEx/ATEX approvals, IP66 ingress protection, and a NEMA 4X rating, ensuring resilience and regulatory compliance. Its dimmable driver and universal input enable seamless integration with existing controls while delivering 13,000 lumens at 95W. That efficiency translates to lower operating costs and longer service intervals for industrial facilities with demanding lighting requirements.
Product Information
Extended Description
FMVA13LCY-UNV1-76-M20 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, Cool white, Dimmable driver, 20mm entry, 400W equiv, Heat and impact resistant glass lens, 13000 lumens, 143 lm/W, Die cast aluminum, Yoke mount, 100-277 Vac, 108-250 Vdc, 95W, 7x6 optics
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA13LCY-UNV1-76-M20
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
UPC
662276879560
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
13000
Lumens per watt
143
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
20 mm
Lens material
Heat and impact resistant glass
Wattage
95W
Dimming
Dimmable driver
Equivalent luminaire
400W
Power factor
> 0.90
Material
Die cast aluminum
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens brochure
Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens catalog page
Champ FMVA LED Hazardous Area Floodlights UL certification
Champ FMVA LED Hazardous Area Floodlights UL certification
Champ FMVA LED Hazardous Area Floodlights UL certification
Champ FMVA LED Hazardous Area Floodlights UL certification
Champ FMVA LED Hazardous Area Floodlights UL certification
Champ FMVA LED Hazardous Area Floodlights UL certification
IF 1889 - Champ FMVA/PFMA LED Floodlight Driver Replacement
IF 1889 - Champ FMVA/PFMA LED Floodlight Driver Replacement
Eaton Specification Sheet - FMVA13LCY-UNV1-76-M20
Feature: High-output LED delivering 13,000 lumens at 95W with a lumen-per-watt of 143. Business Impact: Reduces energy consumption and lowers ongoing operating costs while maintaining bright, uniform coverage. Application: Large outdoor areas in hazardous locations such as refineries, chemical plants, and outdoor yards. Feature: Hazardous location compliance including NEC/CEC IECEx/ATEX, IP66, and NEMA 4X. Business Impact: Ensures regulatory compliance and rugged reliability in corrosive, dusty, and wet environments, minimizing compliance risk and downtime. Application: Class I Division 2, Zone 2, Class II, and Class III spaces. Feature: Universal input and dimmable driver (100-277 Vac, 108-250 Vdc). Business Impact: Simplifies integration with existing controls and power systems, reducing wiring complexity and installation time. Application: Retrofit projects and new builds with mixed power environments. Feature: Die-cast aluminum housing and heat/impact resistant glass lens. Business Impact: Improves durability against vibration, temperature swings, and mechanical impacts, extending the maintenance interval. Application: Outdoor mounts on walkways, platforms, and perimeter lighting. Feature: 7x6 optical distribution with yoke mounting. Business Impact: Delivers tailored illumination patterns and straightforward installation, ensuring consistent coverage across critical zones. Application: Hazardous-area perimeters, loading docks, and outdoor work areas.
Get a Quick Quote for a Eaton Crouse-Hinds FMVA13LCY-UNV1-76-M20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FMVA13LCY-UNV1-76-M20?
Enquire Now
FAQs
Plan for a sturdy surface and secure mounting using the yoke mount provided. Ensure the 20 mm entry is protected with an appropriate gland, and verify ingress protection by sealing all cable entries. Orientation should account for the 7x6 optic distribution to maximize coverage while maintaining accessibility for maintenance and dimming control wiring.
Key specs include 13,000 lumens at 95W with 143 lm/W efficiency, a universal input of 100-277 Vac or 108-250 Vdc, and 50/60 Hz. It features a dimmable driver and a 7x6 optical distribution to ensure uniform coverage while complying with IP66 and NEMA 4X hazards ratings.
Yes. It is rated for Hazardous/Classified Locations with NEC/CEC IECEx/ATEX certifications, IP66 ingress protection, and a NEMA 4X enclosure, making it appropriate for oil & gas, chemical processing, and other demanding sites where reliable hazardous-location lighting is required.
The FMVA series aligns with NEC/CEC and IECEx/ATEX standards and has IP66 and NEMA 4X ratings, plus hazard classifications for Class I Division 2, Zone 2, Class II Division 1, and Class III. This combination supports regulatory compliance, safe operation in harsh environments, and streamlined site approvals.
The LED design delivers long life with reduced maintenance, while the dimmable driver and efficient 95W load lower energy costs. With 13,000 lumens of bright, reliable illumination and durable construction, facilities can extend service intervals, reduce replacement outages, and improve safety metrics across shift operations.
