FMVA15LWY-UNV1-76 FMVA LED floodlight - IP66 Hazardous

Part Number: FMVA15LWY-UNV1-76
FMVA15LWY-UNV1-76
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA15LWY-UNV1-76
Category

Quick Summary

FMVA LED floodlight provides high-output illumination for hazardous locations in outdoor facilities and industrial sites. Downtime in dangerous environments drives maintenance costs and frequent lamp changes, which this luminaire helps minimize through a robust, long-life design. This unit carries critical certifications such as NEC/CEC IECEx/ATEX, IP66 ingress protection, and NEMA 4X ruggedness, ensuring safe operation in Class I Division 2 and Zone 2 locations. By offering universal voltage and a dimmable driver, it integrates with modern control schemes while delivering energy efficiency and reduced total cost of ownership for mission-critical outdoor lighting applications.

Product Information

Extended Description

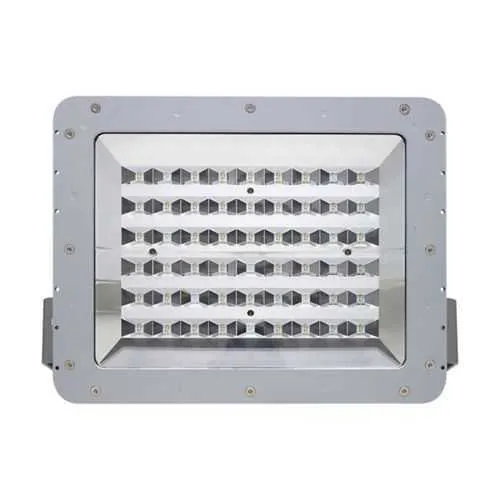

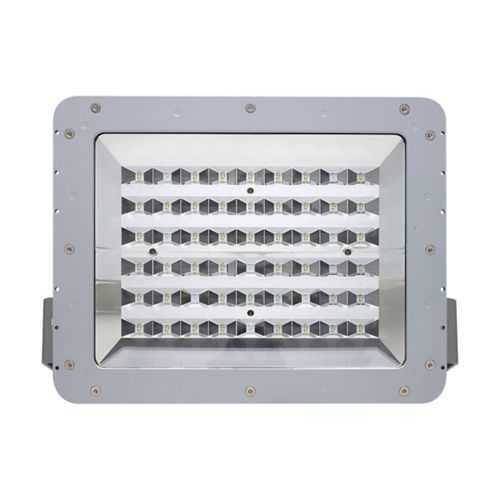

FMVA15LWY-UNV1-76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, Warm white, Dimmable driver, 3/4" entry, 500W equiv, Heat and impact resistant glass lens, 15000 lumens, 140 lm/W, Die cast alum, Yoke mount, 100-277 Vac, 108-250 Vdc, 113W, 7x6 optics
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA15LWY-UNV1-76
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
31.8 lb
UPC
662276888623
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC IECEx/ATEX
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
15000
Lumens per watt
140
Color temperature
Warm white
Mounting Method
Yoke
Voltage rating
100-277 Vac, 108-250 Vdc
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Wattage
113W
Dimming
Dimmable driver
Equivalent luminaire
500W
Power factor
> 0.90
Material
Die cast aluminum
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series Champ FMVA LED Floodlights - 9,000 to 15,000 lumens catalog page Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification IF 1889 - Champ FMVA/PFMA LED Floodlight Driver Replacement IF 1889 - Champ FMVA/PFMA LED Floodlight Driver Replacement Eaton Specification Sheet - FMVA15LWY-UNV1-76
High lumen output with efficient 113 W operation delivers 15000 lumens at about 140 lm/W, enabling fewer fixtures to achieve the same coverage and reducing capital and ongoing energy costs. This hazardous-location floodlight features a die-cast aluminum housing and heat- and impact-resistant glass lens, improving durability in outdoor and industrial environments and lowering maintenance intervals. The 7x6 optical distribution provides broad, uniform coverage for yards, access roads, and plant exteriors, while a dimmable driver supports integration with occupancy sensors and lighting controls for enhanced energy savings. Compatibility with 100-277 VAC and 108-250 VDC simplifies retrofits and new installations, and its IP66/NEMA 4X rating ensures reliable operation in harsh weather and corrosive environments. The 3/4" entry and yoke mounting offer flexible installation options for varied site geometries.

Get a Quick Quote for a Eaton Crouse-Hinds FMVA15LWY-UNV1-76

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds FMVA15LWY-UNV1-76? Enquire Now

FAQs

FMVA15LWY-UNV1-76 uses a Yoke mounting method with a 3/4 inch entry, allowing flexible attachment to standard mounting hardware and compatible brackets used in outdoor and industrial settings.
Yes. It carries NEC/CEC IECEx/ATEX certifications with IP66 protection and NEMA 4X rating, enabling safe operation in Class I Division 2 and Zone 2 environments.
The luminaire operates at 100-277 VAC or 108-250 VDC, 50/60 Hz, with a dimmable driver to support lighting controls and energy-saving strategies.
It delivers 15,000 lumens at approximately 140 lm/W, with a 113 W power draw, providing bright, efficient illumination for large outdoor areas.
The unit features heat- and impact-resistant glass, a durable die-cast aluminum housing, IP66 protection, and a long-life LED engine to reduce replacement cycles and service calls.
