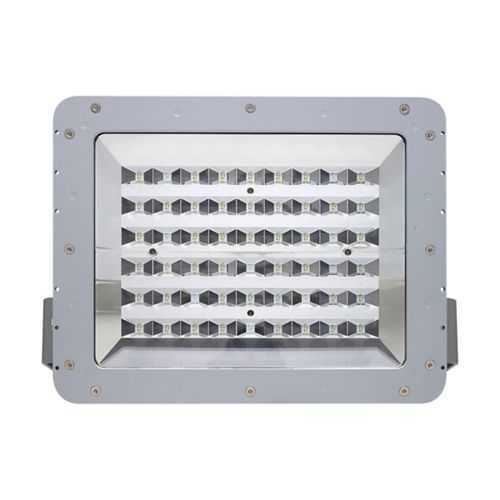

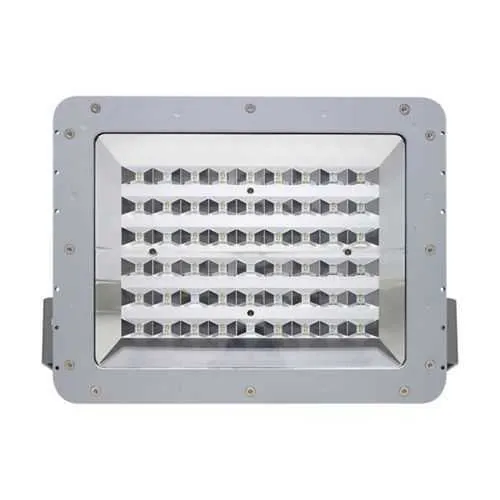

Eaton FMVA20LCY/UNV1 76 LED Floodlight - IP66

The FMVA20LCY/UNV1 LED floodlight delivers high lumen output with excellent efficiency, reducing the number of fixtures required to illuminate large industrial areas and lowering installation and energy costs. With 20,000 lumens and 115 lm/W from a 177W LED, it provides reliable performance across 100-277 VAC and 50/60 Hz, enabling seamless integration with existing power systems and dimmable operation for ambient control in variable workloads. The die-cast aluminum housing and diffused glass lens protect optics in demanding environments, while the 7x6 optical distribution ensures broad, uniform coverage for yard lighting, platforms, and outdoor facilities. The IP66 and NEMA 4X ratings guarantee enclosure integrity against dust, water, and harsh chemicals, reducing maintenance cycles and extending service life. The rugged design supports hazardous-location compliance, including Class I Zone 2 and Class II Division 1 classifications, giving engineers confidence in regulatory conformity while simplifying procurement and install planning. Compatibility with a yoke mounting and a standard 3/4" entry enables flexible positioning and straightforward retrofitting with existing fixtures, delivering quick ROI through efficiency gains and reduced downtime. Industry context shows that LED floodlights in hazardous locations outperform legacy HID luminaires in total cost of ownership, especially when combined with dimmable drivers and long-life materials.
