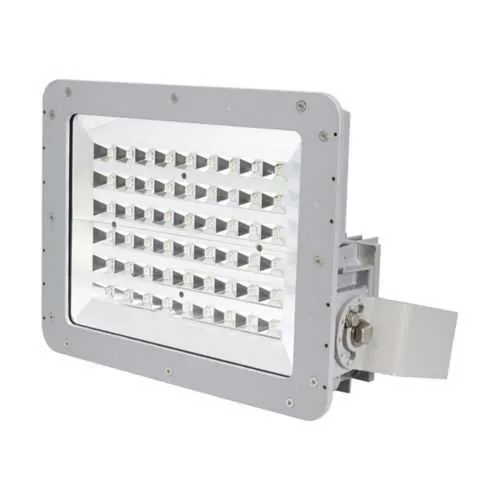

Eaton FMVA20LCY/UNV34 76 LED Floodlight - IP66 Hazardous

Part Number: FMVA20LCY/UNV34 76
FMVA20LCY/UNV34 76
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA20LCY/UNV34 76
Category

Quick Summary

FMVA20LCY/UNV34 76 LED floodlight provides high-output illumination for hazardous-area applications in industrial facilities. Maintenance teams struggle with lighting that is both compliant and reliable in demanding environments, where downtime can halt production. This fixture supports NEC/CEC hazardous location ratings, including Class I, Division 2 and Zone 2, and carries IP66 ingress protection with a NEMA 4X enclosure, ensuring weather and impact resistance. Designed for retrofit and new builds alike, it features a dimmable driver and a 347–480 VAC input range, delivering up to 20,000 lumens at 115 lm/W while reducing energy use and maintenance costs.

Product Information

Extended Description

FMVA20LCY/UNV34 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 0.52A, Cool white, Dimmable driver, 3/4" entries, 600-750W equiv, Heat and impact resistant glass lens, 20,000 lm, 115 lm/W, Die cast alum, 7x6 optics, Gray paint, 347-480 Vac, 177W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA20LCY/UNV34 76
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
UPC
662276648555
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
20000
Lumens per watt
115
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
177W
Dimming
Dimmable driver
Equivalent luminaire
600-750W
Power factor
> 0.90
Amperage Rating
0.52 A
Material
Die cast aluminum
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights Crouse-Hinds series Champ FMVA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ FMVA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ FMVA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ FMVA LED Hazardous Area Floodlights Canadian certification Champ FMVA LED Hazardous Area Floodlights Canadian certification Champ FMVA LED Hazardous Area Floodlights Canadian certification Champ FMVA LED Hazardous Area Floodlights Canadian certification Champ FMVA LED Hazardous Area Floodlights Canadian certification Champ FMVA LED Hazardous Area Floodlights Canadian certification IF 1883 - Champ FMVA LED Floodlight IF 1883 - Champ FMVA LED Floodlight IF 1883 - Champ FMVA LED Floodlight Eaton Specification Sheet - FMVA20LCY/UNV34 76
High-output LED floodlight with 20,000 lumens and 177W delivers broad coverage and reduces the number of fixtures required for large industrial areas, cutting installation time and total cost of ownership. The 347-480 VAC input and 50/60 Hz compatibility support versatile site power, simplifying upgrades across multiple facilities and minimizing spare-part inventories. A dimmable driver enables optimized energy use and better lighting control for zoning or shift-based operating needs, delivering measurable energy savings in hazardous locations. Die-cast aluminum housing with heat and impact resistant glass lens provides rugged durability, extending service life in harsh environments. IP66 and NEMA 4X protection guard against dust, water, and corrosive exposure, reducing maintenance and downtime. The 7x6 optical distribution maximizes efficiency and coverage, while 3/4" entry and Yoke mounting streamline installation and retrofit compatibility. Additional benefits include a high power factor (>0.90) and a low amperage draw (0.52 A) for stable electrical performance.

Get a Quick Quote for a Eaton Crouse-Hinds FMVA20LCY/UNV34 76

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds FMVA20LCY/UNV34 76? Enquire Now

FAQs

The FMVA20LCY/UNV34 76 LED floodlight supports a broad power range of 347–480 VAC at 50/60 Hz, includes 3/4" entry fittings, and uses a Yoke mounting for flexible alignment. Its IP66 and NEMA 4X enclosure design makes it suitable for outdoor and harsh indoor environments, including hazardous locations per NEC/CEC. This combination simplifies retrofits and new-build installations while maintaining regulatory compliance.
The fixture is designed for hazardous/classified locations and carries NEC hazardous ratings including Class I, Division 2 and Zone 2, ensuring electrical safety in restricted areas. Combine that with IP66 ingress protection and a rugged NEMA 4X enclosure, and it remains operational under challenging conditions, reducing risk and supporting compliance audits in petrochemical and processing facilities.
With 20,000 lumens at 177W and a dimmable driver, the luminaire enables site-wide lighting control and energy optimization, lowering utility costs. The long LED life and rugged housing reduce replacement cycles and maintenance visits, while the high PF (>0.90) supports efficient electrical system performance, translating to lower total cost of ownership over the fixture’s service life.
Yes, the FMVA20LCY/UNV34 76 features a dimmable driver, allowing operators to adjust lighting levels based on process needs, occupancy, or safety protocols. Dimming reduces energy consumption during low-activity periods and can extend lamp life, which lowers maintenance costs and improves overall system efficiency in hazardous-area facilities.
The unit uses a 3/4" entry and Yoke mounting, which simplifies post-installation aiming and alignment across curved or elevated mounting surfaces. The die-cast aluminum housing, heat- and impact-resistant glass, and 7x6 optical distribution enable stable, uniform illumination with straightforward replacement in rugged environments, minimizing downtime during upgrades or replacements.
