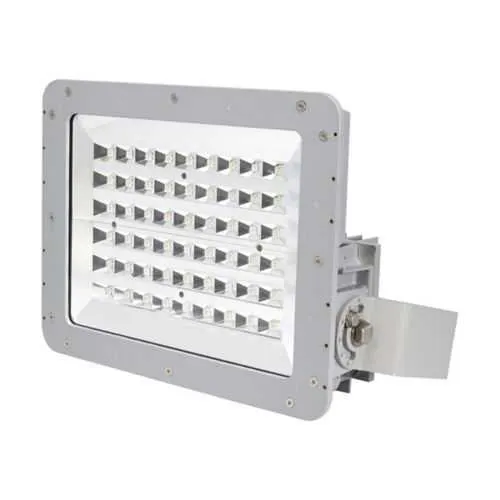

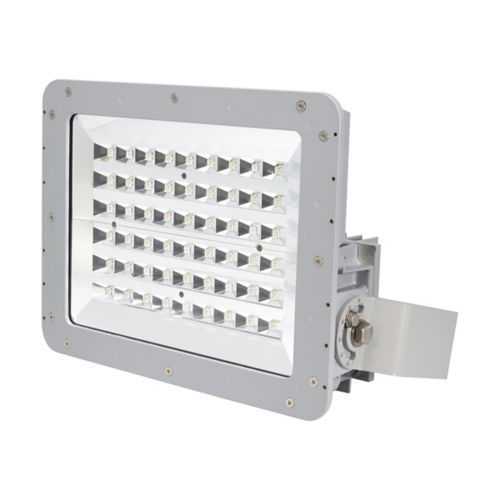

Eaton FMVA25LCY/UNV34 LED Floodlight - IP66 rated

Part Number: FMVA25LCY/UNV34 76
FMVA25LCY/UNV34 76
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA25LCY/UNV34 76
Category

Quick Summary

FMVA25LCY/UNV34 LED floodlight is built to deliver high-output illumination for hazardous-location industrial projects. Maintenance teams struggle with unreliable lighting in harsh environments, where frequent replacements eat into uptime and budgets. It carries IP66 protection, a NEMA 4X enclosure, and NEC/CEC compliance for hazardous or classified locations, supporting safe, code-compliant operation. With a dimmable driver and an efficiency of 117 lm/W delivering about 25,000 lumens at 217W, it enables meaningful energy savings and easier control across shifts. Ideal for oil/gas, chemical processing, and mining facilities, the luminaire reduces maintenance cycles while enhancing visibility and site safety.

Product Information

Extended Description

FMVA25LCY/UNV34 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 0.63A, Cool white, Dimmable driver, 3/4" entries, 750-1000W equiv, Heat and impact resistant glass lens, 25,000 lm, 117 lm/W, Die cast alum, 7x6 optics, Gray paint, 347-480 Vac, 217W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA25LCY/UNV34 76
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
38 lb
UPC
662276635470
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
25000
Lumens per watt
117
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
217W
Dimming
Dimmable driver
Equivalent luminaire
750-1000W
Power factor
> 0.90
Amperage Rating
0.19A
Material
Die cast aluminum
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights Crouse-Hinds series Champ FMVA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ FMVA LED Floodlights - 20,000 to 50,000 lumens brochure Crouse-Hinds series Champ FMVA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification IF 1889 - Champ FMVA/PFMA LED Floodlight Driver Replacement IF 1889 - Champ FMVA/PFMA LED Floodlight Driver Replacement IF 1889 - Champ FMVA/PFMA LED Floodlight Driver Replacement Eaton Specification Sheet - FMVA25LCY/UNV34 76
LED technology and high-output lumens drive operational efficiency. The FMVA25LCY/UNV34 delivers 25,000 lumens at 117 lm/W from a 217W LED source, enabling fewer fixtures to meet large-area lighting needs in hazardous zones. In refinery yards, mining pads, and chemical plants, this means lower installed cost per lumen and improved coverage with consistent color and performance. Dimmable driver capability translates to precise lighting control and energy savings. With a dimmable driver compatible with 347-480 Vac and 50/60 Hz operation, facility managers can tailor brightness to shifts and tasks, reducing energy consumption without sacrificing safety. Optical distribution of 7x6 focuses light where it’s needed, reducing glare and spill while delivering broad, uniform coverage for cranes, vehicles, and pedestrians. The rugged enclosure, IP66 and NEMA 4X protections, and NEC/CEC compliance ensure long-term reliability in harsh environments. Installation is straightforward with 3/4" entries and a yoke mounting system, while the die-cast aluminum housing and heat- and impact-resistant glass lens resist corrosion and impact. These attributes translate to lower maintenance costs, fewer replacements, and faster project ROI for oil, gas, chemical, and mining facilities.

Get a Quick Quote for a Eaton Crouse-Hinds FMVA25LCY/UNV34 76

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds FMVA25LCY/UNV34 76? Enquire Now

FAQs

The FMVA25LCY/UNV34 uses a Yoke mounting method and features 3/4" entry sizes for conduit connections. Its overall dimensions (15.5 in length, 12 in height, 7 in width) and weight (38 lb) support secure installation on walls, poles, or fixtures in hazardous locations. The flexible mounting and conduit options simplify alignment and wiring in industrial facilities.
Operating at 347-480 Vac with a 50/60 Hz frequency, the luminaire consumes 217 W and delivers 25,000 lumens with a power factor > 0.90. It is IP66 rated and NEMA 4X, and it carries NEC/CEC compliance for Hazardous/Classified Locations (Class I Division 2; Zone 2; Class II Division 1), ensuring safe use in challenging environments.
Yes. The fixture is designed for Hazardous/Classified Locations with Class I Division 2 and Zone 2, as well as Class II Division 1, meeting NEC/CEC standards. IP66/NEMA 4X protection plus a rugged die-cast aluminum housing makes it well-suited for oil & gas sites, chemical plants, and mining operations where reliable, compliant lighting is critical.
With 25,000 lumens at 117 lm/W and a dimmable driver, the FMVA25LCY/UNV34 reduces energy consumption and enables tailored lighting levels across shifts, lowering utility costs. The rugged build and long LED life minimize replacement cycles, lowering maintenance labor and parts costs in harsh environments—leading to a favorable ROI in demanding facilities.
Technical literature is available in Eaton’s resources, including 3D design packages, brochures, catalog pages, UL/IEC certification reports, installation sheets, and specification sheets. Key documents cover hazardous-location compliance, DLC listings, and installation guidance to support procurement, engineering reviews, and regulatory approvals.
