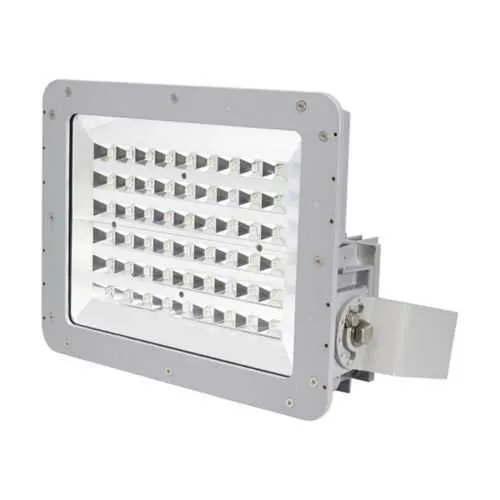

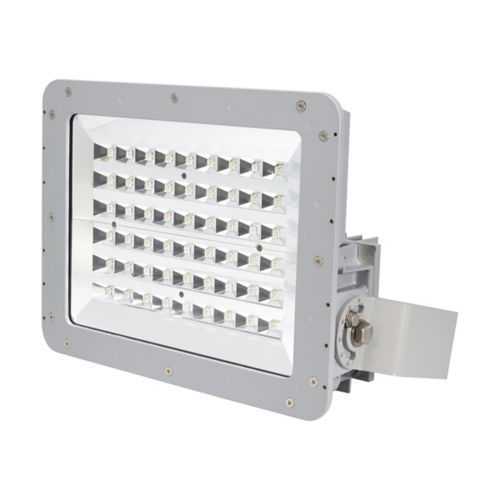

Eaton Crouse-Hinds FMVA25LWY/UNV34 76 LED Floodlight - IP66

Part Number: FMVA25LWY/UNV34 76
FMVA25LWY/UNV34 76
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA25LWY/UNV34 76
Category

Quick Summary

FMVA LED floodlight delivers high-output illumination for hazardous-area facilities such as chemical plants. Maintenance teams often struggle with unreliable fixtures in severe environments, and this fixture minimizes field failures with a rugged seal and heat- and impact-resistant glass lens. It carries IP66 and NEMA 4X protection along with NEC hazardous-location ratings (Class I, Division 2; Zone 2; Class II, Division 1) to meet demanding industrial codes. With 347–480 VAC operation, a dimmable driver, and 25,000 lumens at 117 lm/W, it delivers reliable performance while reducing energy costs. Designed for large outdoor areas and harsh environments, it supports efficient installation across multiple sites while improving overall uptime and safety.

Product Information

Extended Description

FMVA25LWY/UNV34 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 0.63A, Warm white, Dimmable driver, 3/4" entries, 750-1000W equiv, Heat and impact resistant glass lens, 25,000 lm, 117 lm/W, Die cast alum, 7x6 optics, Gray paint, 347-480 Vac, 217W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA25LWY/UNV34 76
Product Length/Depth
15.5 in
Product Height
12 in
Product Width
7 in
Product Weight
32.5 lb
UPC
662276710535
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
25000
Lumens per watt
117
Color temperature
Warm white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
217W
Dimming
Dimmable driver
Equivalent luminaire
750-1000W
Power factor
> 0.90
Amperage Rating
0.19A
Material
Die cast aluminum
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series Champ FMVA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ FMVA LED Hazardous Area Floodlights IECEx Certificate of Conformity Champ FMVA LED Hazardous Area Floodlights IECEx Certificate of Conformity Champ FMVA LED Hazardous Area Floodlights IECEx Certificate of Conformity Champ FMVA LED Hazardous Area Floodlights IECEx Certificate of Conformity Champ FMVA LED Hazardous Area Floodlights IECEx Certificate of Conformity Champ FMVA LED Hazardous Area Floodlights IECEx Certificate of Conformity IF 1883 - Champ FMVA LED Floodlight IF 1883 - Champ FMVA LED Floodlight IF 1883 - Champ FMVA LED Floodlight Eaton Specification Sheet - FMVA25LWY/UNV34 76
Feature: 25,000 lumen LED output with 117 lm/W efficacy → Business Impact: High-visibility illumination reduces accident risk and supports faster operations in outdoor yard and plant areas. Application: Chemical plants, refineries, outdoor staging and load zones. Feature: 347–480 VAC universal input with 50/60 Hz → Business Impact: Simplified procurement and faster commissioning across international facilities. Application: Multi-site deployments with varying power standards. Feature: Dimmable driver → Business Impact: Energy management and glare control enable precise lighting schedules and reduced operating costs. Application: Perimeter lighting and work zones requiring adjustable illumination. Feature: 7x6 optical distribution → Business Impact: Targeted beam pattern delivers effective coverage with fewer fixtures, lowering installation and maintenance costs. Application: Large exterior flood lighting and wall-mounted uplights. Feature: Die-cast aluminum housing with gray finish → Business Impact: Superior ruggedness and corrosion resistance for harsh environments, extending service life. Application: Outdoor hazardous-location installations in chemical and oil & gas markets. Feature: IP66 and NEMA 4X protection → Business Impact: Water, dust, and corrosion resistance minimizes maintenance intervals and downtime. Application: Hazardous locations, washdown areas, outdoor enclosures. Feature: Heat- and impact-resistant glass lens → Business Impact: Enhanced durability reduces replacement cycles in high‑impact zones. Application: Areas with mechanical exposure or heavy traffic. Feature: Yoke mounting → Business Impact: Flexible installation angles and straightforward retrofit with compatible hardware. Application: Poles, structures, and elevated floodlight positions. Feature: 217 W input with 25,000 lm output → Business Impact: High lighting power with efficient energy use lowers total cost of ownership. Application: Large outdoor areas that demand bright, reliable coverage. Feature: Hazardous-location rating and NEC/CEC compliance → Business Impact: Regulatory alignment minimizes risk and streamlines approvals. Application: Class I, Division 2, Zone 2 and Class II, Division 1 environments across jurisdictions.

Get a Quick Quote for a Eaton Crouse-Hinds FMVA25LWY/UNV34 76

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds FMVA25LWY/UNV34 76? Enquire Now

FAQs

What mounting and wiring prerequisites should I plan for? The FMVA25LWY/UNV34 76 is designed for Class I, Division 2 and Zone 2 environments, with a Yoke mounting and 3/4 inch entries. Use compliant wiring methods for 347–480 VAC, account for 50/60 Hz operation, and confirm IP66/NEMA 4X enclosure integrity during outdoor or washdown service to maintain compliance and reliability.
The luminaire runs on 347–480 VAC at 50/60 Hz, draws about 0.19 A, and consumes 217 W while delivering 25,000 lumens (≈117 lm/W). It features a dimmable driver and a power factor greater than 0.90, which supports energy management, reduced energy costs, and compatibility with building automation or dimming schemes.
Yes. With IP66 and NEMA 4X protection, heat- and impact-resistant glass, and a die-cast aluminum housing, this floodlight is engineered for outdoor hazardous-area deployments. Its rugged construction, combined with 347–480 VAC operation and 25,000 lm output, provides reliable night-time visibility for yard operations, loading docks, and vehicle movement in tough environments.
The fixture supports NEC/CEC standards and hazardous-location ratings (Class I Division 2, Zone 2; Class II Division 1). It carries NEMA 4X and IP66 protection, ensuring compliance for heavy-duty industrial and hazardous environments. IECEx/ATEX-related documentation is available via the manufacturer’s certification resources, aiding global project approvals.
A long service life paired with a high‑efficacy LED engine reduces replacement cycles and maintenance visits. The dimmable driver enables adaptive lighting strategies, improving energy savings, while rugged construction minimizes downtime in hazardous settings. For facilities with extensive outdoor lighting, this can translate to lower total cost of ownership and improved uptime.
