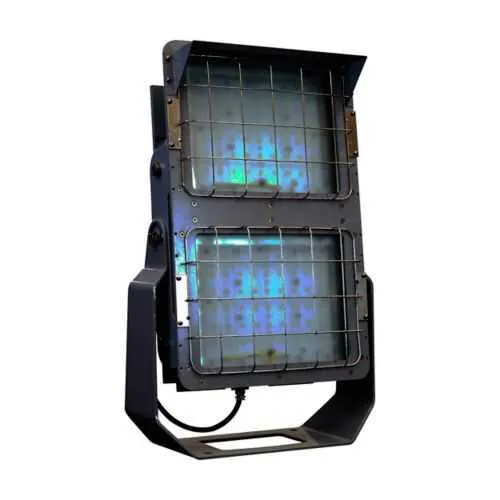

Eaton FMVA40LCY/UNV34 LED floodlight - IP66 4X

Part Number: FMVA40LCY/UNV34 76 S891
FMVA40LCY/UNV34 76 S891
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA40LCY/UNV34 76 S891
Category

Quick Summary

FMVA40LCY/UNV34 76 S891 LED floodlight from Eaton Crouse-Hinds delivers high-output illumination for hazardous locations. Facilities often struggle with maintaining reliable lighting in harsh environments, meeting regulatory requirements, and controlling energy costs. It carries IP66, NEMA 4X, and hazardous-location approvals (Class I/II, Zone 2) to support safe, compliant operation in demanding industrial settings. The dimmable driver, 40,000 lumens, and 119 lm/W efficiency help reduce maintenance cycles and energy spend, while delivering consistent performance across 347–480 Vac power networks.

Product Information

Extended Description

FMVA40LCY/UNV34 76 S891 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA high lumen LED floodlight, 1.24A, Cool white, Dimmable driver, 3/4" entries, 1500W+ equiv, Diffused glass lens, 40,000 lumens, 119 lm/W, Die cast aluminum, 7x6 optics, Gray paint, 347-480 Vac, 340W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA40LCY/UNV34 76 S891
Product Length/Depth
15.35 in
Product Height
24 in
Product Width
17.28 in
Product Weight
32.5 lb
UPC
662276661714
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
40000
Lumens per watt
119
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Diffused glass
Finish color
Gray
Wattage
340 W
Dimming
Dimmable driver
Equivalent luminaire
1500W+
Power factor
> 0.90
Amperage Rating
1.24 A
Material
Die cast aluminum
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series Champ FMVA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ FMVA LED Hazardous Area Floodlights Canadian certification Champ FMVA LED Hazardous Area Floodlights Canadian certification Champ FMVA LED Hazardous Area Floodlights Canadian certification Champ FMVA LED Hazardous Area Floodlights Canadian certification Champ FMVA LED Hazardous Area Floodlights Canadian certification Champ FMVA LED Hazardous Area Floodlights Canadian certification IF 1842 - Champ FMVA40L/50L LED Floodlights IF 1842 - Champ FMVA40L/50L LED Floodlights IF 1842 - Champ FMVA40L/50L LED Floodlights Eaton Specification Sheet - FMVA40LCY/UNV34 76 S891
High-lumen, energy-conscious design drives fewer fixtures for large spaces, reducing both install time and total cost of ownership. With 40,000 lumens, 119 lm/W efficiency, a 340 W draw, and a dimmable driver, you gain better lighting density and energy savings across outdoor yards and plant perimeters. The rugged IP66 and NEMA 4X enclosure plus hazardous-location approvals (Class I/II, Zone 2) protect against dust, water jets, and corrosive environments, delivering reliable operation with lower maintenance in oil, gas, and chemical facilities. Die-cast aluminum housing, diffused glass lens, and 7x6 optical distribution ensure durable, uniform illumination with minimized glare in high-traffic areas. Installation is simplified by a Yoke mounting system and 3/4" entry points, enabling quick retrofits or new builds. The fixture’s PF >0.90 and 347–480 Vac input support integration with modern control systems and energy-management programs, delivering measurable lifecycle cost reductions.

Get a Quick Quote for a Eaton Crouse-Hinds FMVA40LCY/UNV34 76 S891

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds FMVA40LCY/UNV34 76 S891? Enquire Now

FAQs

FMVA40LCY/UNV34 is designed for 347–480 Vac, 50/60 Hz, with a documented amperage of 1.24 A and a dimmable driver. It supports typical industrial power systems and enables integration with building controls and energy-management strategies while maintaining high luminous efficacy (40,000 lm at 119 lm/W). This makes it suitable for large outdoor areas, open yards, and high-ceiling industrial spaces.
The FMVA40LCY/UNV34 features IP66 protection and a NEMA 4X enclosure, plus hazardous-location approvals including Class I/II and Zone 2 classifications. It is designed for Hazardous/Classified Locations with NEC/CEC standards compliance, supporting safe operation in oil & gas, chemical processing, and other demanding environments.
The luminaire delivers 40,000 lumens with an efficiency of 119 lm/W, drawing 340 W. This combination provides strong illumination with excellent energy efficiency, reducing fixture counts and energy use in large outdoor or industrial spaces while maintaining good color rendering with cool white light.
It uses a Yoke mounting method with 3/4" entry size, enabling straightforward wiring and aiming adjustments. The die-cast aluminum housing and diffused glass lens support durable outdoor installation, while the rugged finish offers corrosion resistance in demanding environments.
Best suited for hazardous-location outdoor lighting, refinery yards, chemical plants, and heavy industry where IP66/NEMA 4X protection is required. The combination of high lumen output, energy efficiency, dimmable control, and long-term durability yields lower maintenance, fewer replacements, and improved safety, delivering a favorable return on investment in harsh industrial sites.
