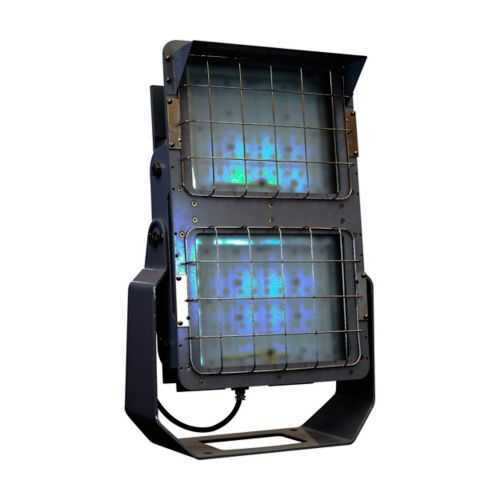

Eaton FMVA50LCY/UNV1 33 LED Floodlight - IP66

Part Number: FMVA50LCY/UNV1 33
FMVA50LCY/UNV1 33
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA50LCY/UNV1 33
Category

Quick Summary

The Eaton FMVA50LCY/UNV1 33 LED floodlight provides rugged, high-output illumination for hazardous locations. For engineers faced with uptime and compliance challenges, this luminaire helps reduce maintenance cycles and risk exposure by combining a durable die-cast aluminum housing with proven sealing. It carries Hazardous/Classified Locations ratings, IP66 ingress protection, and a NEMA 4X enclosure, ensuring operation in harsh environments from chemical plants to outdoor substations. With universal 100–277 VAC support and a dimmable driver, it also aligns with energy-management goals and retrofit projects without sacrificing safety or performance. In short, it delivers reliable, compliant lighting that minimizes total cost of ownership while boosting site safety and productivity.

Product Information

Extended Description

FMVA50LCY/UNV1 33 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 4.14A, Cool white, Dimmable driver, 3/4", 1500W+ equiv, Heat and impact resistant glass lens, 50,000 lm, 126 lm/W, Die cast alum, 3x3 optics, Gray paint, 100-277 Vac, 400W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA50LCY/UNV1 33
Product Length/Depth
15.35 in
Product Height
24 in
Product Width
17.28 in
Product Weight
32.5 lb
UPC
662276816367
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 2 Class I, Division 2 Class II, Division 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
50000
Lumens per watt
126
Color temperature
Cool white
Mounting Method
Yoke
Voltage rating
100-277 Vac
Frequency rating
50/60 Hz
Optical distribution
3x3
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
2 x 8.7W
Dimming
Dimmable driver
Equivalent luminaire
1500W+
Power factor
> 0.90
Amperage Rating
4.14 A
Material
Die cast aluminum
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series Champ FMVA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ FMVA LED Hazardous Area Floodlights EC-Declaration of Conformity Champ FMVA LED Hazardous Area Floodlights EC-Declaration of Conformity Champ FMVA LED Hazardous Area Floodlights EC-Declaration of Conformity Champ FMVA LED Hazardous Area Floodlights EC-Declaration of Conformity Champ FMVA LED Hazardous Area Floodlights EC-Declaration of Conformity Champ FMVA LED Hazardous Area Floodlights EC-Declaration of Conformity IF 1842 - Champ FMVA40L/50L LED Floodlights IF 1842 - Champ FMVA40L/50L LED Floodlights IF 1842 - Champ FMVA40L/50L LED Floodlights Eaton Specification Sheet - FMVA50LCY/UNV1 33
High-output LED platform delivers 50,000 lumens at 126 lm/W, reducing fixture counts and overall energy consumption. This performance supports wide-area coverage in large industrial spaces while maintaining excellent color rendition with a cool white spectrum. The result is lower capital expenditure and ongoing operating costs, making the FMVA50LCY/UNV1 33 well-suited for expansive yards, loading docks, and perimeter lighting in hazardous areas. Rugged die-cast aluminum housing, heat-dissipating design, and heat and impact resistant glass deliver long service life in vibration-prone environments. Protection ratings IP66 and NEMA 4X, combined with Hazardous/Classified Locations certifications, guard against dust, moisture, and corrosive atmospheres, translating to fewer maintenance events and greater reliability in chemical plants, refineries, and offshore facilities. Electrical flexibility supports quick deployment and control integration. A dimmable driver, broad 100–277 VAC range, and 50/60 Hz compatibility enable seamless retrofits and energy-management strategies without overhauling power infrastructure. The 3/4" entry and yoke mounting simplify installation on existing frames and brackets, reducing project risk and accelerating time-to-light in new builds or upgrades. Optical design delivers uniform coverage across large areas. The 3x3 optic pattern, combined with a die-cast aluminum body and gray finish, resists discoloration and corrosion while maintaining lumen integrity. The fixture’s 2 x 8.7W LED modules contribute to efficient heat management and stable color temperature, supporting safe, reliable operation in demanding industrial settings. Compliance-forward architecture supports NEC/CEC alignment and robust certification packages, including DoC, ATEX, and IECEx references in the provided documents. This reduces regulatory risk and streamlines procurement for plants pursuing DLC-approved lighting. Overall, FMVA50LCY/UNV1 33 delivers a compelling total cost of ownership through extended life, reduced maintenance, and dependable hazardous-area illumination.

Get a Quick Quote for a Eaton Crouse-Hinds FMVA50LCY/UNV1 33

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds FMVA50LCY/UNV1 33? Enquire Now

FAQs

This luminaire is rated for Hazardous/Classified Locations and carries NEC/CEC standards with a Class I Zone 2, Class I Division 2, and Class II Division 1 rating. It uses IP66 and a NEMA 4X enclosure to resist dust, water, and corrosion. The die-cast aluminum construction combined with heat-resistant glass supports reliable operation in chemical plants, refineries, and offshore facilities.
The FMVA50LCY/UNV1 33 includes a dimmable driver and operates over a wide voltage range of 100–277 VAC at 50/60 Hz, enabling precise lighting control and integration with occupancy sensors or building management systems. This reduces energy waste, extends component life, and aligns with retrofit projects aiming for lower utility costs while maintaining required illumination levels.
Plan for a 3/4 inch entry and a yoke mounting arrangement to maximize mounting flexibility on frames, poles, or equipment structures. The unit weighs 32.5 lb and uses a die-cast aluminum housing with heat-resistant glass, designed for durable performance in vibration-prone environments. Its dimensions support planned spacing in large yards and perimeter lighting applications.
The FMVA50LCY/UNV1 33 supports hazardous-area compliance with NEC/CEC standards and Hazardous/Classified Locations ratings, including Class I Zone 2 and Division 2, as well as Class II Division 1. It carries NEMA 4X and IP66 protections, and documentation includes EC DoC, ATEX, IECEx, and Canadian certifications for cross-border projects.
With 50,000 lumens, 126 lm/W efficacy, and a robust die-cast aluminum housing, the fixture delivers long life with minimal lumen depreciation. The rugged construction reduces downtime in harsh environments, lowering maintenance costs and replacement cycles. The result is improved uptime, safer operation, and predictable total cost of ownership for hazardous-area lighting projects.
