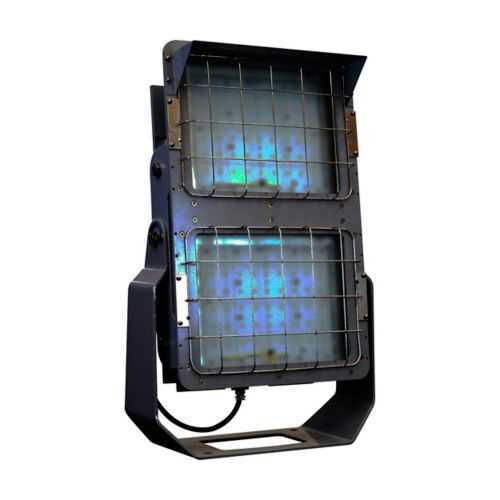

Eaton FMVA50LWY/UNV34 76 LED Floodlight - IP66

Part Number: FMVA50LWY/UNV34 76
FMVA50LWY/UNV34 76
Manufacturer
Eaton Crouse-Hinds
Part number
FMVA50LWY/UNV34 76
Category

Quick Summary

FMVA LED floodlight from Eaton delivers high-output illumination for hazardous-location industrial sites. Maintenance teams struggle with fixtures that withstand chemical exposure, vibration, and washdowns without frequent replacements. It meets NEC/CEC standards and hazardous-location classifications, is IP66 and NEMA 4X rated, and features a dimmable driver to support energy management and maintenance cycles. With 50,000 lumens of warm white light and a 347–480 VAC input, the FMVA50LWY/UNV34 76 helps plants reduce outages while improving safety and productivity. Designed with die-cast aluminum, heat-resistant glass, and a gray finish, it delivers durability in demanding environments and aligns with industrial lighting best practices. This hazardous area lighting solution supports operator safety and facilities uptime.

Product Information

Extended Description

FMVA50LWY/UNV34 76 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Champ FMVA LED floodlight, 1.54A, Warm white, Dimmable driver, 3/4" entries, 1500W+ equiv, Heat and impact resistant glass lens, 50,000 lm, 126 lm/W, Die cast alum, 7x6 optics, Gray paint, 347-480 Vac, 400W
Product Name
Eaton Crouse-Hinds series Champ FMVA LED floodlight
Catalog Number
FMVA50LWY/UNV34 76
Product Length/Depth
15.35 in
Product Height
24 in
Product Width
17.28 in
Product Weight
32.5 lb
UPC
662276816350
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lumens
50000
Lumens per watt
126
Color temperature
Warm white
Mounting Method
Yoke
Voltage rating
347-480 Vac
Frequency rating
50/60 Hz
Optical distribution
7x6
Entry size
3/4"
Lens material
Heat and impact resistant glass
Finish color
Gray
Wattage
2 x 8.7W
Dimming
Dimmable driver
Equivalent luminaire
1500W+
Power factor
> 0.90
Amperage Rating
1.54 A
Material
Die cast aluminum
SP3D Design Package - Champ FMVA LED Hazardous Area Floodlights Crouse-Hinds series DLC approved lighting products Crouse-Hinds series DLC approved lighting products Crouse-Hinds series Champ FMVA LED Floodlights - 20,000 to 50,000 lumens catalog page Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification Champ FMVA LED Hazardous Area Floodlights UL certification IF 1889 - Champ FMVA/PFMA LED Floodlight Driver Replacement IF 1889 - Champ FMVA/PFMA LED Floodlight Driver Replacement IF 1889 - Champ FMVA/PFMA LED Floodlight Driver Replacement Eaton Specification Sheet - FMVA50LWY/UNV34 76
Lumens and efficiency drive coverage and energy savings. The FMVA50LWY/UNV34 76 delivers 50,000 lumens at a high efficacy of 126 lm/W, enabling broad area illumination with fewer fixtures and lower operating costs. This translates to reduced maintenance cycles and improved site visibility for critical operations in hazardous zones, supporting safer workflows and faster incident response. The dimmable driver adds precision control, allowing facilities to balance lighting levels with workload, reducing energy waste and extending component life in demanding environments. The fixture is designed for 347-480 VAC input and 50/60 Hz support, enabling seamless integration into multinational plants and retrofits without voltage conversion issues. A robust die-cast aluminum housing and heat- and impact-resistant glass protect the optics, delivering reliable performance in tough industrial settings. The 7x6 optical distribution focuses light where it’s needed, improving site safety on docks, lanes, and constrained spaces. Compatibility with a yoke mounting and 3/4 in entries simplifies installation and future servicing, while the gray finish and corrosion-resistant materials prolong exterior life in washdowns and chemical exposure. In addition, its NEMA 4X and IP66 ratings provide confidence in weather resistance and washdown durability, addressing common objections about outdoor and hazardous-area lighting reliability. For engineers prioritizing safety, compliance, and lifecycle cost, this FMVA floodlight aligns with regulated installations and site-wide lighting strategies for hazardous locations.

Get a Quick Quote for a Eaton Crouse-Hinds FMVA50LWY/UNV34 76

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds FMVA50LWY/UNV34 76? Enquire Now

FAQs

Begin by confirming the area classification and ensuring compliance with NEC/CEC requirements. Mount the fixture using the included yoke, align lighting with the 7x6 optic, and route wiring through the 3/4 in entry points. Ensure power is de-energized during installation, then connect to a 347-480 VAC supply and verify the dimmable driver operation for load control in hazardous environments.
It is rated for Hazardous/Classified Locations with Class I, Division 1 and 2 and Zone 2 capabilities, and Class II, Division 1. The fixture carries NEMA 4X and IP66 protection, plus a heat and impact resistant glass lens and die-cast aluminum housing, providing durability against chemical exposure, vibration, and washdowns while delivering consistent light in tough industrial settings.
The luminaire delivers 50,000 lumens with a reported 126 lm/W efficiency, powered by 347-480 VAC input at 50/60 Hz and a power factor greater than 0.90. The amperage is 1.54 A with a wattage of 2 x 8.7 W. While the lumens and efficiency indicate strong output, the fixture is designed to replace higher wattage equivalents (about 1500 W+), enabling energy savings and improved control in process environments.
Verify NEC/CEC standards alongside hazardous location classifications (Class I/II, Division 1/2, Zone 2) and IP66/NEMA 4X protection. The FMVA is positioned for UL/IECEx/ATEX aligned environments and meets typical contractor expectations for reliability in hazardous areas, including rugged construction and documented protection against dust, water, and chemical exposure.
The dimmable driver enables energy management, reducing operating costs during low-load periods. The IP66/NEMA 4X rating and rugged housing minimize maintenance intervals by withstanding washdowns and harsh environments, extending service life. With high lumen output and favorable efficiency, sites can achieve fewer fixtures for the same coverage, lowering installation and replacement costs over the lifecycle.
