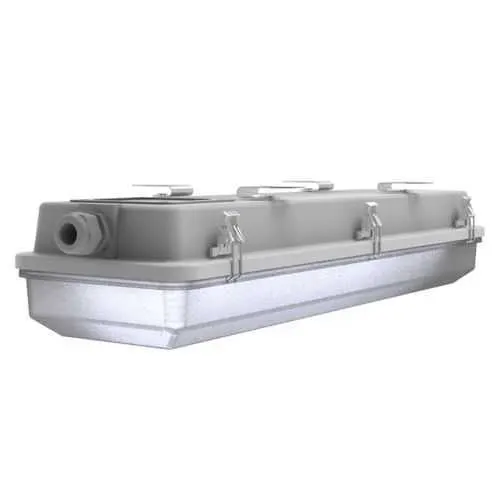

Eaton FPS2L-RV1 LED light fixture for Industrial Use IP66
Part Number: FPS2L-RV1
Quick Summary
The FPS2L-RV1 LED light fixture provides reliable 2 ft illumination for industrial facilities. In harsh environments, downtime and costly maintenance from unreliable lighting are major pain points. This model delivers IP66 ingress protection and a NEMA 4X rating with NEC/CEC compliance for safe, code-conscious installations. Its energy-efficient operation, featuring a >0.90 power factor and a broad 120–277 VAC range, lowers operating costs while simplifying power distribution. As part of the Pauluhn Intrepid portfolio, it aligns with broader industrial LED lighting strategies for uptime and safety.
Product Information
Extended Description
FPS2L-RV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear LED light fixture, 2 ft, Red matte polycarbonate lens, 700 lumens, Fiberglass-reinforced polyester, >0.90 power factor, 120-277 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear LED light fixture
Catalog Number
FPS2L-RV1
Product Length/Depth
28.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
9 lb
UPC
662276701045
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lamp length
2 ft
Lumens
700
Lens color
Red
Lens material
Matte polycarbonate
Material
Fiberglass-reinforced polyester
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Pauluhn Intrepid Linear LED catalog page
Pauluhn Intrepid Industrial Linear LED Light Fixtures Canadian certification
Pauluhn Intrepid Industrial Linear LED Light Fixtures Canadian certification
IF 1836 - Pauluhn Intrepid LED Linear
Eaton Specification Sheet - FPS2L-RV1
Rugged housing and environmental protection deliver real business impact. The fiberglass-reinforced polyester enclosure combined with IP66 and NEMA 4X ratings resists corrosion, dust, and washdowns, extending service life in harsh facilities. This design is ideal for process plants, outdoor yards, and marine environments where downtime is unacceptable and maintenance windows are limited. Color-coded signaling and lumen performance support safety-critical operations. The red matte polycarbonate lens provides immediate visibility in hazard zones, while 700 lumens deliver sufficient task illumination without glare. The combination of robust lens and efficient LED source supports compliance with high-visibility requirements in warehouses and production lines. Electrical efficiency and flexibility reduce energy waste. Operating on 120-277 VAC with 50/60 Hz frequency and a power factor greater than 0.90 minimizes energy losses and simplifies power conditioning, easing retrofits and inventory management. Size, weight, and installation ease. At 28.8 inches long with a 9-lb footprint, the fixture fits standard two-foot mounting footprints and enables fast installation in crowded ceilings or wall mounts. Compliance and portfolio fit. The NEC/CEC-aligned, Ordinary/Non-Hazardous location classification ensures clean integration into existing electrical plans, while the Pauluhn Intrepid Linear LED portfolio provides a scalable, durable lighting solution for multiple facilities.
Get a Quick Quote for a Eaton Crouse-Hinds FPS2L-RV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FPS2L-RV1?
Enquire Now
FAQs
FPS2L-RV1 is designed for universal compatibility with 120-277 VAC supplies featuring 50/60 Hz. It uses standard two-foot mounting footprints and a straightforward installation process described in the IF1836 instruction sheet. This minimizes retrofit time and reduces the need for additional transformers or drivers, helping to shorten downtime during facility upgrades.
The fixture delivers 700 lumens of output with a red matte polycarbonate lens. The red lens enhances visibility in safety-critical zones by directing attention to critical areas or equipment. This combination is especially useful in warehouses, process lines, and outdoor spaces where rapid recognition improves operator response and reduces error rates.
Yes. FPS2L-RV1 is rated IP66 and NEMA 4X, designed for Ordinary/Non-Hazardous Locations. It provides robust protection against dust and water ingress, making it suitable for washdown areas, outdoor spaces, and general industrial facilities that require reliable lighting without exposure to hazardous classifications.
FPS2L-RV1 carries NEC/CEC standards compliance and a NEMA 4X rating with IP66 protection. These certifications ensure code-compliant installation in non-hazardous environments and reliable performance in challenging industrial settings, aligning with typical plant electrical drawings and safety requirements.
With a power factor above 0.90 and a broad voltage range, FPS2L-RV1 reduces energy waste and minimizes power conditioning needs. Its robust IP66/NEMA 4X enclosure lowers maintenance frequency in washdown and outdoor areas, extending service life and reducing replacement costs, while supporting uptime in manufacturing and logistics operations.
