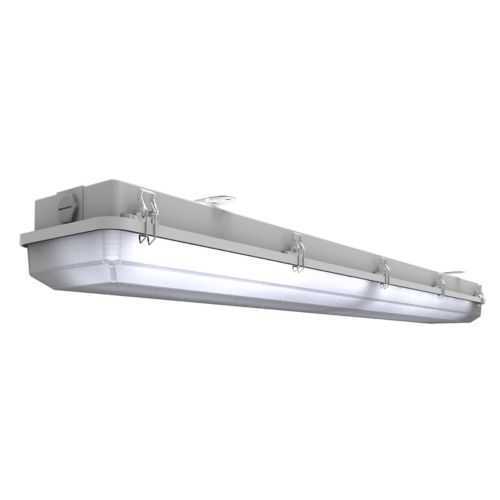

Eaton FPS4L-BV1 Linear LED - IP66
Part Number: FPS4L-BV1
Quick Summary
Linear LED light fixture provides dependable 4 ft illumination for industrial facilities. It helps prevent maintenance surprises in dusty, washdown environments by combining rugged housing and high IP66 protection. Certified for Ordinary/Non-Hazardous Locations under NEC/CEC, with a NEMA 4X enclosure and IP66 rating, it meets demanding industrial codes. In addition to robust compliance, its 120–277 VAC operation and >0.90 power factor support energy efficiency and reliable uptime for cost-conscious facilities. This fixture's blue matte polycarbonate lens also aids visual identification in busy plant areas, while its fiberglass-reinforced polyester housing resists chemical exposure. Its 4 ft length aligns with standard ceiling grids, easing retrofits in existing Pauluhn Intrepid layouts. The product page includes installation sheets to simplify field mounting.
Product Information
Extended Description
FPS4L-BV1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear LED light fixture, 4 ft, Blue matte polycarbonate lens, 500 lumens, Fiberglass-reinforced polyester, >0.90 power factor, 120-277 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn Intrepid FPS linear LED light fixture
Catalog Number
FPS4L-BV1
Product Length/Depth
52.8 in
Product Height
5 in
Product Width
7.625 in
Product Weight
18.25 lb
UPC
786689648947
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Lamp type
LED
Lamp length
4 ft
Lumens
500
Lens color
Blue
Lens material
Matte polycarbonate
Material
Fiberglass-reinforced polyester
Voltage rating
120-277 Vac
Frequency rating
50/60 Hz
Power factor
> 0.90
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Global LED lighting portfolio
Crouse-Hinds series Pauluhn Intrepid Linear LED catalog page
Pauluhn Intrepid Industrial Linear LED Light Fixtures Canadian certification
Pauluhn Intrepid Industrial Linear LED Light Fixtures Canadian certification
IF 1836 - Pauluhn Intrepid LED Linear
Eaton Specification Sheet - FPS4L-BV1
Feature → Business Impact → Application: LED lamp type provides energy-efficient illumination with 500 lumens, reduced operating costs, and compatibility with 120–277 VAC, 50/60 Hz, PF >0.90 for general industrial spaces. Feature → Business Impact → Application: IP66 and NEMA 4X protection ensure washdown tolerance and dust resistance, minimizing downtime in warehouses and production floors. Feature → Business Impact → Application: Blue matte polycarbonate lens and fiberglass-reinforced polyester housing resist chemicals and impact, improving service life in challenging environments. Feature → Business Impact → Application: 52.8 in length and 18.25 lb weight streamline handling and retrofits into standard Pauluhn Intrepid layouts. Feature → Business Impact → Application: NEC/CEC compliance and ordinary location rating simplify procurement and regulatory alignment.
Get a Quick Quote for a Eaton Crouse-Hinds FPS4L-BV1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FPS4L-BV1?
Enquire Now
FAQs
FPS4L-BV1 is designed for 4 ft linear mounting in standard ceiling grids and Pauluhn Intrepid layouts. For field mounting, refer to IF 1836 Pauluhn Intrepid LED Linear installation sheet and supporting Eaton documentation to ensure proper enclosure, seals, and wire routing. The fixture weighs about 18.25 lb, aiding safe handling during retrofit projects.
The FPS4L-BV1 operates on 120–277 VAC with a 50/60 Hz frequency, delivering 500 lumens and a power factor greater than 0.90. This combination minimizes circuit loading, reduces energy waste, and supports steady light output in industrial environments while maintaining compliance with NEC/CEC standards. Engineered for long-term operation, it reduces maintenance cycles and downtime.
Yes. The FPS4L-BV1 is certified for Ordinary/Non-Hazardous Locations with IP66 and NEMA 4X enclosures, making it suitable for warehouses, corridors, and general area lighting where rugged protection and reliable LED performance are required. These certifications also aid procurement and inspection readiness across diverse facilities.
This fixture aligns with NEC/CEC standards, is rated IP66 for ingress protection, and features a NEMA 4X enclosure. These certifications ensure safe operation in non-hazardous industrial settings, enable compliant procurement, and simplify site acceptance tests in regulated facilities. They also support consistent performance in harsh environments.
LED technology reduces maintenance cycles compared with legacy lighting, while high PF and wide voltage range improve energy efficiency. The 4 ft Pauluhn Intrepid integration simplifies retrofits, lowering installation time and total cost of ownership through fewer replacements and reliable uptime. This translates to measurable ROI in facilities with frequent shutdown constraints and high safety requirements.
