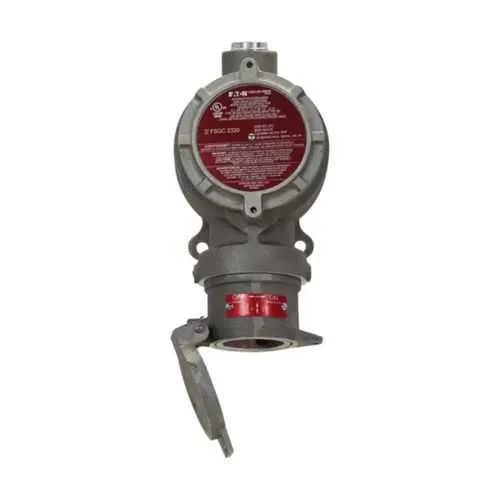

Eaton FSQC2390 Interlocked Receptacle - Hazardous Locations
Part Number: FSQC2390
Quick Summary
FSQC2390 interlocked receptacle with switch is a rugged solution for hazardous locations in industrial control panels. Engineers often face energization risks and noncompliant enclosures when wiring in explosive atmospheres. This unit carries NEC/CEC compliance and is rated for Class I Division 1 and 2, Class II Division 1 and 2, and Class III locations, with NEMA ratings 7, 12, 9, and 3. Its copper-free aluminum housing and brass contacts offer durability while simplifying replacement and maintenance. Leverage through-feed back box design for faster installs, and combine with magnetic motor starters in Arktite FSQC-series systems to improve safety, reliability, and project timelines in demanding industrial environments.
Product Information
Extended Description
FSQC2390 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Arktite FSQC interlocked receptacle with switch, Through feed, 0.39-1.20" cable diameter, Three-wire, four-pole, Brass contacts, Copper-free aluminum, Spring door, 3/4", For use with magnetic motor starters
Product Name
Eaton Crouse-Hinds series Arktite FSQC interlocked receptacle with switch
Catalog Number
FSQC2390
Product Weight
5.74 lb
UPC
782274417325
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 1 Class III Class II, Division 2 Class II, Division 1 Class I, Division 1
NEMA Rating
7 12 9 3
Trade size
3/4"
Configuration
Three-wire, four-pole
Receptacle style
Spring door
Back box style
Through feed
Cable diameter
0.39-1.20 in
Material
Copper-free aluminum
Contact material
Brass
Type
For use with magnetic motor starters
SP3D Design Package - Arktite FSQC Explosionproof Interlocked Receptacles
Arktite FSQC Explosionproof Interlock Receptacles catalog page
Arktite FSQC Explosionproof Interlock Receptacles UL certification
Arktite FSQC Explosionproof Interlock Receptacles UL certification
IF 83 - FSQ Interlocked Receptacle and Switch - Class I, Group B Hazardous (Classified) Locations
IF 83 - FSQ Interlocked Receptacle and Switch - Class I, Group B Hazardous (Classified) Locations
IF 83 - FSQ Interlocked Receptacle and Switch - Class I, Group B Hazardous (Classified) Locations
IF 83 - FSQ Interlocked Receptacle and Switch - Class I, Group B Hazardous (Classified) Locations
Eaton Specification Sheet - FSQC2390
Three-wire, four-pole configuration delivers a robust control interface that minimizes miswiring and inadvertent energization. This translates to improved safety and reliability in harsh environments, and seamless integration with magnetic motor starters in hazardous-area control panels. The copper-free aluminum housing resists corrosion and reduces weight during installation, while brass contacts provide low contact resistance and long-term durability, cutting maintenance costs and downtime. A spring door and through-feed back box enable quick field servicing, simplifying wiring and reducing enclosure openings during routine maintenance. Cable diameter support of 0.39–1.20 inches offers flexibility for varying field cabling while preserving a compact footprint in tight spaces. ANSI/NEMA and NEC/CEC compliance ensure safe operation across Class I/II/III installations, lowering regulatory risk and accelerating project sign-off. The 3/4 inch trade size aligns with standard industrial conduit practices, supporting streamlined procurement and compatible enclosures. The overall rugged construction supports extended service life in demanding environments, delivering measurable ROI through reduced downtime and fewer replacement cycles.
Get a Quick Quote for a Eaton Crouse-Hinds FSQC2390
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FSQC2390?
Enquire Now
FAQs
Begin by confirming the site meets Class I Division 1/2, Class II, and Class III ratings and follows NEC/CEC standards. Use the three-wire, four-pole configuration, connect 0.39–1.20 in cables, and seat the unit in the through-feed back box. Follow the IF 83 installation sheets for interlock and switch wiring, verify the spring door operates freely, and perform a functional energize/de-energize test with proper lockout procedures to ensure safe operation.
FSQC2390 is NEC/CEC compliant and designed for Hazardous/Classified Locations. It carries NEMA ratings 7, 12, 9, and 3, and supports Class I, Division 1 and 2, Class II, Division 1 and 2, as well as Class III locations. UL certification is documented for receptacles with interlocks in hazardous locations, with compatibility for both US and Canada markets, ensuring rigorous safety and performance validation.
Yes. The FSQC2390 is specified for use with magnetic motor starters and is part of the Arktite FSQC interlocked receptacles family. This compatibility enables reliable motor-control interlock sequences in hazardous environments, reduces misoperation, and supports standardized wiring schemes across FSQC-series installations.
FSQC2390 accepts a cable diameter range of 0.39 to 1.20 inches and uses a 3/4 inch trade size. This combination offers flexible field cabling options while aligning with common conduit and back-box dimensions, simplifying procurement and installation in harsh or restricted spaces.
The copper-free aluminum housing and brass contact construction deliver durable operation with low corrosion risk, reducing maintenance intervals. Through-feed back box design accelerates field wiring and service, minimizing downtime. The unit’s robust ratings and interlock mechanism help ensure safer energization sequences, supporting faster project completion and lower total cost of ownership in hazardous-location applications.
