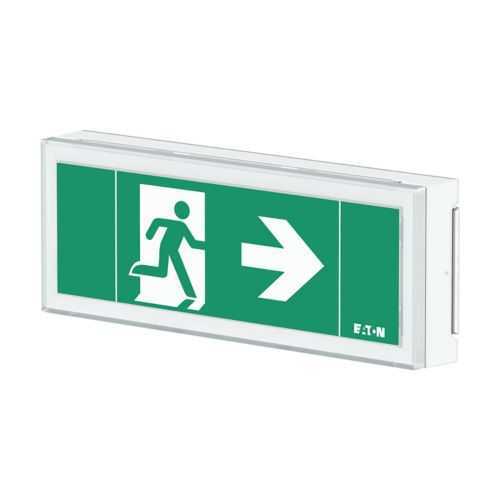

Eaton FT1EW4ICGL18IP Exit Sign Luminaire - IP66
Part Number: FT1EW4ICGL18IP
Quick Summary
Eaton FT1EW4ICGL18IP exit sign delivers reliable, maintained LED emergency lighting for indoor escape routes in industrial facilities. Many users struggle with signage that fails during outages or stands out poorly in harsh environments. This model carries CE certification, IP66 protection, and IK07 impact resistance, plus EN 1838 compliance for the visibility standards you require. By combining rugged housing with a compact footprint, it fits tight wall spaces without compromising signaling clarity, while its lithium-ion battery and plug-in connection streamline commissioning. For operations aiming to minimize downtime and maintenance costs, the FlexiTech EW SC sign integrates with CGLine+ testing and centralized monitoring to support proactive safety management and regulatory compliance.
Product Information
Extended Description
FT1EW4ICGL18IP Eaton Crouse-Hinds: Eaton FlexiTech, Exit Wall, 12m, 4 picto. (DRLU), CGLine+, 1 to 8H, IP66
Product Name
Eaton FlexiTech EW SC exit sign
Catalog Number
FT1EW4ICGL18IP
Product Length/Depth
231 mm
Product Height
34 mm
Product Width
86 mm
Product Weight
0.34 kg
Certifications
CE
EAN
3660191809188
Application
Acc. EN 1838
Mounting Method
Wall surface mounted
Outdoor use compliance
False
Type of indicator
Only single-sided
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route signage
Kind of luminaire
Exit sign luminaire
Labelling type
Insert sheet/plate
Light distributor
Diffuser lens/optic/panel
Luminaire With Limited Surface Temperature, Sign D
False
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
True
With remote switch connection
True
Color housing
White
Degree of protection
IP66
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
eaton-emergency-lighting-self-contained-exit-flexitech-ew-cgl-datasheet-en
eaton-emergency-lighting-self-contained-exit-safety-flexitech-ew-su-certificate-doc-en-fr-de
eaton-emergency-lighting-self-contained-exit-flexitech-ew-12-cgl-manual-all-lang.pdf
Rugged protection delivers tangible uptime gains. The IP66-rated housing and IK07 impact resistance safeguard the sign in dusty or damp industrial spaces, reducing service calls and replacement costs while maintaining clear escape-route visibility. This translates to higher system reliability and safer evacuations in high-traffic areas. The Maintained / Non-Maintained (M / NM) mode ensures signage stays lit during mains outages, improving compliance with EN 1838 and reducing risk during power failures. The unit uses a peripheral, lithium-ion battery with a plug-in connection, enabling fast commissioning and straightforward field servicing without specialized tools, cutting down installation time and labor costs. With 231 mm length and a compact 86 mm width, it fits standard wall apertures and existing mounting footprints, streamlining retrofit projects. A white plastic housing with diffused LED optics provides uniform illumination and long-term durability in harsh environments. Compatibility with CGLine+ testing and a central safety monitoring module supports proactive maintenance and regulatory reporting, delivering measurable ROI through reduced downtime and improved safety metrics.
Get a Quick Quote for a Eaton Crouse-Hinds FT1EW4ICGL18IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT1EW4ICGL18IP?
Enquire Now
FAQs
FT1EW4ICGL18IP is designed for wall surface mounting and utilizes a plug-in connection for quick power, plus a remote switch connection for integration with existing control circuits. It employs a peripheral battery power supply and accommodates a compact 231 mm length footprint to simplify retrofit projects. This combination minimizes installation time, reduces on-site wiring, and supports straightforward service access.
The unit operates on AC voltage with a peripheral battery system and lithium-ion cells. It offers Maintained and Non-Maintained operation with a runtime range from 1 to 8 hours, depending on battery state and load. A plug-in connection simplifies commissioning, while the Lithium-ion battery delivers reliable energy density and long service life for daily use and outages.
Outdoor use is not supported for this model, despite its IP66 rating, which provides strong protection against dust and water ingress for indoor or semi-exposed conditions. It is not explosion protected and is intended for indoor installations per EN 1838. For harsh outdoor environments, verify enclosure suitability or select a product specifically rated for outdoor service.
The FT1EW4ICGL18IP carries CE certification and EN 1838 compliance for escape-route signage, ensuring visibility and performance in regulated spaces. It also features IP66 protection and IK07 impact resistance, supporting performance in tough industrial settings. The unit integrates with CGLine+ testing and supports central monitoring for enhanced safety compliance and audit readiness.
Maintenance benefits include low-power LED performance, a long-life lithium-ion battery, and remote switch readiness for integration with existing control systems. CGLine+ testing and central monitoring reduce preventive maintenance effort and downtime, enabling proactive safety management and regulatory reporting. The compact footprint simplifies retrofits, reducing installation labor and accelerating time-to-value for facility safety upgrades.
