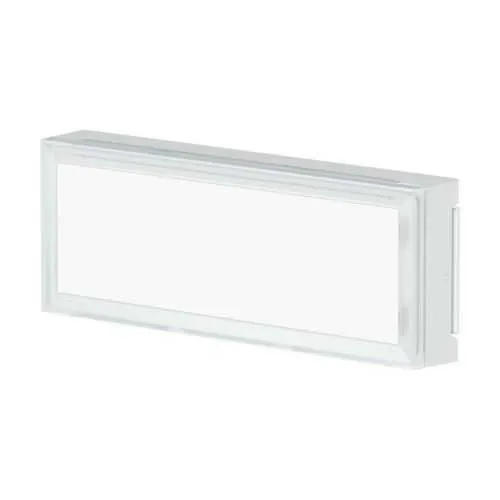

Eaton FT1SU250ATT13 Safety luminaire - CE marking
Part Number: FT1SU250ATT13
Quick Summary
FT1SU250ATT13 safety luminaire delivers reliable escape-route illumination for indoor spaces. Maintenance teams often struggle to guarantee exit-path lighting during outages, but this unit provides both maintained and non-maintained modes with a dedicated emergency circuit. It carries CE marking, IP43 protection, and IK07 impact resistance, ensuring safety and durability in typical indoor installations. With wall or ceiling mounting, plug-in wiring, and remote-switch connectivity, it supports fast retrofits and predictable compliance, reducing total cost of ownership for retrofit projects. Designed for industrial environments, it uses a white LED with CRI 80 for accurate color rendering along escape routes, and its slim profile minimizes installation disruption.
Product Information
Extended Description
FT1SU250ATT13 Eaton Crouse-Hinds: Eaton FlexiTech, Safety light Uniform illumination., 250lm, AT, MNM, Tel, 1 to 3H
Product Name
Eaton FlexiTech SU SC safety luminaire
Catalog Number
FT1SU250ATT13
Product Length/Depth
231 mm
Product Height
34 mm
Product Width
86 mm
Product Weight
0.36 kg
Certifications
CE marking
EAN
3660191811907
Application
Other
Mounting Method
Wall surface mounted / ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Not applicable
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route lighting
Kind of luminaire
Safety luminaire for escape route and open area lighting
Labelling type
Other
Light distributor
Diffuser lens/optic/panel
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
False
With remote switch connection
True
Color housing
White
Degree of protection
IP43
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A++, A+, A (LED)
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Automatic self test
Testing system
Auto-Test
The 250 lm LED engine delivers bright, white light with CRI 80, supporting clear wayfinding and safer egress in corridors and open areas; this translates to measurable safety improvements and energy efficiency gains through LED technology. Emergency operation uses a peripheral battery system, enabling maintained or non-maintained modes and Auto-Test monitoring to ensure readiness, reducing manual inspection time and helping meet regulatory requirements for emergency lighting. Installation is streamlined by wall or ceiling mounting and a convenient plug-in connection, while remote-switch connectivity enables flexible control in complex layouts, accelerating retrofits and new installations. The durable housing combines IP43 protection with IK07 impact resistance and a plastic diffuser, delivering reliable indoor performance in busy facilities with minimal maintenance. Automatic self-test and Auto-Test features further reduce downtime and labor costs, supporting a strong return-on-investment profile for facility managers.
Get a Quick Quote for a Eaton Crouse-Hinds FT1SU250ATT13
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT1SU250ATT13?
Enquire Now
FAQs
FT1SU250ATT13 supports wall surface mounting or ceiling surface mounting and uses a plug-in connection for quick setup. The unit can be wired in a continuous circuit with an emergency circuit, and it offers a remote switch connection for integration with existing control systems. This combination enables rapid retrofits in corridors, open areas, and indoor spaces without extensive rewiring.
The luminaire operates on AC voltage with a peripheral (individual) lithium-ion battery providing emergency power. It supports maintaining or non-maintained operation and delivers about 250 lumens of white light. The emergency runtime ranges from 1 to 3 hours, depending on configuration and supply conditions, with automatic self-test ensuring readiness.
Yes. With IP43 protection and IK07 impact resistance, the unit is well-suited for indoor factory corridors, open areas, and other non-exposed environments. Its compact 231 mm length, 86 mm width, and 34 mm height allow discrete installation on walls or ceilings, while its Maintained / Non-Maintained operation covers various safety codes for escape route lighting.
The product carries CE marking and meets indoor-use ratings with IP43 protection and IK07 impact strength. It uses a plastic housing and diffuser suitable for indoor environments, and it adheres to safety standards for emergency lighting with automatic self-test functionality to support regulatory compliance.
Auto-Test and automatic self-test monitoring reduce manual inspection frequency, improving system readiness and lowering ongoing maintenance labor costs. The LED-based design provides energy efficiency, while the compact form factor and plug-in wiring shorten installation time. Collectively, these features contribute to a faster return on investment for facilities upgrading their escape route lighting.
