Eaton FT1SU250ATT13IP Safety Luminaire - IP66 CE
Part Number: FT1SU250ATT13IP
Quick Summary
The Eaton FlexiTech SU SC safety luminaire provides reliable escape-route illumination for industrial and commercial facilities. Maintenance teams often battle uncertain battery health, complex wiring, and downtime during safety upgrades. With CE certification, an IP66 enclosure and IK07 impact resistance, plus automatic self-test monitoring, it helps meet strict standards while reducing lifecycle risk. Designed for wall or ceiling mounting as a compact LED solution, it delivers consistent performance and predictable maintenance costs across sites. Using a plug-in connection and a built-in lithium-ion battery, it simplifies installation and reduces service time. This makes it a practical choice for facilities prioritizing reliability, compliance, and total cost of ownership.
Product Information
Extended Description
FT1SU250ATT13IP Eaton Crouse-Hinds: Eaton FlexiTech, Safety light Uniform illumination., 250lm, AT, MNM, Tel, 1 to 3H, IP66
Product Name

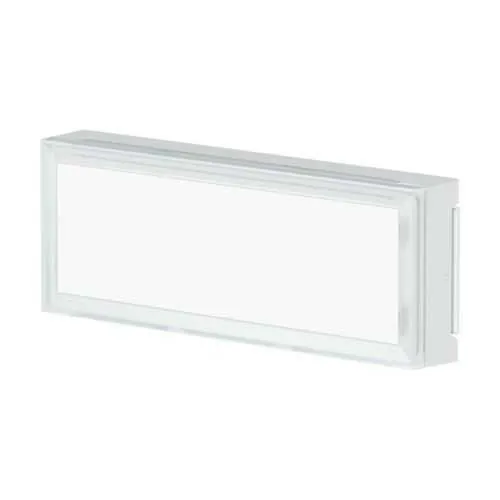

Eaton FlexiTech SU SC safety luminaire
Catalog Number
FT1SU250ATT13IP
Product Length/Depth
231 mm
Product Height
34 mm
Product Width
86 mm
Product Weight
0.36 kg
Certifications
CE
EAN
3660191811921
Application
Other
Mounting Method
Wall surface mounted / ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Not applicable
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route lighting
Kind of luminaire
Safety luminaire for escape route and open area lighting
Labelling type
Other
Light distributor
Diffuser lens/optic/panel
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
False
With remote switch connection
True
Color housing
White
Degree of protection
IP66
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A++, A+, A (LED)
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Automatic self test
Testing system
Auto-Test
The FT1SU250ATT13IP uses an IP66 enclosure with IK07 impact resistance to withstand washdowns, dust intrusion and rough handling in industrial environments. That robustness translates to fewer service calls and longer life for escape-route lighting in factories, warehouses, and maintenance areas. LED light sources deliver 250 lumens with a white light at CRI 80, ensuring clear egress illumination without glare. The diffuser lens distributes light evenly across escape paths, supporting reliable visibility in crowded production floors. Designed for wall surface mounting or ceiling surface mounting, its compact 231 mm length and lightweight 0.36 kg form simplify retrofits and minimize space impact. The rectangular housing in white blends with indoor decors while preserving escape-route visibility. Powered by a peripheral lithium-ion battery with AC supply, it supports maintained or non-maintained operation for 1 to 3 hours of emergency lighting. Plug-in connection simplifies commissioning, and the continuous circuit/emergency circuit wiring supports quick integration with existing systems. Automatic self-test and Auto-Test modes provide ongoing readiness and fault reporting without manual checks. The built-in option for a remote switch connection enhances testing flexibility during commissioning or maintenance windows. With CE certification and an EAN 3660191811921, the unit aligns with formal safety standards while offering predictable lifecycle costs. This makes it a practical, future-proof choice for facilities prioritizing reliability, code compliance, and cost of ownership.
Get a Quick Quote for a Eaton Crouse-Hinds FT1SU250ATT13IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT1SU250ATT13IP?
Enquire Now
FAQs
Install on a suitable wall or ceiling surface using the provided mounting method. The unit supports wall surface mounting or ceiling surface mounting with a compact footprint (231 mm length, 86 mm width, 34 mm height). Use the plug-in connection to simplify wiring and connect to the continuous/emergency circuit. Ensure IP66 sealing is maintained and test the remote switch connection during commissioning.
The luminaire runs on AC with a peripheral lithium-ion battery. It offers Maintained and Non-Maintained modes with emergency illumination from 1 to 3 hours. It is designed for plug-in connection and continuous/emergency circuit wiring, delivering 250 lumens of white light with a CRI of 80. It is CE certified and built for indoor use with IP66 protection.
Yes. It is designed for escape-route and open-area lighting in indoor environments. The IP66 enclosure protects against dust and water ingress, while the diffuser lens ensures uniform illumination. Its Maintained/NM option and Auto-Test capability support reliable operation across corridors, work zones, and open floor areas, aligning with typical industrial safety standards.
The unit is CE certified and carries an EAN of 3660191811921. It features IP66 enclosure protection, IK07 impact resistance, and automatic self-test monitoring. These certifications help facilities demonstrate compliance with safety regulations and ensure dependable performance in challenging indoor environments.
Automatic self-test continually verifies battery health and functionality without manual checks, reducing routine inspections. This minimizes maintenance downtime, improves fault visibility, and supports regulatory reporting. For facilities, the result is lower labor costs, faster incident response, and a more predictable lifecycle cost for emergency lighting investments.
