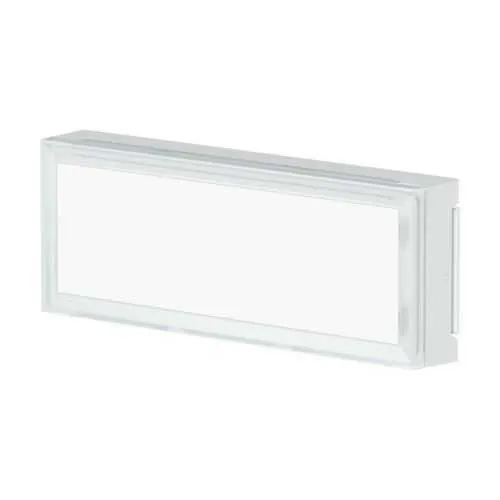

Eaton FT1SU250CGL13 Safety Luminaire - CE IP43
Part Number: FT1SU250CGL13
Quick Summary
Eaton FlexiTech SU SC safety luminaire is a compact, wall- or ceiling-mounted emergency light designed for escape routes in industrial facilities. Operators often struggle with maintaining reliable illumination during power outages and ensuring quick verification; this unit delivers consistent light with a lithium‑ion battery and CGLine+ testing for straightforward status checks. It is CE certified and built to withstand indoor environments with IP43 protection and IK07 impact resistance, offering durable performance in demanding settings. With 250 lm output and Maintained or Non-Maintained options, it integrates smoothly into existing emergency lighting schemes while reducing lifecycle costs and downtime.
Product Information
Extended Description
FT1SU250CGL13 Eaton Crouse-Hinds: Eaton FlexiTech, Safety light Uniform illumination, 250lm, CGLine+, 1 to 3H
Product Name
Eaton FlexiTech SU SC safety luminaire
Catalog Number
FT1SU250CGL13
Product Length/Depth
231 mm
Product Height
34 mm
Product Width
86 mm
Product Weight
0.36 kg
Certifications
CE
EAN
3660191811938
Application
Other
Mounting Method
Wall surface mounted / ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Not applicable
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route lighting
Kind of luminaire
Safety luminaire for escape route and open area lighting
Labelling type
Other
Light distributor
Diffuser lens/optic/panel
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
False
With remote switch connection
True
Color housing
White
Degree of protection
IP43
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A++, A+, A (LED)
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
Feature: 250 lm output with white LED and diffuser lens for uniform illumination. Business impact: enhances visibility along escape routes, improving occupant safety and compliance while reducing maintenance calls. Application: ideal for corridors and open areas in industrial facilities. Feature: CGLine+ testing and safety monitoring compatibility. Business impact: simplifies periodic testing and central fault detection, lowering verification time and enhancing reliability. Application: suitable for facilities with centralized safety management. Feature: Maintained / Non-Maintained (M / NM) mode. Business impact: flexible operation to meet varying code requirements and energy management strategies. Application: aligns with building automation and retrofits in existing installations. Feature: Peripheral lithium‑ion battery with plug-in connection. Business impact: fast installation, extended lifespan, and easier replacement without bespoke power solutions. Application: plug‑and‑play deployment in new builds or refurbishments. Feature: Wall surface mounted / ceiling surface mounting with IP43 and IK07 ratings. Business impact: robust indoor performance in workshops and production floors, reducing risk of dust ingress and impact damage. Application: durable for high-traffic areas with frequent access. Feature: White housing with plastic cover and removable diffuser. Business impact: lightweight, easy maintenance, and cost-effective replacements while maintaining a clean aesthetic in industrial interiors. Application: site-wide retrofit projects and new builds. Feature: Remote switch connection option and Pictogram flexibility. Business impact: enables remote control integration and adaptable signaling to fit facility standards. Application: control room interfaces and safety signaling workflows.
Get a Quick Quote for a Eaton Crouse-Hinds FT1SU250CGL13
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT1SU250CGL13?
Enquire Now
FAQs
The FT1SU250CGL13 supports wall surface mounting and ceiling surface mounting, enabling flexible installation for corridors and open areas. Its plug-in connection simplifies retrofits, while the remote switch option provides convenient integration with existing building control systems. Ensure the mounting surface is within the IP43 protection scope to preserve performance in indoor environments.
The unit delivers 250 lm of white LED illumination and uses lithium-ion batteries. It supports both Maintained and Non-Maintained modes, with a central emphasis on reliable operation during power outages. The plug-in battery design facilitates straightforward replacement, minimizing downtime during maintenance cycles.
Yes. It is designed for indoor use with IP43 protection and IK07 impact resistance, making it suitable for industrial interiors. It provides uniform escape route lighting, supports wall/ceiling mounting, and integrates with CGLine+ monitoring, ensuring reliability in high-traffic areas while meeting typical industry safety standards.
The luminaire carries CE certification, IP43 protection, and IK07 impact rating, indicating compliance with essential safety and durability requirements for indoor electrical installations. These ratings support regulatory compliance for occupancy safety and durability under routine mechanical impacts in industrial environments.
CGLine+ offers centralized monitoring compatibility that helps detect failures in the emergency circuit proactively, reducing unplanned downtime. The combination of a lithium-ion battery and plug-in design shortens maintenance cycles, while Maintained/NM modes optimize energy use and lifecycle costs, delivering a favorable return on investment through improved reliability and easier testing.
