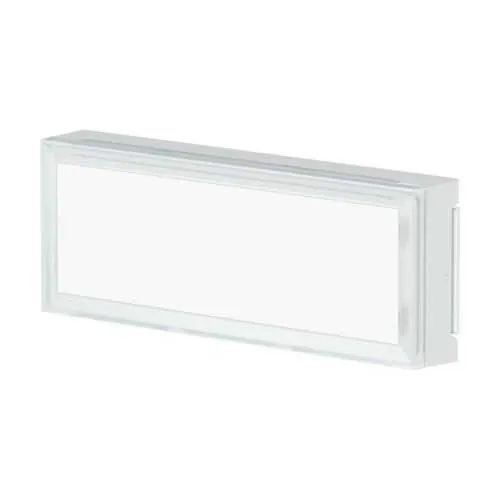

Eaton FT1SU250CGL13IP Safety luminaire - IP66
Part Number: FT1SU250CGL13IP
Quick Summary
The Eaton FT1SU250CGL13IP Safety luminaire is a compact, reliable escape-route lighting solution for challenging industrial spaces. If you struggle with outages or downtime in critical zones, this unit’s maintained and non-maintained options help you stay compliant without compromising safety. With CE certification, IP66 protection, and IK07 impact resistance, it meets rigorous industry standards while CGLine+ testing adds extra assurance for monitoring and reliability. Designed for wall or ceiling mounting, it integrates with peripheral battery systems and plug-in connections to simplify installation and reduce total cost of ownership for facility managers and electricians alike.
Product Information
Extended Description
FT1SU250CGL13IP Eaton Crouse-Hinds: Eaton FlexiTech, Safety light Uniform illumination, 250lm, CGLine+, 1 to 3H,IP66
Product Name
Eaton FlexiTech SU SC safety luminaire
Catalog Number
FT1SU250CGL13IP
Product Length/Depth
231 mm
Product Height
34 mm
Product Width
86 mm
Product Weight
0.36 kg
Certifications
CE
EAN
3660191811914
Application
Other
Mounting Method
Wall surface mounted / ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Not applicable
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route lighting
Kind of luminaire
Safety luminaire for escape route and open area lighting
Labelling type
Other
Light distributor
Diffuser lens/optic/panel
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
False
With remote switch connection
True
Color housing
White
Degree of protection
IP66
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A++, A+, A (LED)
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
The 250 lumen output delivers uniform white illumination across escape routes, improving occupant visibility during emergencies and audits. This luminaire’s diffuser lens and robust plastic housing provide durable performance in high-traffic industrial environments, supporting a longer service life and reduced maintenance cycles. Mounting flexibility enables wall surface or ceiling surface installation, accelerating retrofits and installations in constrained spaces. The product’s peripheral battery power supply and lithium-ion cells ensure continued operation during mains outages, enhancing safety and compliance for critical facilities. With CGLine+ testing and safety monitoring options, facility managers gain proactive fault detection and reduced risk of unexpected downtime. The Maintained / Non-Maintained mode (M / NM) lets designers tailor illumination to specific risk assessments, optimizing energy use and cost. Overall, this luminaire integrates easily with existing emergency systems, speeding commissioning and lowering installation costs while meeting ISO and regional standards.
Get a Quick Quote for a Eaton Crouse-Hinds FT1SU250CGL13IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT1SU250CGL13IP?
Enquire Now
FAQs
The FT1SU250CGL13IP supports wall surface mounting and ceiling surface mounting, enabling flexible installation in constrained spaces and reducing retrofit costs while preserving escape-route illumination across different room configurations.
It uses an AC power supply with a peripheral battery system (Lithium-ions) and a plug-in connection. The luminaire offers Maintained and Non-Maintained (M/NM) operation, ensuring reliable lighting during outages and easy integration with central monitoring systems.
Yes, it features an IP66 protection rating and IK07 impact strength, making it suitable for demanding industrial interiors. It is CE certified but is not explosion-proof, so avoid use in hazardous or explosion-risk zones per applicable regulations.
CGLine+ testing provides enhanced monitoring and verification of the safety lighting circuit, enabling proactive alerts, reducing unplanned downtime, and helping you demonstrate compliance during audits and inspections.
By combining 250 lm of efficient LED light, long service life, maintained operation during outages, and simple plug-in installation, the FT1SU250CGL13IP lowers maintenance costs, reduces energy waste, and accelerates commissioning, leading to faster payback and lower total cost of ownership for industrial facilities.
