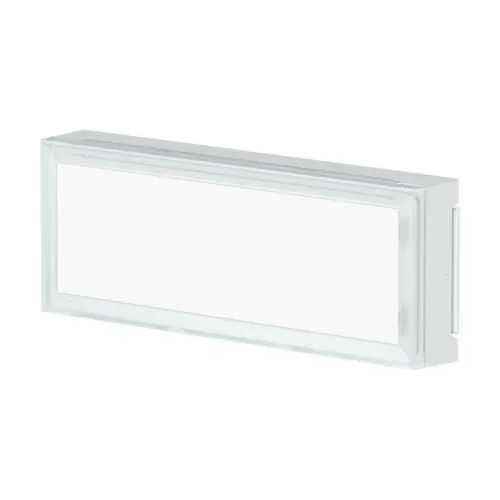

Eaton FT1SU400ATT13IP Safety luminaire - IP66
Part Number: FT1SU400ATT13IP
Quick Summary
The Eaton FT1SU400ATT13IP safety luminaire delivers reliable escape route lighting for industrial facilities. In harsh environments, failed emergency lighting can halt production and compromise safety, making maintenance planning challenging. Certified CE, IP66 enclosure, and IK07 impact rating ensure resilience and compliance in demanding applications. Designed for wall or ceiling mounting with a plug-in connection and a peripheral lithium-ion battery, it delivers 400 lm of LED light and supports maintained and non-maintained operation, offering predictable performance and reduced total cost of ownership. Its automatic self-test and remote switch compatibility simplify regulatory reporting and keep safety teams confident in everyday operation.
Product Information
Extended Description
FT1SU400ATT13IP Eaton Crouse-Hinds: Eaton FlexiTech exit sign, Safety light Uni. illu., 400lm, AT, MNM, Tel, 1 to 3H, IP66
Product Name
Eaton FlexiTech SU SC safety luminaire
Catalog Number
FT1SU400ATT13IP
Product Length/Depth
231 mm
Product Height
34 mm
Product Width
86 mm
Product Weight
0.4 kg
Certifications
CE
EAN
3660191811952
Application
Other
Mounting Method
Wall surface mounted / ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Not applicable
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route lighting
Kind of luminaire
Safety luminaire for escape route and open area lighting
Labelling type
Other
Light distributor
Diffuser lens/optic/panel
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
False
With remote switch connection
True
Color housing
White
Degree of protection
IP66
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A++, A+, A (LED)
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Automatic self test
Testing system
Auto-Test
Feature: 400 lm LED output with high color fidelity enables clear signage and safe egress in variable conditions. Business Impact: Improves occupant safety while reducing rework and outages during night shifts or high-dust environments. Application: Ideal for industrial corridors and open areas where reliable visibility is critical. Feature: IP66 enclosure and IK07 impact rating protect the luminaire against dust, powerful jets of water, and mechanical shocks. Business Impact: Extends service life in demanding environments and lowers replacement costs. Application: Suitable for wall or ceiling mounting in manufacturing floors, warehouses, and load docks. Feature: Peripheral lithium-ion battery with a plug-in connection ensures independent emergency power without complex wiring. Business Impact: Improves uptime during mains outages and simplifies field maintenance. Application: Emergency lighting for areas requiring quick restart after outages. Feature: Maintained / Non-Maintained (M/NM) mode and automatic self-test provide flexible operation and ongoing health checks. Business Impact: Reduces manual testing cycles and compliance overhead. Application: Facilities with stringent safety standards and frequent inspections. Feature: Compact form factor (231 mm L Ă— 86 mm W Ă— 34 mm H) with lightweight construction (0.4 kg) and diffuser lens for uniform illumination. Business Impact: Simplifies installation and reduces support costs. Application: retrofit into existing fixtures or new builds with minimal ballast considerations.
Get a Quick Quote for a Eaton Crouse-Hinds FT1SU400ATT13IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT1SU400ATT13IP?
Enquire Now
FAQs
Install FT1SU400ATT13IP on a suitable wall or ceiling surface using the provided plug-in connection. Verify IP66-rated enclosure, position for optimal escape route illumination, and connect to the peripheral (individual) battery circuit. Ensure mains supply is AC and plan for either maintained or non-maintained operation. Compliance checks with CE are recommended after installation.
Key specs include 400 lumen LED output, AC voltage supply, diffuse white light, CRI around 80, and energy efficiency class LED ratings (A++, A+, A). The unit supports maintained and non-maintained modes, has automatic self-test, and uses a lithium-ion peripheral battery. It is IP66 protected and IK07 impact-rated, suitable for demanding industrial environments.
FT1SU400ATT13IP is designed for indoor industrial use with IP66 protection, which resists dust and powerful jets of water. It is not explosion-protected and is not intended for outdoor installation. For hazardous areas, select equipment with the appropriate ATEX/IECEx certification and enclosure ratings.
The fixture carries CE certification and features an IP66 enclosure along with IK07 impact protection. It is a Class II device, meaning double-insulated construction. These certifications support safe operation in harsh environments and enable compliance with many industrial electrical safety standards.
Automatic self-test reduces manual inspection needs, cutting maintenance labor and downtime. LED longevity and a peripheral lithium-ion battery minimize replacement cycles, while IP66/IK07 construction lowers failure rates in rough environments. Combined with flexible maintained/non-maintained operation, this yields lower total cost of ownership and improved safety uptime.
