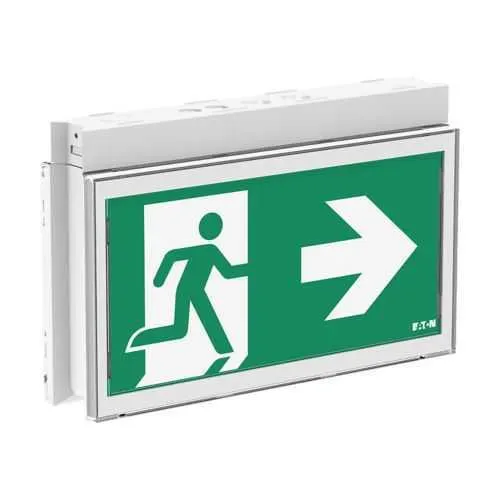

Eaton FT2EC4ICGL18IP ExitSign - CE
Part Number: FT2EC4ICGL18IP
Quick Summary
Exit Sign solutions like the Eaton FT2EC4ICGL18IP deliver reliable ceiling-mounted egress indication for indoor facilities. If you’ve struggled with visibility during maintenance windows or complex testing routines, this unit helps by offering CGLine+ monitoring and straightforward installation. Certified to CE with robust IP65 protection and EN 1838-compliant performance, it integrates seamlessly with modern safety systems. Its compact 229 mm length, white housing, and IK07-rated cover reduce installation time in tight ceilings, while a lithium-ion battery powers the LED sign to minimize maintenance. Ideal for offices, factories, and warehouses, it supports 1 to 8 hours of emergency operation, reducing lifecycle costs and downtime.
Product Information
Extended Description
FT2EC4ICGL18IP Eaton Crouse-Hinds: Eaton FlexiTech, Exit Ceiling, 20m, 4 picto. (DRLU), CGLine+, 1 to 8H, IP65
Product Name
Eaton FlexiTech EC SC exit sign
Catalog Number
FT2EC4ICGL18IP
Product Length/Depth
229 mm
Product Height
50 mm
Product Width
147 mm
Product Weight
0.62 kg
Certifications
CE
EAN
3660191813673
Application
Acc. EN 1838
Mounting Method
Ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Single/double-sided
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route signage
Kind of luminaire
Exit sign luminaire
Labelling type
Insert sheet/plate
Light distributor
Diffuser lens/optic/panel
Luminaire With Limited Surface Temperature, Sign D
False
Pictogram included
True
With remote switch connection
True
Color housing
White
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
eaton-el-cps-catalog-2020-gbr.pdf
eaton-emergency-lighting-self-contained-exit-flexitech-ec-cgl-datasheet-en.pdf
The FT2EC4ICGL18IP uses a self-contained lithium-ion battery and LED light source, delivering reliable, long-life illumination with minimal maintenance. This translates to lower ongoing service costs and fewer operational interruptions in critical evacuation routes. The device adheres to EN 1838 and CE requirements, ensuring compliance across regulated facilities while enabling straightforward commissioning in new builds or retrofits. With CGLine+ compatibility and a safety module for central monitoring, facilities can integrate the sign into existing emergency-management ecosystems, improving test coverage and reducing false alarms. The unit is designed for interior use with ceiling surface mounting, IK07 impact resistance, and a durable white plastic housing that withstands daily warehouse, office, or production-line vibrations. Four pictograms and a single/double-sided configuration provide flexible signaling for complex layouts, while the built-in battery supports 1–8 hours of autonomous operation. Overall, the solution minimizes downtime, supports regulatory compliance, and lowers total cost of ownership through robust hardware and seamless integration.
Get a Quick Quote for a Eaton Crouse-Hinds FT2EC4ICGL18IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT2EC4ICGL18IP?
Enquire Now
FAQs
Install the unit on a ceiling surface using the supplied mounting method. The compact rectangular housing (229 mm x 147 mm x 50 mm) fits typical ceiling voids, reducing retrofit complexity. The device is designed for interior use and includes a plug-in connection for straightforward electrical setup, along with a remote switch connection option for integration with building control systems.
The FT2EC4ICGL18IP operates on AC power with a peripheral, independent lithium-ion battery. It features a non-exchangeable LED light source, an IP65 rated enclosure, and a continuous/emergency wiring system. The unit offers 1 to 8 hours of emergency operation, aligning with standard shift patterns and maintenance cycles while maintaining high visibility.
Yes. The unit supports CGLine+ testing and safety monitoring, enabling centralized health checks and real-time signaling integrity within a safety-management framework. This compatibility helps reduce manual testing workload and improves reliability of exit-signage signaling in complex facilities.
Absolutely. The FT2EC4ICGL18IP is CE-certified, EN 1838 compliant for escape-route illumination, and IP65 protected, making it suitable for interior environments including corridors and stairwells that may encounter dust or moisture exposure. Its IK07 rating also enhances resilience to incidental impacts in busy industrial settings.
With a lithium-ion battery and a non-exchangeable LED source, maintenance intervals are extended and service costs reduced. The unit’s energy efficiency class and compact form factor minimize energy usage and installation time, while CGLine+ compatibility supports proactive health monitoring. In practice, this translates to lower lifecycle costs, less downtime, and faster deployment across multi-site facilities.
