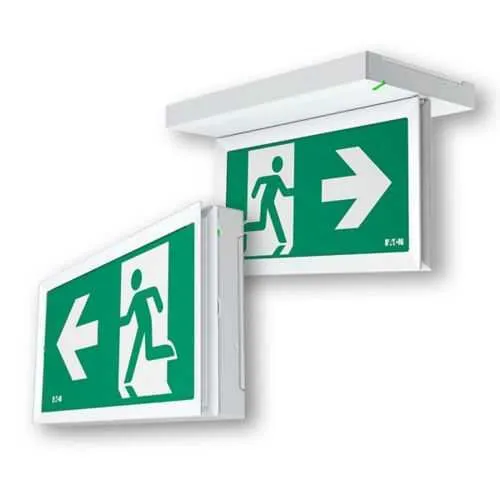

Eaton FT2ED4IATL18 Exit Sign - IP43 Protected (CE)
Part Number: FT2ED4IATL18
Quick Summary
The Eaton FlexiTech ED SC exit sign directs emergency egress in commercial and industrial facilities. Maintenance and battery management challenges can slow safety readiness and complicate audits. CE certification, IP43 ingress protection, and automatic self‑test monitoring help ensure regulatory compliance and reliable operation. Leveraging compact, energy‑efficient LED technology and easy installation supports lower lifecycle costs and faster deployment.
Product Information
Extended Description
FT2ED4IATL18 Eaton Crouse-Hinds: Eaton FlexiTech Emergency Luminaire, Exit Dual pos., 20m, 4 picto. (DRLU), AT, MNM (L'), 1 to 8H
Product Name
Eaton FlexiTech ED SC exit sign
Catalog Number
FT2ED4IATL18
Product Length/Depth
228 mm
Product Height
34 mm
Product Width
120 mm
Product Weight
0.5 kg
Certifications
CE
EAN
3660191806828
Battery voltage
3.2 V
Battery number of cells
1
Battery quality
Lithium-ions
Glow wire test
850 °C
Permissible ambient temperature - min
0 °C
Permissible ambient temperature - max
45 °C
Protection class
II
Outdoor use compliance
False
Explosion protected
False
Degree of protection
IP43
Mode
Maintained / Non-Maintained (M / NM)
Lamp type
LED not exchangeable
With light source
True
Lamp holder
None
Type of indicator
Single/double-sided
Monitoring equipment
Automatic self test
Power supply system
Peripheral (individual battery)
Voltage type
AC
Apparent Power At Mains Operation
5 VA
Power factor
.4
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
False
Reserve-polarity protected
True
Energy efficiency class
A++, A+, A (LED)
Conductor cross section
2.5
Connection type
Plug-in connection
Max. system power
2 W
Nominal voltage AC - max
230 V
Nominal voltage AC - min
230 V
Nominal operation time - min
1 hour
Nominal operation time - max
8 hour
Autonomy
1/8 hours
Mounting Method
Wall surface mounted / ceiling surface mounting
Material housing
Plastic
Color housing
White
Material cover
Plastic, transparent
Labelling type
Insert sheet/plate
Pictogram included
True
Built-in Length
245 mm
Built-in Width
130 mm
Built-in height/depth
50 mm
Number Of Poles (Numeric)
3
Impact strength
IK07
Kind of luminaire
Exit sign luminaire
Rated Luminous Flux Acc. IEC 62722-2-1
60 lm
Color temperature - max
6500 K
Color temperature - min
6500 K
Light distributor
Diffuser lens/optic/panel
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Function
Escape route signage
Color of light
White
Color rendering index (CRI)
80
Number of lighting heads
1
Suitable for number of lamps
1
Viewing distance
20 m
Data connection terminal
0.5 - 2.5 mm²
Frequency
50/60 Hz
Main connection terminal
0.5 - 2.5mm²
Number of LEDs
16
Shape
Rectangular
Total length
228 mm
Application
Acc. EN 1838
Testing system
Auto-Test
eaton-emergency-lighting-self-contained-exit-safety-flexitech-ed-se-brochure-en.pdf
eaton-el-cps-catalog-2020-gbr.pdf
eaton-emergency-lighting-self-contained-exit-safety-flexitech-safety-instructions-all-lang.pdf
eaton-emergency-lighting-self-contained-exit-flexitech-ed-atl-manual-all-lang.pdf
eaton-emergency-lighting-self-contained-exit-flexitech-ed-atl-datasheet-en.pdf
The FT2ED4IATL18 uses a single 3.2 V Li-ion battery with 1 cell, delivering a compact, reliable power source for emergency operation while maintaining a low overall power draw of 2 W. This feature translates into long-term energy efficiency and predictable performance across duty cycles, supporting safer egress in busy facilities and minimizing energy waste. Business impact: reduced energy consumption and lower operating costs; Application: ideal for corridors and exits in offices, factories, and public buildings. The unit supports Maintained and Non-Maintained (M/NM) operation, enabling flexible emergency lighting strategies and simplifying regulatory compliance in varied environments. Application: suitable for installations requiring continuous visibility or occasional emergency mode, with predictable standby behavior and straightforward commissioning.
Get a Quick Quote for a Eaton Crouse-Hinds FT2ED4IATL18
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT2ED4IATL18?
Enquire Now
FAQs
FT2ED4IATL18 installs on a wall or ceiling using a plug-in connection. Connect mains and emergency conductors within 0.5–2.5 mm² terminals, ensuring the continuous circuit and emergency circuit are correctly wired. Set the unit to Maintained or Non-Maintained mode and supply 230 V. After wiring, verify operation and perform the automatic self-test to confirm compliance.
The unit operates at 230 V AC with a maximum power of 2 W and a built-in 3.2 V Li-ion battery (one cell). It provides up to 60 lm of output and supports an autonomy range of 1 to 8 hours depending on mode and ambient conditions, with both Maintained and Non-Maintained configurations available for flexible safety planning.
Yes. The FT2ED4IATL18 is designed for EN 1838 compliance, featuring auto-test monitoring and CE marking. Its 6500 K white light, IP43 protection, and pictogram options align with common industry requirements for escape route signage, ensuring reliable performance in typical building safety designs while simplifying compliance auditing.
The unit carries CE certification and IP43 ingress protection, with IK07 impact resistance for basic durability. It uses a plastic housing and a white finish, suitable for indoor installations. The device also employs reserve polarity protection to safeguard connections and maintains energy efficiency with LED illumination rated at A++–A (LED).
Auto-test reduces manual inspection cycles, lowering maintenance labor costs and ensuring ongoing compliance. With a 60 lm LED output and low 2 W power draw, energy consumption remains minimal. The one-cell Li-ion battery simplifies replacement logistics, and the 1–8 hour autonomy supports varied usage scenarios, providing predictable maintenance intervals and faster time-to-value in facilities.
