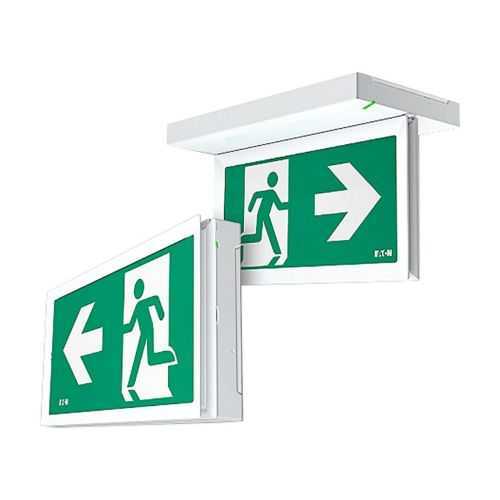

Eaton FT2ED4IATT181 Exit Sign - CE Mark, 60 lm LED, IP43
Part Number: FT2ED4IATT181
Quick Summary
The Eaton FlexiTech ED SC exit sign is an LED-based escape signage solution engineered for indoor corridors and exits. It helps facilities overcome visibility gaps during power interruptions while balancing energy use and maintenance. With CE marking and IP43 protection, it is designed for controlled environments and compliant installations, ensuring reliable operation from 0 to 45 °C. The Maintained / Non-Maintained modes, automatic self-test, and plug-in wiring deliver predictable performance with minimal downtime. This combination supports safer evacuations and lower total cost of ownership in industrial, commercial, and institutional settings, while enabling straightforward retrofits and scalable deployment across multiple sites.
Product Information
Extended Description
FT2ED4IATT181 Eaton Crouse-Hinds: Eaton FlexiTech, Exit Dual position, 20m, 4 picto. (DRLU), AT, MNM, Tel, 1 to 8H.
Product Name
Eaton FlexiTech ED SC exit sign
Catalog Number
FT2ED4IATT181
Product Length/Depth
228 mm
Product Height
34 mm
Product Width
120 mm
Product Weight
0.473 kg
Compliances
CE marking
Certifications
CE
EAN
3660191813086
Battery voltage
3.2 VDC
Battery number of cells
1
Battery quality
Lithium-ions
Glow wire test
850 °C
Permissible ambient temperature - min
0 °C
Permissible ambient temperature - max
45 °C
Protection class
II
Outdoor use compliance
False
Explosion protected
False
Degree of protection
IP43
Mode
Maintained / Non-Maintained (M / NM)
Lamp type
LED not exchangeable
With light source
True
Lamp holder
None
Type of indicator
Single/double-sided
Monitoring equipment
Automatic self test
Power supply system
Peripheral (individual battery)
Voltage type
AC
Apparent Power At Mains Operation
5 VA
Power factor
.4
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
True
Reserve-polarity protected
True
Energy efficiency class
A++, A+, A (LED)
Conductor cross section
2.5
Connection type
Plug-in connection
Max. system power
2 W
Nominal voltage AC - max
230 V
Nominal voltage AC - min
230 V
Nominal operation time - min
1 hour
Nominal operation time - max
8 hour
Autonomy
1/8 hours
Mounting Method
Wall surface mounted / ceiling surface mounting
Material housing
Plastic
Color housing
White
Material cover
Plastic, transparent
Labelling type
Insert sheet/plate
Pictogram included
True
Built-in Length
245 mm
Built-in Width
130 mm
Built-in height/depth
50 mm
Number Of Poles (Numeric)
2
Impact strength
IK07
Kind of luminaire
Exit sign luminaire
Rated Luminous Flux Acc. IEC 62722-2-1
60 lm
Color temperature - max
6500 K
Color temperature - min
6500 K
Light distributor
Diffuser lens/optic/panel
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Function
Escape route signage
Color of light
White
Color rendering index (CRI)
80
Number of lighting heads
1
Suitable for number of lamps
1
Viewing distance
20 m
Data connection terminal
0.5-2.5 mm²
Frequency
50/60 Hz
Main connection terminal
0.5 - 2.5mm²
Number of LEDs
16
Shape
Rectangular
Total length
228 mm
Application
Acc. EN 1838
Testing system
Auto-Test
Feature: Dual-mode operation supports Maintained and Non-Maintained configurations. Business impact: Flexible lifecycle management and compliance for projects that require emergency signage during normal power or outages. Application: Hotels, hospitals, and office corridors where sign visibility must remain constant or switchable depending on occupancy. Feature: Automatic self-test reduces manual inspections. Business impact: Improves compliance posture and lowers labor costs by ensuring ongoing performance without scheduled visits. Application: Data centers and manufacturing plants with strict uptime requirements. Feature: 60 lm flux and 6500 K color temperature with 16 LEDs. Business impact: High-contrast, rapid readability at extended viewing distances while maintaining energy efficiency. Application: High-traffic corridors and stairwells in industrial facilities. Feature: IP43 and plastic housing with wall or ceiling mounting. Business impact: Durable indoor installation that supports quick retrofits and adaptable layouts. Application: Retrofit projects in existing buildings where mounting flexibility saves time and costs. Feature: Plug-in connection and 0.5–2.5 mm² wiring. Business impact: Simplified wiring, faster commissioning, and reduced installation risk. Application: Electrical contractor projects and on-site upgrades. Feature: Lithium-ion backup battery (3.2 VDC, 1 cell) with 1/8 to 8 hour autonomy. Business impact: Reliable emergency lighting during outages and extended operation without external power. Application: Emergency evacuation signage in controlled environments. Feature: Energy efficiency class (A++, A+, A LED) and max 2 W system power. Business impact: Lower energy bills and reduced heat load across multiple units. Application: Large-scale installations and multi-sign sign networks.
Get a Quick Quote for a Eaton Crouse-Hinds FT2ED4IATT181
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT2ED4IATT181?
Enquire Now
FAQs
Installation is designed to be straightforward with wall surface mounting or ceiling surface mounting and a plug-in connection. Use the main connection terminal rated 0.5–2.5 mm² and connect to a 230 V AC supply. The unit supports both Maintained and Non-Maintained modes and includes an automatic self-test to simplify commissioning and ongoing compliance.
The exit sign operates at nominal 230 V AC, 50/60 Hz, with a max apparent power of 5 VA and a total system power of 2 W. It houses a 3.2 VDC Li-ion battery (1 cell) and provides an autonomous operation window from 1 hour to 8 hours, depending on mode and conditions, ensuring evacuation signage remains visible during outages.
No, this model is designed for indoor use with IP43 protection. It is not rated for outdoor exposure or explosion-protected environments. Operability is specified for ambient temperatures between 0 °C and 45 °C, in controlled indoor spaces typical of offices, corridors, and production areas.
Yes, the unit features a remote switch connection capability and a continuous circuit/emergency circuit, enabling integration with building controls where required. This supports coordinated evacuation signaling and can simplify phased releases in larger facilities.
Automatic self-test reduces manual inspection labor and lowers the risk of unnoticed battery or LED degradation. Combined with the 60 lm LED output and low 2 W power draw, it delivers improved reliability, faster commissioning, and lower total cost of ownership across multi-unit deployments.
