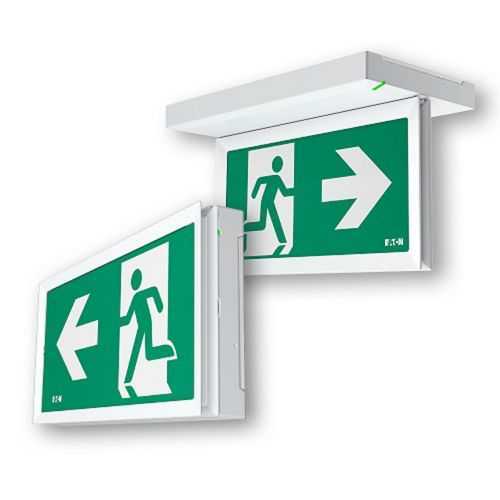

Eaton FT2ED4ICGL18 Exit Sign - IP43 certified rating

Part Number: FT2ED4ICGL18
FT2ED4ICGL18
Manufacturer
Eaton Crouse-Hinds
Part number
FT2ED4ICGL18
Category

Quick Summary

Eaton FT2ED4ICGL18 Exit Sign delivers reliable, energy-efficient emergency guidance for commercial and industrial facilities. Maintenance cycles and compliance tracking can be costly when design requires centralized monitoring or frequent battery swaps. This unit carries CE certification, IP43 protection, and EN 1838 escape-route compliance, with CGLine+ diagnostics support for reliability. This combination delivers reduced downtime, predictable maintenance, and a lower total cost of ownership for facilities. The product also aligns with LED-based emergency lighting expectations and offers a compact solution that simplifies retrofits while delivering robust performance for everyday use.

Product Information

Extended Description

FT2ED4ICGL18 Eaton Crouse-Hinds: Eaton FlexiTech ED exit sign, Exit Dual pos., 20m, 4 picto. (DRLU), CGLine+, 1-8H
Product Name
Eaton FlexiTech ED SC exit sign
Catalog Number
FT2ED4ICGL18
Product Length/Depth
228 mm
Product Height
34 mm
Product Width
120 mm
Product Weight
0.5 kg
Certifications
CE
EAN
3660191806804
Battery voltage
3.2 V
Battery number of cells
1
Battery quality
Lithium-ions
Glow wire test
850 °C
Permissible ambient temperature - min
0 °C
Permissible ambient temperature - max
45 °C
Protection class
II
Outdoor use compliance
False
Explosion protected
False
Degree of protection
IP43
Mode
Maintained / Non-Maintained (M / NM)
Lamp type
LED not exchangeable
With light source
True
Lamp holder
None
Type of indicator
Single/double-sided
Monitoring equipment
Safety module for monitoring (central feeded system)
Power supply system
Peripheral (individual battery)
Voltage type
AC
Apparent Power At Mains Operation
5 VA
Power factor
.4
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
True
Reserve-polarity protected
True
Energy efficiency class
A++, A+, A (LED)
Conductor cross section
2.5
Connection type
Plug-in connection
Max. system power
2 W
Nominal voltage AC - max
230 V
Nominal voltage AC - min
230 V
Nominal operation time - min
1 hour
Nominal operation time - max
8 hour
Autonomy
1/8 hours
Mounting Method
Wall surface mounted / ceiling surface mounting
Material housing
Plastic
Color housing
White
Material cover
Plastic, transparent
Labelling type
Insert sheet/plate
Pictogram included
True
Built-in Length
245 mm
Built-in Width
130 mm
Built-in height/depth
50 mm
Number Of Poles (Numeric)
3
Impact strength
IK07
Kind of luminaire
Exit sign luminaire
Rated Luminous Flux Acc. IEC 62722-2-1
60 lm
Color temperature - max
6500 K
Color temperature - min
6500 K
Light distributor
Diffuser lens/optic/panel
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Function
Escape route signage
Color of light
White
Color rendering index (CRI)
80
Number of lighting heads
1
Suitable for number of lamps
1
Viewing distance
20 m
Data connection terminal
0.5 - 2.5 mm²
Frequency
50/60 Hz
Main connection terminal
0.5 - 2.5mm²
Number of LEDs
16
Shape
Rectangular
Total length
228 mm
Application
Acc. EN 1838
Testing system
CGLine +
eaton-emergency-lighting-self-contained-exit-safety-flexitech-ed-se-brochure-en.pdf eaton-el-cps-catalog-2020-gbr.pdf eaton-emergency-lighting-self-contained-exit-safety-flexitech-ed-se-certificate-doc-en-fr-de.pdf eaton-emergency-lighting-self-contained-exit-safety-flexitech-safety-instructions-all-lang.pdf eaton-emergency-lighting-self-contained-exit-flexitech-ed-cgline-plus-datasheet-en.pdf
Feature Battery and power system: The FT2ED4ICGL18 uses a 3.2 V lithium-ion single-cell battery with peripheral (individual) power supply. Business impact: Ensures reliable operation during mains outages and minimizes preventive maintenance intervals. Application: Ideal for self-contained exit signage in corridors and egress routes where battery autonomy supports 1 to 8 hours of operation. Feature Lighting performance: 16 LEDs deliver up to 60 lm with white light at 6500 K and CRI around 80. Business impact: Provides bright, legible signage with high visibility at typical viewing distances while maintaining energy efficiency (A++/A+ LED rating). Application: EN 1838-compliant escape signage for industrial and commercial interiors. Feature Compatibility and installation: Plug-in connection with 2.5 mm² conductors and options for wall or ceiling mounting; supports remote switch connection. Business impact: Reduces installation time, supports easy retrofits, and enables integration with existing control strategies. Application: Shop floors, corridors, stairwells in manufacturing or logistics facilities. Feature Monitoring and safety: Safety module for monitoring with reserve-polarity protection and central-feed compatibility. Business impact: Improves reliability in central monitoring scenarios, reduces risk of miswiring, and supports safer operation during outages. Application: Centralized emergency lighting systems and distributed egress signage networks. Feature Durability and environment: IP43 protection, IK07 impact, white plastic housing, and 0–45 °C ambient range. Business impact: Tough enough for busy facilities and varied indoor environments, with durable materials that minimize service calls. Application: Indoor installations in warehouses, offices, and production areas.

Get a Quick Quote for a Eaton Crouse-Hinds FT2ED4ICGL18

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds FT2ED4ICGL18? Enquire Now

FAQs

Installation supports wall surface mounting or ceiling surface mounting with a plug-in connection suitable for 0.5–2.5 mm² conductors. The unit accommodates a remote switch connection and uses a peripheral (individual) battery power supply. When wiring, ensure correct polarity and follow the CGLine+ installation instructions to enable safe operation and reliable emergency lighting during mains outages.
The device operates on 230 V AC at 50/60 Hz, with a 3.2 V Li‑ion battery (1 cell) as the power reserve. It offers an apparent mains power of 5 VA and a power factor around 0.4. The system is designed for 1–8 hours autonomy, with the LED source rated at 60 lm and 16 LEDs, providing efficient, long-lasting performance in typical indoor environments.
Yes. The unit is designed as an escape-route signage luminaire, with LED-based illumination and CGLine+ testing support. It complies with EN 1838 guidance for interior emergency lighting, ensuring visibility along escape paths, legibility at the required viewing distances, and reliable operation during outages.
This exit sign carries CE certification and an IP43 protection rating for indoor use. It also features IK07 impact resistance and a maintained/non-maintained mode option. These characteristics support safe, compliant installations in a range of indoor environments while protecting against incidental impacts.
The FT2ED4ICGL18 combines energy-efficient LED technology with a long-life Li‑ion battery and centralized monitoring compatibility, reducing annual energy costs and maintenance visits. The compact, plug-in design accelerates retrofits, while reserve-polarity protection and CGLine+ diagnostics help prevent outages, delivering lower total cost of ownership for facility operators.
