Eaton FT2ED4ICGS Exit Sign - CE, IP43, 228 x 120 x 34 mm
Part Number: FT2ED4ICGS
Quick Summary
The Eaton FlexiTech ED CBS exit sign provides reliable emergency egress indication for commercial and industrial facilities. In fast-paced environments, unclear signage or failing lighting can compromise safety and delay evacuations during power outages. This unit carries CE certification, IP43 protection, IK07 impact resilience, and EN 1838-aligned pictograms to support compliant operations. Its LED illumination delivers low energy use and long life, while central-battery compatibility reduces maintenance cycles. For engineering teams, this means safer exits, clearer wayfinding, and a lower total cost of ownership across large facilities. Designed for straightforward retrofits and scalable deployment as sites expand. Certified for safety critical signage, it aligns with industry standards and procurement benchmarks.
Product Information
Extended Description
FT2ED4ICGS Eaton Crouse-Hinds: Eaton FlexiTech, Exit sign, Dual position, 20m, 4 Pictogram (DRLU) Down Right Left Up, CG-S
Product Name
Eaton FlexiTech ED CBS exit sign
Catalog Number
FT2ED4ICGS
Product Length/Depth
228 mm
Product Height
34 mm
Product Width
120 mm
Product Weight
0.455 kg
Certifications
CE
EAN
3660191813024
Application
Acc. EN 1838
Mounting Method
Wall surface mounted / ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Single/double-sided
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Central (central battery)
Protection class
II
Voltage type
AC/DC
Function
Escape route signage
Kind of luminaire
Exit sign luminaire
Labelling type
Insert sheet/plate
Light distributor
Diffuser lens/optic/panel
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
True
Color housing
White
Degree of protection
IP43
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A++, A+, A (LED)
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CG technology STAR technology STAR+ technology
FlexiTech ED - BIM files
Emergency Lighting (Self-contained) - Global catalogue
FlexiTech ED and SE CG-S - IEC
FlexiTech ED and SE CG-S - IEC
FlexiTech ED CG-S - Manual
FlexiTech ED CG-S - Datasheet
Feature: Dual-position operation (Maintained and Non-Maintained) provides continuous visibility during outages or normal operation. Business Impact: this flexibility reduces risk of unlit exits and simplifies compliance audits across facilities. Application: ideal for corridors, stairwells, and other escape routes where power reliability varies and electrical codes require clear, persistent signage. Feature: LED light source with high energy efficiency class (A++, A+, A) and CRI of 80 delivers bright, uniform illumination. Business Impact: lowers energy costs and extends LED life, reducing maintenance intervals and replacement parts. Application: indoor emergency signage in office blocks, plants, and commercial spaces where sign legibility matters day and night. Feature: Central (central battery) power supply provides reliable backup during outages. Business Impact: ensures occupants can follow exit routes even when mains fail, supporting safety certifications. Application: large campuses or facilities with centralized back-up systems that need scalable, centralized monitoring. Feature: Pictogram set DRLU included (4 pictograms) with insert sheet, compatible with EN 1838. Business Impact: enhances universal comprehension and reduces misinterpretation across multilingual workforces. Application: signage across multi-tenant buildings and industrial plants. Feature: IP43 protection and IK07 impact resistance in a plastic housing. Business Impact: durable performance in busy environments, lowering replacement costs and downtime. Application: warehouses, production halls, and maintenance areas where signage faces dust, impacts, and cleaning. Feature: Plug-in connection and wall or ceiling mounting options simplify installation and future relocation. Business Impact: speeds up commissioning, minimizes labour, and supports retrofit projects. Application: retrofit upgrades or new installations in corridors and egress spaces. Feature: Safety monitoring module compatibility for central feed systems. Business Impact: enhanced reliability and real-time status checks. Application: facilities with centralized monitoring architecture.
Get a Quick Quote for a Eaton Crouse-Hinds FT2ED4ICGS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT2ED4ICGS?
Enquire Now
FAQs
FT2ED4ICGS supports wall surface mounting and ceiling surface mounting, enabling flexible installation in corridors and lobbies. It complies with EN 1838 escape route signage standards, ensuring legibility and correct pictogram orientation. The compact rectangular housing is white and suitable for indoor use, while the central battery option supports unified monitoring with other safety devices on site.
Electrical requirements include a central (central battery) power supply with a plug-in connection, suitable for AC/DC input. The unit supports Maintained and Non-Maintained modes for varied outage strategies and uses a non-explosion protected design with Class II protection. The wiring method is straightforward, allowing quick commissioning and easier changes to power configurations as site needs evolve.

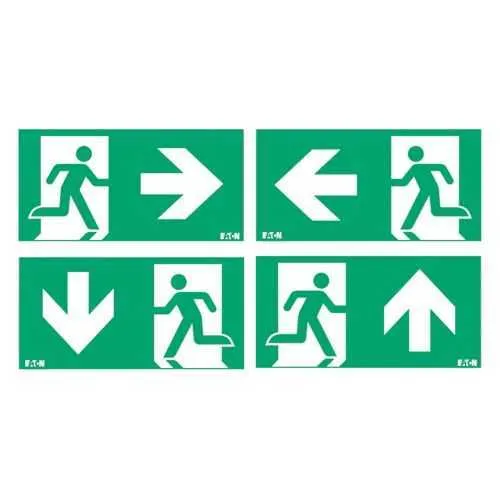

Four pictograms are included DRLU to cover Down, Right, Left, and Up directions, with an insert sheet for customization. This improves readability in complex spaces and multilingual environments. The DRLU set is designed to meet EN 1838 visual requirements, aiding consistent wayfinding across busy industrial areas.
IP43 rating protects against solid objects larger than 1.3 mm and water spray from certain angles, while IK07 provides impact resistance to withstand accidental bumps. In industrial environments, this combination reduces maintenance calls and sign replacement, ensuring reliable visibility in dusty workshops, loading docks, production halls, and high-traffic corridors, even during frequent cleaning. This reliability supports safety programs and audit readiness.
Maintenance and ROI: LED-based exit signage with a central battery reduces energy use and maintenance visits. Expect longer intervals between lamp or battery replacements, lower spare parts inventory, and improved uptime during outages. For large sites, centralized monitoring further enhances ROI by enabling proactive service and faster fault isolation.
