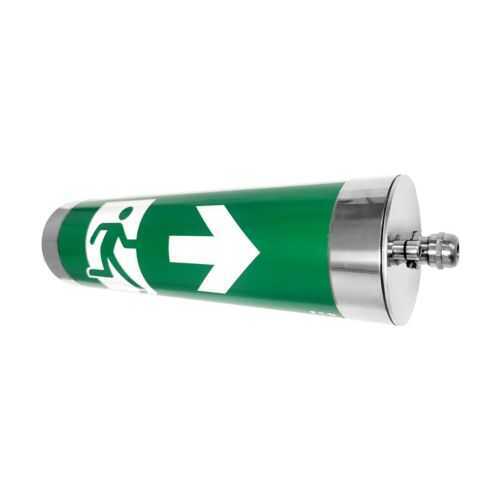

Eaton FlexiTech FT2ET4ACGL18IP Exit Sign Luminaire - IP66/IP68
Part Number: FT2ET4ACGL18IP
Quick Summary
Eaton FlexiTech exit sign luminaire provides reliable indoor emergency lighting for escape routes and corridors. This design addresses common retrofit challenges where long-term reliability and ease of maintenance are critical during outages. The unit carries CE certification and robust protection ratings IP66/IP68 with IK10 impact resistance, ensuring dependable performance in demanding environments. EN 1838 compliance is supported, reinforcing safe egress signage. Coupled with CGLine+ monitoring compatibility and straightforward plug-in connections, it delivers measurable business value by reducing downtime, supporting compliant installations, and lowering lifecycle costs for building operators and maintenance teams.
Product Information
Extended Description
FT2ET4ACGL18IP Eaton Crouse-Hinds: EATON FlexiTech Tube, Exit, 24m, delivered with picto (DLRU), CGLine+, 1-8H, IP
Product Name
Eaton FlexiTech tube SC exit sign and safety luminaire
Catalog Number
FT2ET4ACGL18IP
Product Length/Depth
362 mm
Product Height
119 mm
Product Width
100 mm
Product Weight
1.824 kg
Certifications
CE
EAN
3660191815813
Model Code
FLEXITECH EXIT TUBE CGLINE+, 1-8H IP
Application
Acc. EN 1838
Mounting Method
Wall surface mounted / ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Only single-sided
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route signage
Kind of luminaire
Exit sign luminaire
Labelling type
Sticker
Light distributor
Diffuser lens/optic/panel
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
True
With remote switch connection
True
Color housing
White
Degree of protection
IP66 IP68
Impact strength
IK10
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Other
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Other
With light source
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
Feature: Built-in LED with high energy efficiency. Business Impact: Lower operating costs due to LED efficiency class A++, A+, and long service life. Application: Indoor exit signage where energy consumption and reliability are critical. Feature: Maintained / Non-Maintained operation (M / NM) with peripheral battery backup. Business Impact: Ensures visibility during power outages and safe egress in all operating modes. Application: Compliance-driven installations in corridors and exit routes. Feature: IP66/IP68 ingress protection and IK10 impact strength. Business Impact: Robust performance in dusty or wet indoor environments and impact resistance against accidental impacts. Application: Industrial facilities, warehouses, and production areas requiring durable signage. Feature: Pictogram included and CGLine+ compatibility with remote monitoring. Business Impact: Clear signaling with centralized status monitoring to reduce maintenance visits and improve fault visibility. Application: Large facilities with central safety monitoring systems. Feature: Wall or ceiling surface mounting with plug-in connection. Business Impact: Flexible installation options and simplified wiring, reducing installation time and on-site labor. Application: New builds and retrofits where quick integration is beneficial. Feature: White housing with diffuser lens and 362 mm length. Business Impact: Aesthetic integration with interior design while delivering uniform light distribution for emergency signage. Application: Corporate offices, healthcare facilities, and educational campuses.
Get a Quick Quote for a Eaton Crouse-Hinds FT2ET4ACGL18IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT2ET4ACGL18IP?
Enquire Now
FAQs
The FT2ET4ACGL18IP supports wall surface mounting or ceiling surface mounting, with a plug-in connection and a continuous circuit/emergency circuit wiring system. It also offers remote switch connection and is compatible with CGLine+ monitoring, enabling centralized fault reporting. This combination simplifies retrofits and new installations while meeting EN 1838 signage requirements.
The unit uses a lithium-ions battery with maintained and non-maintained operation, an AC voltage input, and an energy efficiency class of A++, A+, or A (LED). It is designed for indoor use with a color temperature described as white light, CRI around 80, and a non-exchangeable LED module, providing reliable visibility for escape routes.
Yes. The product is specified with EN 1838 compatibility for escape route signage, features a pictogram, and supports CE certification. Its maintained/non-maintained modes and CGLine+ monitoring readiness further ensure compliance and reliable operation during emergencies in indoor corridors and assembly spaces.
The FT2ET4ACGL18IP carries CE certification and IP66/IP68 ingress protection with IK10 impact strength, ensuring suitability for demanding indoor environments. It also aligns with EN 1838 for escape signage and carries an EAN for traceability. These certifications support safety, reliability, and regulatory compliance in industrial settings.
CGLine+ compatibility enables centralized monitoring of the safety lighting system, reducing routine site checks and enabling proactive maintenance. The LED’s long life, battery backup, and plug-in installation shorten service intervals, lowering lifecycle costs and improving uptime for critical exit signage in facilities with complex safety requirements.
