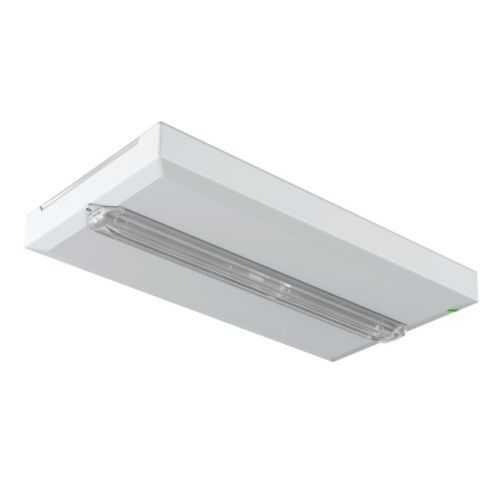

Eaton FT2SE150ATT13IP Emergency luminaire - IP65
Part Number: FT2SE150ATT13IP
Quick Summary
FT2SE150ATT13IP is an emergency luminaire engineered for escape routes and open areas, providing reliable 150 lumens of LED light when power fails. In demanding facilities, downtime for lighting during outages creates safety and compliance risks; this unit addresses that by delivering maintained or non-maintained operation with a plug-in connection for fast, straightforward installation. The product carries CE certification and IP65 protection, along with IK07 impact resistance, ensuring durability in harsh environments. It also supports automatic self-test monitoring, helping maintenance teams meet routine testing requirements without manual checks. For installers and engineers, the combination of surface ceiling mounting, lithium-ion battery flexibility, and a clear, focal lens design delivers predictable performance and lower total cost of ownership.
Product Information
Extended Description
FT2SE150ATT13IP Eaton Crouse-Hinds: Eaton FlexiTech, Safety Escape Route, 150lm, AT, MNM, Tel, 1 to 3H, IP65
Product Name
Eaton FlexiTech SE SC emergency luminaire
Catalog Number
FT2SE150ATT13IP
Product Length/Depth
228 mm
Product Height
31 mm
Product Width
120 mm
Product Weight
0.4 kg
Certifications
CE
EAN
3660191806989
Application
Other
Mounting Method
Ceiling surface mounting
Outdoor use compliance
False
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route lighting
Kind of luminaire
Safety luminaire for escape route and open area lighting
Light distributor
Focal lens
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
False
With remote switch connection
True
Color housing
White
Degree of protection
IP65
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
70
Energy efficiency class
A++, A+, A (LED)
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Automatic self test
Testing system
Auto-Test
eaton-emergency-lighting-self-contained-exit-safety-flexitech-ed-se-brochure-en.pdf
eaton-el-cps-catalog-2020-gbr.pdf
eaton-emergency-lighting-self-contained-exit-safety-flexitech-safety-instructions-all-lang.pdf
eaton-emergency-lighting-self-contained-safety-flexitech-se-att-manual-all-lang.pdf
eaton-emergency-lighting-self-contained-safety-flexitech-se-att-datasheet-en.pdf
The FT2SE150ATT13IP delivers 150 lm LED output with dual operation modes, ensuring safety lighting during outages while keeping maintenance simple and predictable. This translates into reduced downtime and lower risk for personnel in escape routes and open areas. The IP65-rated housing with IK07 impact protection guards against dust, water jets, and physical shocks in demanding industrial environments, enabling longer service intervals and fewer on-site interventions, while surface ceiling mounting simplifies retrofits and new installations alike. The lithium-ion battery and plug-in connection expedite commissioning and enable reliable charging; the peripheral battery design preserves operation even if one cell degrades, reducing outage risk and replacement costs. Automatic self-test and Auto-Test capabilities minimize manual inspections and support compliance reporting, delivering a lower total cost of ownership through smarter maintenance planning. A focal lens and white LED light provide targeted, high-CRI illumination that improves visibility along escape paths, aiding in asset protection and worker safety, with remote switch compatibility for seamless integration with building controls.
Get a Quick Quote for a Eaton Crouse-Hinds FT2SE150ATT13IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT2SE150ATT13IP?
Enquire Now
FAQs
This luminaire is designed for ceiling surface mounting and uses a plug-in connection for fast wiring. It supports maintained and non-maintained modes, and includes a remote switch connection option to integrate with existing building controls. The compact form factor and standard mounting footprints simplify retrofits in industrial ceilings while ensuring IP65 protection remains intact in dusty or wet areas.
The device delivers 150 lumens of white LED light with a CRI around 70 and an energy efficiency class of A++ to A. It operates on AC power with a lithium-ion battery backup, offering 1 to 3 hours of emergency runtime. The housing is Class II, providing electrical safety, while the unit is non-exchangeable in terms of the LED source, ensuring stable performance over its life.
Yes. The FT2SE150ATT13IP is purpose-built for safety lighting in escape routes and open areas within factories or warehouses. Its IP65 rating, IK07 impact resistance, and automatic self-test monitoring support continuous operation under demanding environmental conditions, helping meet safety codes and improve occupant visibility during outages.
The unit carries CE certification, IP65 ingress protection, and IK07 impact resistance, affirming suitability for harsh environments. It operates in a non-explosion-protected context, with a Class II electrical design and a focus on reliable emergency operation and safety compliance through automatic testing and easy maintenance.
Automatic self-test reduces manual inspection labor, providing ongoing assurance of battery readiness and lamp function. Coupled with a long-life lithium-ion battery and straightforward installation, this reduces maintenance frequency, lowers service costs, and shortens ROI payback, especially in facilities with multiple escape route luminaries and stringent safety programs.
