Eaton FT2ST400CGL13IP Exit Sign and Safety Luminaire - IP66/IP68
Part Number: FT2ST400CGL13IP
Quick Summary
Eaton FlexiTech tube SC exit sign and safety luminaire provides maintained escape-route illumination for commercial and industrial spaces. In challenging environments, unreliable emergency lighting and high maintenance costs can drive up risk and downtime. This unit delivers CE certification, IP66/IP68 protection against dust and water, and IK10 impact resistance, ensuring rugged performance. For installers and operators, plug-in connection, ceiling surface mounting, and remote switch compatibility reduce installation time while delivering reliable safety lighting that supports compliant emergency scenarios and long-term operational efficiency.
Product Information
Extended Description
FT2ST400CGL13IP Eaton Crouse-Hinds: EATON FlexiTech Tube, Safety light, 400lm, CGLine+, 1-3H, IP
Product Name

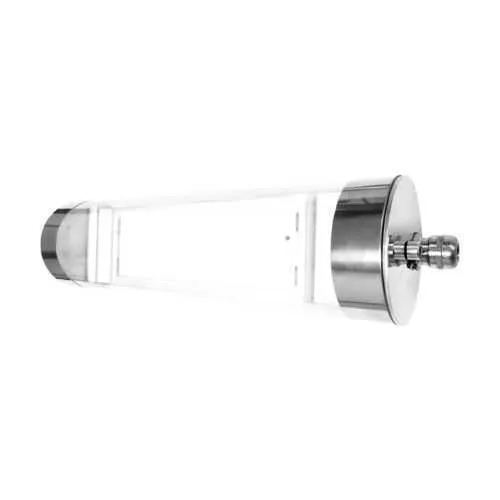

Eaton FlexiTech tube SC exit sign and safety luminaire
Catalog Number
FT2ST400CGL13IP
Product Length/Depth
362 mm
Product Height
119 mm
Product Width
100 mm
Product Weight
1.884 kg
Certifications
CE
EAN
3660191815820
Application
Other
Mounting Method
Ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Not applicable
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route lighting
Kind of luminaire
Safety luminaire for escape route and open area lighting
Light distributor
Diffuser lens/optic/panel
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
False
With remote switch connection
True
Color housing
White
Degree of protection
IP66 IP68
Impact strength
IK10
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Other
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Other
With light source
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
Feature: LED light source delivers 400 lumens of white light with CRI of 80 and high energy efficiency class of LED (A++ to A). Business Impact: Lower energy consumption, improved visibility, and reduced running costs over the luminaire’s life. Application: Ideal for indoor escape route lighting in corridors and open areas where reliable illumination is critical. Feature: Maintained / Non-Maintained (M / NM) operation with CGLine+ monitoring. Business Impact: Ensures continuous safety lighting during power outages and enables proactive fault detection through central monitoring. Application: Central-fed emergency lighting systems in manufacturing floors and large facilities. Feature: Peripheral lithium-ion battery and plug-in connection. Business Impact: Quick replacement, minimal downtime, and dependable standby power. Application: Retrofit or new installations in ceiling-mounted layouts. Feature: IP66/IP68 and IK10-rated housing. Business Impact: Rugged protection against dust, moisture, and impact in demanding environments. Application: Warehouses, production lines, and clean rooms with high risk factors. Feature: White housing with diffuser lens and easy ceiling surface mounting. Business Impact: Aesthetically suitable for interior spaces and simplifies installation for technicians. Application: Corporate facilities, logistics hubs, and open-plan offices requiring compliant exit lighting. The solution also supports automatic testing with CGLine+ and is compatible with remote switch connections for flexible control, addressing common objections about remote operation and maintenance readiness.
Get a Quick Quote for a Eaton Crouse-Hinds FT2ST400CGL13IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT2ST400CGL13IP?
Enquire Now
FAQs
Yes. The unit is designed for ceiling surface mounting and supports remote switch connection, simplifying integration into existing ECC/lighting control schemes. Its compact dimensions (362 mm L Ă— 119 mm H Ă— 100 mm W) and plug-in connection streamline wiring and reduce on-site labor, making it suitable for retrofit projects and new installations in corridors and open areas.
The luminaire uses a peripheral lithium-ion battery pack with a plug-in connection for easy replacement. It operates on AC input with a continuous circuit/emergency circuit wiring system and supports both maintained and non-maintained (M/NM) modes. This configuration enables reliable operation during power loss while allowing straightforward service and monitoring via CGLine+.
Absolutely. With IP66/IP68 protection and IK10 impact resistance, the unit is built for rugged indoor environments. Its 400 lm output, white light, and CRI of 80 provide clear, high-visibility signage and illumination for escape routes in warehouses, factories, and open-plan industrial spaces, while CE certification confirms European compliance for safety and performance.
This model carries CE certification for European safety compliance, IP66/IP68 protection against dust and water ingress, and IK10 impact resistance for mechanical durability. These certifications matter because they reduce regulatory risk, ensure safer operation in challenging environments, and extend service life in areas with high dust, moisture, or potential physical contact.
The CGLine+ monitoring capability, remote switch compatibility, and plug-in battery design enable predictive maintenance and faster fault detection, reducing downtime. The LED source and high efficiency class lower energy costs, while the durable IP66/IP68 housing minimizes replacement cycles in demanding spaces, delivering a favorable total cost of ownership over the system’s life cycle.
