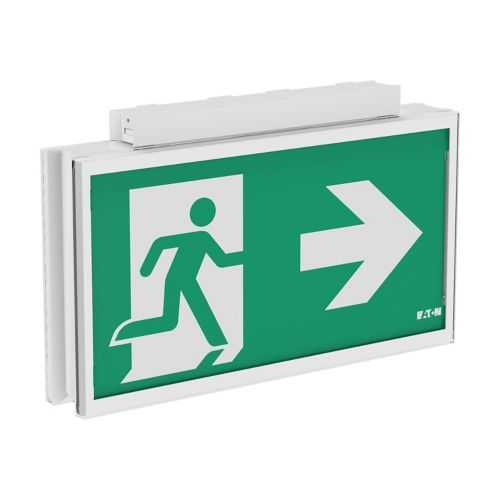

Eaton FT3EC4IATL18IP Exit Sign - IP65
Part Number: FT3EC4IATL18IP
Quick Summary
FT3EC4IATL18IP is an Eaton exit sign delivering reliable ceiling-mounted emergency illumination for commercial buildings. Facilities teams often struggle with maintenance-heavy indicators, especially where uptime and regulatory compliance matter. CE certification and IP65 enclosure provide regulatory confidence, while EN 1838-compliant signage ensures correct escape-route illumination. Beyond compliance, this LED exit sign reduces running costs and simplifies retrofits in existing ceilings. Designed for easy installation and fast commissioning, it supports a lower total cost of ownership while meeting modern safety expectations.
Product Information
Extended Description
FT3EC4IATL18IP Eaton Crouse-Hinds: EATON FlexiTech, Exit Ceiling, 30m, 4 picto. (DRLU), AT L', 1 to 8H, IP65
Product Name
Eaton FlexiTech EC SC exit sign
Catalog Number
FT3EC4IATL18IP
Product Length/Depth
325 mm
Product Height
50 mm
Product Width
200 mm
Product Weight
1.255 kg
Certifications
CE
EAN
3660191813635
Application
Acc. EN 1838
Mounting Method
Ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Single/double-sided
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route signage
Kind of luminaire
Exit sign luminaire
Labelling type
Insert sheet/plate
Light distributor
Diffuser lens/optic/panel
Pictogram included
True
With remote switch connection
False
Color housing
White
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A++, A+, A (LED)
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Automatic self test
Testing system
Auto-Test
Feature: Ceiling surface mounting with a rectangular white plastic housing. Impact: Seamless integration into existing ceilings without invasive work, while IP65 protection guards against dust and water ingress in protected indoor areas. Application: Ideal for corridor and stairwell signage in commercial facilities. Feature: Lithium-ion battery, plug-in connection, peripheral battery architecture. Impact: Reliable standby power with long battery life, reducing maintenance visits and enabling independent emergency circuits. Application: Indoor emergency lighting in offices, malls, and hospitals. Feature: Automatic self-test monitoring and Auto-Test program. Impact: Continuous assurance of operation with minimal manual checks, lowering downtime risk. Application: Facility management ecosystems seeking predictable safety performance. Feature: Pictogram included, single/double-sided options. Impact: Enhanced visibility from multiple angles, improving egress clarity. Application: EN 1838-compliant escape-route signage. Feature: LED light source with high CRI and strong energy class. Impact: Lower energy use and reduced operating cost over the product life. Application: Long-term efficiency in high-traffic environments. Feature: Durable construction with IK07 impact rating and CE certification. Impact: Rugged reliability for everyday commercial use, with certified safety compliance. Application: Indoor installations across retail, office, and healthcare settings.
Get a Quick Quote for a Eaton Crouse-Hinds FT3EC4IATL18IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT3EC4IATL18IP?
Enquire Now
FAQs
FT3EC4IATL18IP supports ceiling surface mounting with a rectangular white plastic housing, designed for straightforward retrofits into existing ceilings. It uses a plug-in connection and does not require remote switching. Ensure access to a suitable AC supply for reliable emergency operation and confirm compatibility with EN 1838 escape-route signage requirements for your corridor or stairwell installations.
Key specs include length 325 mm, width 200 mm, height 50 mm, weight 1.255 kg, IP65 enclosure, lithium-ion battery, plug-in connection, AC voltage operation, CE certification, and LED light source with CRI 80. It supports single or double-sided pictograms and is designed for reliable indoor emergency lighting in commercial spaces.
Yes, this unit is intended for indoor ceiling installations. It carries an IP65 rating for protection against dust and water ingress, but Outdoor use compliance is false, meaning it should not be deployed in exterior environments or exposed to weather without appropriate enclosure and additional protection.
The product is CE certified and EN 1838 compliant for escape-route signage. It features an IK07 impact rating, IP65 enclosure, and a CE marking that supports conformity with European safety and performance requirements for indoor emergency lighting.
Automatic self-test monitoring reduces routine manual checks and potential outages, while LED efficacy and a long-life lithium-ion battery lower energy and replacement costs. The plug-in battery configuration simplifies replacements, supporting faster commissioning and a lower total cost of ownership, especially in high-traffic or multi-site healthcare, retail, and office environments.
