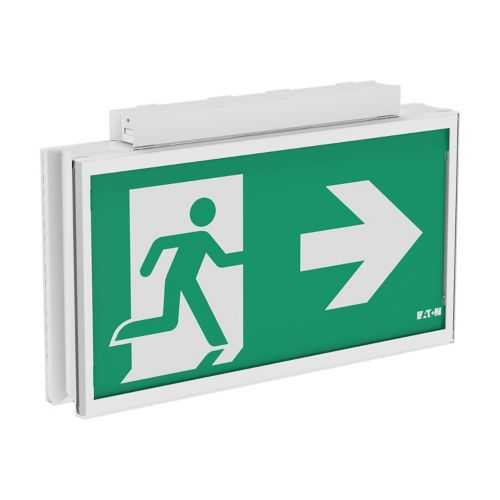

Eaton FT3EC4ICGL18IP Exit Sign - CGLine+ IP65
Part Number: FT3EC4ICGL18IP
Quick Summary
Eaton FT3EC4ICGL18IP exit sign provides reliable escape route signage for commercial and industrial spaces, optimized for ceiling surface mounting. Engineers often grapple with retrofit downtime, battery lifecycle concerns, and regulatory compliance; this self-contained unit reduces maintenance windows with a durable lithium‑ion power supply and a plug‑in connection for quick swaps. It carries CE certification, EN 1838 compliant escape lighting standards, and IP65 protection to withstand dust and moisture in demanding environments, ensuring safety compliance without sacrificing uptime. Designed for CGLine+ compatibility, four pictograms, 1 to 8-hour operation, and remote switch integration, it supports fast commissioning and lower total cost of ownership across multiple facilities.
Product Information
Extended Description
FT3EC4ICGL18IP Eaton Crouse-Hinds: Eaton FlexiTech, Exit Ceiling, 30m, 4 picto. (DRLU), CGLine+, 1 to 8H, IP65
Product Name
Eaton FlexiTech EC SC exit sign
Catalog Number
FT3EC4ICGL18IP
Product Length/Depth
325 mm
Product Height
50 mm
Product Width
200 mm
Product Weight
1.255 kg
Certifications
CE
EAN
3660191813659
Application
Acc. EN 1838
Mounting Method
Ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Single/double-sided
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route signage
Kind of luminaire
Exit sign luminaire
Labelling type
Insert sheet/plate
Light distributor
Diffuser lens/optic/panel
Luminaire With Limited Surface Temperature, Sign D
False
Pictogram included
True
With remote switch connection
True
Color housing
White
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
Self-contained power with a built‑in lithium‑ion battery ensures operation during mains loss along escape routes, delivering reliable illumination up to 30 m. The plug‑in connection simplifies installation and future maintenance, reducing wiring complexity and the likelihood of field errors during retrofits. This combination translates into shorter commissioning times and lower on-site labor costs for facilities upgrading their emergency lighting. CGLine+ monitoring compatibility enables centralized fault reporting and remote status checks, so maintenance teams can schedule interventions before a critical failure occurs. This proactive monitoring reduces unscheduled downtime and helps facilities demonstrate regulatory compliance during audits. The system integrates with existing safety networks without requiring extensive rework. Four pictograms and an insert sheet support flexible signage to meet local regulations; updates can be performed without replacing the luminaire. The result is reduced lifecycle cost and simplified regulatory alignment for facilities with changing egress requirements. IP65-rated enclosure and rugged plastic housing protect the unit from dust and moisture ingress in indoor environments subject to cleaning or humidity. The durable construction supports long service intervals and lowers maintenance costs in production lines, corridors, and warehouse applications. LED technology delivers white light with CRI around 80 and an energy efficiency class of A, providing bright, consistent visibility while minimizing electricity use and heat generation. This translates into longer service life, reduced cooling load, and predictable operating costs for facilities operating multiple exits. Ceiling surface mounting simplifies installation in new builds and retrofits, and plug‑in battery plus CGLine+ compatibility help installers reduce project risk. The compact frame measures 325 mm long, 50 mm high, and 200 mm wide, with a 1.255 kg weight, making it easy to integrate into tight ceiling spaces while maintaining clear visibility across critical egress routes.
Get a Quick Quote for a Eaton Crouse-Hinds FT3EC4ICGL18IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT3EC4ICGL18IP?
Enquire Now
FAQs
FT3EC4ICGL18IP is specifically designed for ceiling surface mounting and uses a plug-in connection for quick field replacement. This combination minimizes wiring work, accelerates initial installation, and reduces the risk of wiring errors during retrofits. It aligns with typical data cabling practices and supports rapid commissioning in commercial and industrial environments.
During mains failure, the unit relies on its built-in lithium-ion battery to sustain emergency illumination. It supports 1 to 8 hours of runtime depending on demand and configuration, ensuring escape routes remain clearly visible. The peripheral power supply design means individual battery packs can be managed independently, simplifying maintenance and ensuring predictable performance in long corridors and large rooms.
Yes. The FT3EC4ICGL18IP carries an IP65 rating, providing robust protection against dust and water jets from any direction. While it is intended for indoor use, its rugged enclosure makes it well-suited for challenging environments such as warehouses or factories where cleaning or humidity is a consideration.
The unit is CE certified and EN 1838 compliant for emergency lighting. It also features IP65 protection and quality indicators like a white housing and CE labeling, giving engineers confidence in regulatory compliance and performance across multiple sites.
Maintenance benefits come from CGLine+ centralized monitoring, remote fault reporting, and a self-contained battery system that reduces service windows. The plug-in design simplifies replacements, while the long-lasting LED source lowers energy costs and cooling loads. Across multi-site deployments, this translates to faster commissioning, lower labor costs, and a predictable total cost of ownership.
