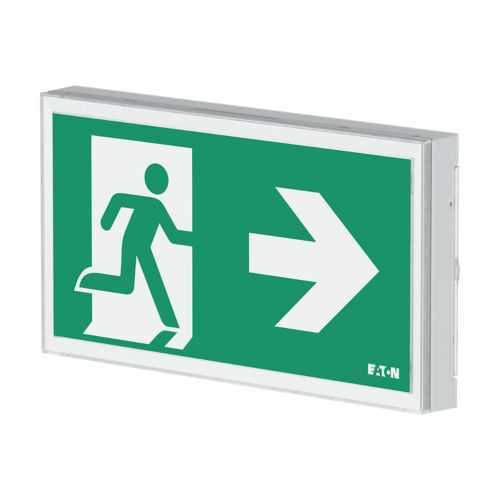

Eaton FT3EW4ICGL18IP Exit Sign Luminaire - IP66
Part Number: FT3EW4ICGL18IP
Quick Summary
The Eaton FT3EW4ICGL18IP Exit Sign Luminaire is a wall-mounted LED escape route sign designed for reliable indoor wayfinding in demanding facilities. Facility managers often struggle to balance long-term maintenance costs, strict EN 1838 compliance requirements, and uptime during power outages. With CE certification, IP66 protection, and IK07 impact resistance, this unit stands up to dusty, wet, and high-traffic environments while delivering dependable illumination. Its lithium-ion battery, plug-in connection, and CGLine+ monitoring support faster installation, predictable service cycles, and a lower total cost of ownership for safety-critical signage.
Product Information
Extended Description
FT3EW4ICGL18IP Eaton Crouse-Hinds: Eaton FlexiTech, Exit Wall, 30m, 4 picto. (DRLU), CGLine+, 1 to 8H, IP66
Product Name
Eaton FlexiTech EW SC exit sign
Catalog Number
FT3EW4ICGL18IP
Product Length/Depth
326 mm
Product Height
38 mm
Product Width
178 mm
Product Weight
0.576 kg
Certifications
CE
EAN
3660191809140
Application
Acc. EN 1838
Mounting Method
Wall surface mounted
Outdoor use compliance
False
Type of indicator
Only single-sided
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route signage
Kind of luminaire
Exit sign luminaire
Labelling type
Insert sheet/plate
Light distributor
Diffuser lens/optic/panel
Luminaire With Limited Surface Temperature, Sign D
False
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
True
With remote switch connection
True
Color housing
White
Degree of protection
IP66
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
eaton-emergency-lighting-self-contained-exit-safety-flexitech-ew-su-certificate-doc-en-fr-de
eaton-emergency-lighting-self-contained-exit-flexitech-ew-20-30-cgl-manual-all-lang
The IP66-rated enclosure protects the unit from dust and water jets, reducing field failures and downtime in harsh indoor environments, while IK07 impact resistance shields against accidental impacts common in busy facilities. The rugged housing maintains visibility with a white, durable plastic that resists discoloration over time. Lithium-ion battery technology and a simple plug-in connection enable quick installation and reliable back-up power, minimizing on-site maintenance and ensuring consistent emergency lighting for 1 to 8 hours as required by risk assessments. Maintained and Non-Maintained operation (M/NM) offers design flexibility to meet local codes, and remote switch compatibility simplifies commissioning and testing. CGLine+ monitoring enables centralized status reporting, improving compliance and reducing unexpected service visits. Four pictograms and easy integration support smooth upgrades in legacy signage systems. Lighting efficiency, CRI 80, and LED reliability deliver long-term energy savings and lower lifecycle costs. The compact, wall-mounted form factor eases retrofit projects and reduces enclosure footprint in constrained spaces.
Get a Quick Quote for a Eaton Crouse-Hinds FT3EW4ICGL18IP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT3EW4ICGL18IP?
Enquire Now
FAQs
Installation is streamlined by a wall surface mounted configuration and a plug-in connection. Use the remote switch option if required by the control system, and connect to a peripheral battery as specified. CGLine+ monitoring can be enabled for centralized fault reporting, reducing field visits and accelerating commissioning while ensuring EN 1838 compliance.
The unit operates on AC supply with a lithium-ion battery back-up. It supports Maintained and Non-Maintained (M/NM) modes, with a 1 to 8 hour emergency duration. The housing provides IP66 protection and IK07 impact resistance, while the LED light source offers high efficiency and CRI of 80 for clear pictogram visibility.
Yes. The product is designed for indoor escape signage and explicitly supports EN 1838 requirements. It includes pictograms, a wall-mounted form factor, and CE certification, making it suitable for modern safety installations in commercial and industrial facilities.
It carries CE certification, IP66 ingress protection for robust dust and water resistance, and IK07 impact resistance, ensuring resilience in busy indoor environments while meeting stringent safety standards.
The combination of LED efficiency, a long-life lithium-ion battery, and CGLine+ monitoring reduces maintenance visits and extends intervals between service actions. The flexible Maintained/NM modes support code-driven deployments, while wall-mounting and plug-in wiring simplify retrofit projects, delivering lower total cost of ownership over the product life cycle.
