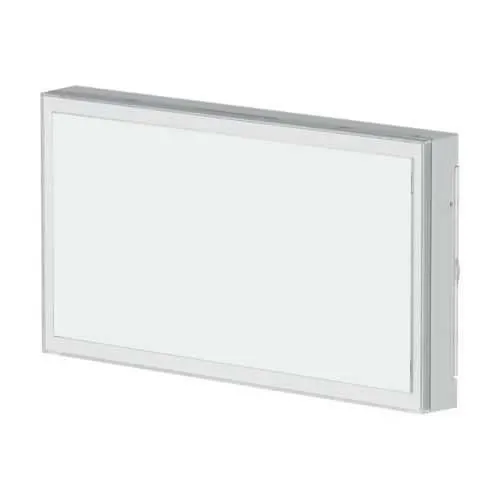

Eaton FT3SU400CGL18 Safety Luminaire - CE Certification
Part Number: FT3SU400CGL18
Quick Summary
The Eaton FT3SU400CGL18 Safety Luminaire delivers reliable escape route lighting for commercial and industrial spaces. Engineered to minimize downtime and ensure consistent illumination during power interruptions, it helps facilities meet stringent safety standards without sacrificing uptime. With CE certification, IP43 protection, and IK07 impact resistance, this unit is rugged enough for interior walls and open areas while maintaining user safety. Wall or ceiling surface mounting and a plug-in connection design streamline installation and maintenance, delivering long-term cost savings and easier compliance for MRO teams. Its uniform 400 lumen output supports uniform light distribution across escape routes, reducing glare and providing consistent guidance in critical moments.
Product Information
Extended Description
FT3SU400CGL18 Eaton Crouse-Hinds: Eaton FlexiTech large size, Safety light Uniform illum., 400lm, CGLine+, 1 to 8H
Product Name
Eaton FlexiTech SU SC safety luminaire
Catalog Number
FT3SU400CGL18
Product Length/Depth
326 mm
Product Height
38 mm
Product Width
178 mm
Product Weight
0.896 kg
Certifications
CE
EAN
3660191813017
Application
Other
Mounting Method
Wall surface mounted / ceiling surface mounting
Outdoor use compliance
False
Type of indicator
Not applicable
Battery quality
Lithium-ions
Connection type
Plug-in connection
Explosion protected
False
Power supply system
Peripheral (individual battery)
Protection class
II
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Function
Escape route lighting
Kind of luminaire
Safety luminaire for escape route and open area lighting
Labelling type
Other
Light distributor
Diffuser lens/optic/panel
Luminaire With Limited Surface Temperature, Sign D
False
Mode
Maintained / Non-Maintained (M / NM)
Pictogram included
False
With remote switch connection
True
Color housing
White
Degree of protection
IP43
Impact strength
IK07
Material cover
Plastic, transparent
Material housing
Plastic
Shape
Rectangular
Color of light
White
Color rendering index (CRI)
80
Energy efficiency class
A
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Lamp holder
None
Lamp type
LED not exchangeable
Reserve-polarity protected
True
Shape
Rectangular
With light source
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
eaton-emergency-lighting-self-contained-exit-safety-flexitech-ew-su-certificate-doc-en-fr-de
eaton-emergency-lighting-self-contained-safety-flexitech-su-large-cgl-manual-all-lang.pdf
eaton-emergency-lighting-self-contained-safety-flexitech-su-cgl-18-datasheet-en.pdf
eaton-emergency-lighting-self-contained-safety-flexitech-su-cgl-18-datasheet-en.pdf
The 400 lumen LED output delivers uniform illumination along escape routes with a diffuser lens, supporting consistent visibility in evacuations and reducing the potential for missteps in low-light conditions, which translates to enhanced safety and regulatory compliance in busy facilities. This translates into measurable business impact: faster, safer evacuations and reduced risk of incident-related downtime during outages. Ideal applications include interior corridors and open areas in industrial and commercial settings where reliable emergency lighting is essential for safety and occupancy requirements. The peripheral battery backup and plug-in connection simplify commissioning, enable quick swaps, and minimize maintenance intervals, delivering lower total cost of ownership for facility managers. With wall or ceiling mounting, IP43 protection, IK07 impact resistance, and a white plastic housing, the unit is robust for interior environments while staying visually unobtrusive. Compatibility with CGLine+ testing and a safety monitoring module supports proactive fault detection and streamlined reporting, a keystone for modern facilities pursuing regulatory compliance and reduced risk. The lightweight form factor and non-exchangeable LED source support long service life, while the built-in energy efficiency class A rating drives operational savings and sustainability goals. Overall, the FlexiTech SU SC luminaire combines reliability, ease of installation, and scalable monitoring to address common retrofit challenges and accelerate return on investment.
Get a Quick Quote for a Eaton Crouse-Hinds FT3SU400CGL18
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds FT3SU400CGL18?
Enquire Now
FAQs
Yes. The unit supports wall surface mounted and ceiling surface mounting, simplifying retrofit projects and new installations alike. Its plug-in connection reduces field wiring time, while the remote switch option provides flexible control for maintained or non-maintained operation in busy facilities.
The FT3SU400CGL18 provides 400 lumen output from a built-in LED light source. The LED is not user-replaceable, with CRI 80 and an energy efficiency class of A, delivering reliable, long-life performance suitable for continuous or emergency run times.
Absolutely. This luminaire is designed for escape route and open area lighting in interior spaces. Its rugged IP43/IK07 construction and uniform 400 lm output ensure consistent guidance and safety in warehouses, production floors, and office environments.
It is CE certified and features IP43 ingress protection with IK07 impact resistance. The unit’s Bauteil is designed for interior use, with safe isolation (Class II) and compliance with general safety standards for emergency lighting products.
CGLine+ testing support and a safety monitoring module enable central fault detection and reporting, reducing downtime and inspection effort. Coupled with a peripheral battery and plug-in installation, maintenance is simplified, operational costs are reduced, and retrofit ROI improves through extended LED life and lower energy consumption.
