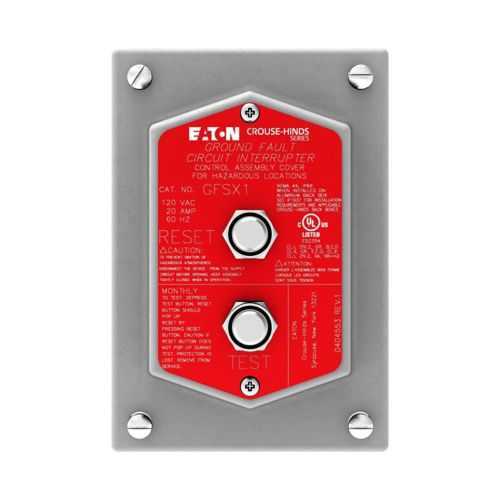

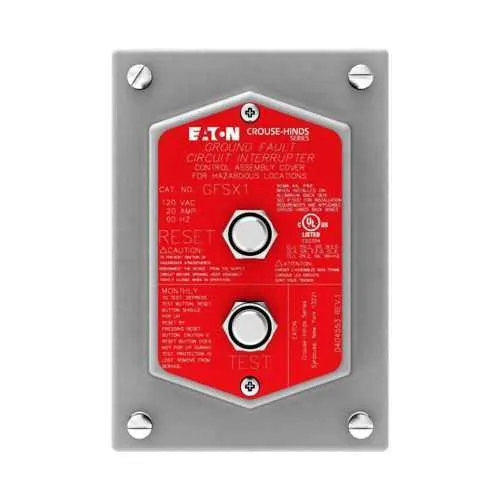

Eaton GFSX1 Ground Fault Interrupter - IP66 Hazardous
Part Number: GFSX1
Quick Summary
Ground Fault Interrupter GFSX1 protects circuits in hazardous locations by interrupting faults quickly. In harsh environments, conventional devices can corrode, trip unpredictably, or require frequent maintenance, leading to downtime and safety risks. This unit offers IP66 and NEMA 4X protection, paired with NEC/CEC hazardous location ratings such as Class I Division 2, Zone 2, to ensure compliance and reliability. Its factory-sealed copper-free aluminum housing and 125 VAC operation deliver long-term performance in rugged plants, while a precise 5 mA trip and 20 A rating support safe, uninterrupted production. For engineers and procurement teams, GFSX1 combines robust protection with installation simplicity, enabling safer upgrades without reworking plant infrastructure and reducing lifecycle costs.
Product Information
Extended Description
GFSX1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GFSX ground fault circuit interrupter, 20A, 5 mA, Copper-free aluminum, Factory sealed, 125 Vac
Product Name
Eaton Crouse-Hinds series GFSX ground fault circuit interrupter
Catalog Number
GFSX1
Product Length/Depth
3.5 in
Product Height
5.09 in
Product Width
5.91 in
Product Weight
2.36 lb
UPC
662283374577
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class III
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
20A
Ground trip current
5 mA
Voltage rating
125 Vac
Material
Copper-free aluminum
Special features
Factory sealed
GFSX Ground Fault Circuit Interrupter catalog page
GFS Explosionproof Ground Fault Circuit Interrupter Canadian certification
GFS Explosionproof Ground Fault Circuit Interrupter Canadian certification
IF 1937 - GFSX1 Ground Fault interrupter
Feature: IP66 enclosure and NEMA 4X rated construction. Impact: Provides rugged protection against dust, water ingress, and corrosive atmospheres, significantly reducing unscheduled downtime and maintenance costs. Application: suitable for chemical processing, mining, and offshore facilities where washdowns and harsh ambient conditions are routine. Feature: 20A amperage rating with a 5 mA ground trip. Impact: Delivers fast, reliable fault detection that minimizes exposure to dangerous ground faults and safeguards expensive motors and drives. Application: feeders and motor control circuits in heavy manufacturing environments benefit from improved safety margins. Feature: 125 VAC voltage rating. Impact: Ensures compatibility with standard control gear and easier integration into existing distribution schemes, lowering retrofit complexity. Application: retrofits and new installations in control panels and switchgear within hazardous zones. Feature: Copper-free aluminum housing. Impact: Enhances corrosion resistance while reducing weight and logistics costs during installation and maintenance. Application: outdoor substations and process plants with aggressive atmospheres. Feature: Factory-sealed design. Impact: Reduces maintenance cycles and reduces ingress-related failures, improving reliability and long-term total cost of ownership. Application: critical safety systems in Class I Division 2, Zone 2 environments along with NEC/CEC compliance. Feature: Comprehensive certifications. Impact: Supports regulatory compliance and faster inspections, enabling smoother project approvals and safer commissioning. Application: markets including oil and gas, chemical processing, and mining where stringent standards apply.
Get a Quick Quote for a Eaton Crouse-Hinds GFSX1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GFSX1?
Enquire Now
FAQs
GFSX1 is designed for rugged hazardous-area installations with a factory-sealed copper-free aluminum enclosure, supporting IP66 and NEMA 4X protection. It complies with NEC/CEC standards and supports Class I Division 2, Zone 2 environments. Typical wiring methods align with standard control panels, minimizing rework and enabling straightforward retrofits in existing switchgear.
The device provides a 20A amperage rating with a precise 5 mA ground-trip current and operates at 125 VAC. These specs deliver reliable fault detection and fast interruption, helping protect feeders and motors in demanding industrial settings while maintaining compatibility with common control circuits.
Yes. The GFSX1 is engineered for hazardous locations, featuring IP66 and NEMA 4X enclosure protection and NEC/CEC compliance. Its Class I Division 2, Zone 2 ratings, copper-free aluminum construction, and factory sealing make it well-suited for oil & gas, chemical processing, and other high-risk industries.
GFSX1 carries NEC/CEC standards alignment, IP66 ingress protection, and NEMA 4X enclosure rating. Hazardous-location ratings include Class I Division 2 and Zone 2 (with related classifications), ensuring compliance with regulatory requirements and simplifying regulatory inspections in industrial installations.
By providing factory-sealed protection, corrosion resistance, and robust performance in harsh environments, the GFSX1 reduces maintenance frequency and downtime. The reliable 5 mA trip minimizes nuisance trips, while its rugged enclosure and certifications support longer service intervals and improved uptime, delivering a favorable total cost of ownership in demanding facilities.
