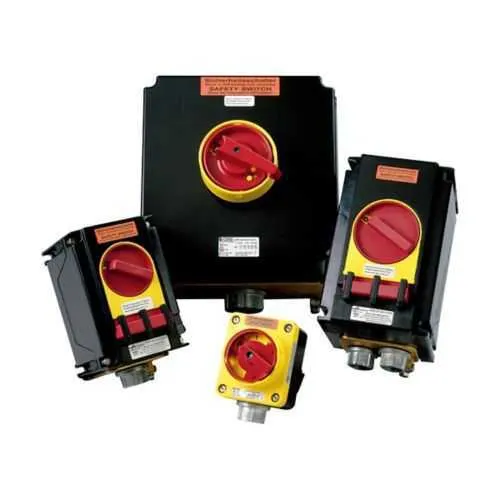

Eaton GHG2610005L0002 Disconnect Switch - IP66
Part Number: GHG2610005L0002
Manufacturer
Eaton Crouse-Hinds
Part number
GHG2610005L0002
Quick Summary
GHG2610005L0002 disconnect switch provides safe isolation for electrical circuits in hazardous locations. Engineers often struggle with equipment downtime and safety risks when selecting protective devices for explosive atmospheres. This unit meets NEC/CEC IECEx/ATEX requirements and offers IP66 and NEMA 4X protection, ensuring robust performance in dust, water, and corrosive environments. The three-pole design, 10 A rating, and 0.75 hp capacity support reliable motor control and safe line interruption. By combining a thermoplastic enclosure with convenient 1 x 3/4\" NPT entry and #14 AWG terminals, it delivers straightforward installation and long-term durability. For procurement, this translates into a compliant, maintenance-friendly solution that minimizes risk while maximizing uptime across demanding industries.
Product Information
Extended Description
GHG2610005L0002 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG26 disconnect switch, 10A, Three-pole, With switch, 1 x 3/4" NPT entry, 0.75 HP, Thermoplastic, 1 NO contact configuration, #14 AWG auxiliary, #14 AWG terminals, 500 Vac
Product Name
Eaton Crouse-Hinds series GHG26 disconnect switch
Catalog Number
GHG2610005L0002
Product Length/Depth
140 mm
Product Height
110 mm
Product Width
110 mm
Product Weight
0.81 kg
EAN
4250217420764
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
10A
Configuration
Three-pole
Voltage rating
500 Vac
Entry size
1 x 3/4" NPT
Horsepower
0.75 hp
Material
Thermoplastic
Special features
1 NO contact configuration, #14 AWG auxiliary, #14 AWG terminals
GHG26 Disconnect Switches flyer
GHG26 Series Explosion Protected Disconnect Switches catalog page
Eaton Specification Sheet - GHG2610005L0002
Feature: IP66 and NEMA 4X enclosure; Business Impact: protects internal components from dust, water, and corrosion, reducing maintenance costs; Application: ideal for washdown areas, outdoor installations, and hazardous locations. Feature: Hazardous-location ratings per NEC/CEC IECEx/ATEX; Business Impact: ensures compliance and permits safe operation in Class I and II environments; Application: chemical plants, refineries, and mining. Feature: Three-pole configuration with 10A amperage and 0.75 hp capacity; Business Impact: reliable motor control and safe isolation for motors and control circuits; Application: panel integrators and equipment rooms. Feature: 1 x 3/4\" NPT entry and #14 AWG auxiliary/terminals; Business Impact: simplifies conduit wiring and field terminations; Application: streamlined installation and serviceability. Feature: Thermoplastic enclosure and 1 NO contact configuration; Business Impact: lightweight, chemical-resistant housing with straightforward control wiring; Application: compact control stations in harsh environments.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2610005L0002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2610005L0002?
Enquire Now
FAQs
For installation, observe NEC/CEC IECEx/ATEX compliance, mount in a suitable enclosure, and connect via the 1 x 3/4\" NPT entry. Use #14 AWG terminals for field wiring and ensure the switch is within its rated 500 Vac and 10A capacity. Follow lockout/tagout procedures to maximize safety.
Its IP66 and NEMA 4X enclosure protect against dust, water, and corrosives, while the thermoplastic housing reduces weight and improves chemical resistance. The three-pole design supports reliable motor control with 0.75 hp capacity, ensuring consistent performance in manufacturing and processing facilities.
The GHG2610005L0002 carries NEC/CEC IECEx/ATEX certifications and is rated for Class I Zone 1/2 and Class II Division 1/2, enabling safe operation in hazardous areas. This ensures regulatory alignment and reduces risk during commissioning and maintenance.
With 1 NO contact configuration and dedicated auxiliary terminals, it simplifies wiring schemes in control panels. The 1 x 3/4\" NPT entry supports modular conduit coupling, and the 500 Vac rating pairs well with typical motor control circuits in industrial automation.
By combining durable IP66/NEMA 4X protection with reliable performance in hazardous locations, downtime is reduced and maintenance costs decline. The straightforward installation and standard terminals speed up maintenance, improving overall lifecycle value and compliance confidence for plant facilities.
