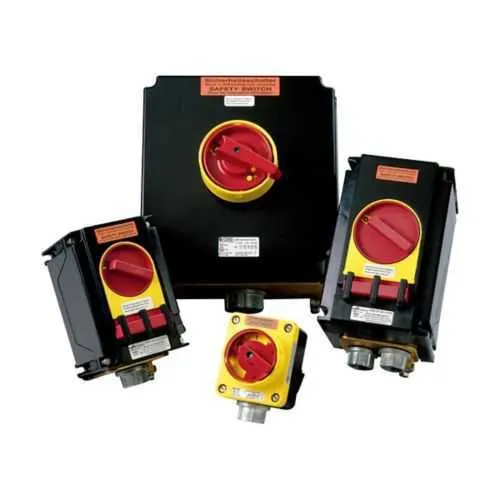

Eaton Crouse-Hinds GHG2620014L0001 disconnect switch - IP66 4X
Part Number: GHG2620014L0001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG2620014L0001
Quick Summary
GHG2620014L0001 disconnect switch by Eaton Crouse-Hinds provides safe isolation for three-phase motor circuits in hazardous locations. Operators often struggle with maintaining dependable isolation without compromising enclosure integrity in harsh industrial environments. It carries IP66 and NEMA 4X ratings along with NEC/CEC IECEx/ATEX certifications to support regulatory compliance and long-term reliability. Designed for explosion-protected installations in variable-speed drives and motor control, it delivers predictable performance, reduces maintenance, and protects personnel. This rugged disconnect switch combines robust enclosure material with straightforward wiring and clear labeling, supporting safer, compliant operations. Field installation is streamlined by 2x3/4" NPT entries and a compact 360 mm by 300 mm footprint for space-constrained panels. The fiberglass-reinforced polyester enclosure delivers durability in corrosive environments while maintaining a lightweight profile for install efficiency.
Product Information
Extended Description
GHG2620014L0001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG26 disconnect switch, 20A, Three-pole, With switch, 2 x 3/4" NPT entries, 12.2 HP/14.3 HP, Fiberglass-reinforced polyester, Three-phase, 1 NO contact configuration, #12 AWG auxiliary, #12 AWG terminals, 690 Vac
Product Name
Eaton Crouse-Hinds series GHG26 disconnect switch
Catalog Number
GHG2620014L0001
Product Length/Depth
360 mm
Product Height
280 mm
Product Width
300 mm
Product Weight
3.6 kg
EAN
4250217420658
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
20A
Configuration
Three-pole
Voltage rating
690 Vac
Entry size
2 x 3/4" NPT
Phase
Three-phase
Horsepower
12.20 hp/14.30 hp
Material
Fiberglass-reinforced polyester
Special features
1 NO contact configuration, #12 AWG auxiliary, #12 AWG terminals
GHG26 Disconnect Switches for Variable Speed flyer
GHG26 Series Explosion Protected Disconnect Switches catalog page
Eaton Specification Sheet - GHG2620014L0001
Feature: Three-pole, 20A configuration with 690 Vac rating. Business Impact: Enables reliable isolation for high-power motors while minimizing arc flash risk and downtime. Application: Ideal for three-phase motor control in hazardous locations. Feature: IP66 and NEMA 4X enclosure with explosion-protected design. Business Impact: Improves enclosure integrity in harsh environments, ensuring compliance and longevity. Application: Suitable for chemical processing, oil and gas, and mining facilities needing rugged protection. Feature: 2 x 3/4" NPT entry ports and #12 AWG auxiliary/terminals. Business Impact: Simplifies field wiring and wiring harness integration, reducing install time and error. Application: Streamlines panel design in updated automation systems. Feature: 1 NO contact configuration with fiberglass-reinforced polyester enclosure. Business Impact: Delivers durable performance with predictable switching, lowering maintenance costs. Application: Safe isolation for variable-speed drives and motor starters in hazardous locations. Feature: 690 Vac, 12.2 hp / 14.3 hp rating and three-phase operation. Business Impact: Supports high-efficiency motor control while meeting industrial standards. Application: Large-capacity motor protection in demanding plants. Feature: NEC/CEC IECEx/ATEX certification suite. Business Impact: Facilitates regulatory compliance and project acceptance across global sites. Application: Global deployments requiring hazardous-location certification.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2620014L0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2620014L0001?
Enquire Now
FAQs
GHG2620014L0001 is designed for three-phase motor control in hazardous locations with a fiberglass-reinforced polyester enclosure. It supports 2x3/4 in NPT entries and accommodates #12 AWG auxiliary wiring. It fits standard panel layouts and can be wired for a single normally open contact configuration. For best results, confirm enclosure dimensions and ensure panel cutouts align with the 360 mm by 300 mm footprint.
This switch is rated for 20A and 690 Vac, with three-phase operation. It provides a horsepower range of 12.2 hp at 12.0 and 14.3 hp in different voltage/application conditions. These ratings support reliable motor isolation for moderate to high-power equipment, while maintaining safe operation in rugged environments.
Yes. The unit is certified for Hazardous/Classified Locations and carries NEC/CEC IECEx/ATEX certifications. IP66 ingress protection and NEMA 4X enclosure rating further ensure enclosure integrity against dust, water, and corrosive environments, making it appropriate for oil & gas, chemical processing, and other demanding industries.
Consider NEC hazardous ratings (Class I, Zone 1; Class I, Division 2; Zone 2; Class II divisions), IP66 and NEMA 4X enclosure standards, and IECEx/ATEX conformity. These certifications support regulatory compliance, safer installations, and easier cross-border project deployments across industrial facilities.
The rugged fiberglass-reinforced polyester construction reduces corrosion-related maintenance, while the compact wiring footprint shortens installation time. Its reliable isolation minimizes unexpected motor downtime, improving uptime and productivity. Over the life of the equipment, fewer maintenance interventions translate into lower labor costs and a faster return on investment.
