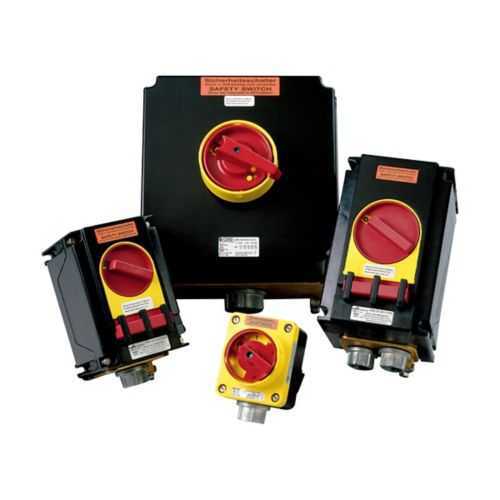

Eaton GHG2622301L0003 GHG26 Disconnect Switch - IP66
Part Number: GHG2622301L0003
Manufacturer
Eaton Crouse-Hinds
Part number
GHG2622301L0003
Quick Summary
GHG26 disconnect switch provides rugged electrical isolation for hazardous-location protection in industrial equipment. Maintenance cycles, ingress protection, and regulatory compliance are frequent pain points that hamper uptime. This model meets NEC/CEC standards, IP66 ingress protection, and a NEMA 4X enclosure, delivering safety and durability in harsh environments. In practice, users reduce unplanned downtime and maintenance costs while ensuring compliant lockout/tagout procedures. With a three-pole configuration, 20A rating, and 690 Vac/120 Vdc capability, it supports diverse motor controls and control circuits. Naturally, it also integrates easily with 2 x 3/4" NPT entries and a fiberglass-reinforced polyester enclosure for long service life in demanding locations.
Product Information
Extended Description
GHG2622301L0003 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG26 disconnect switch, 20A, Three-pole, With switch, 2 x 3/4" NPT entries, 12.2 HP/14.3 HP, Fiberglass-reinforced polyester, 1 NO contact configuration, #12 AWG auxiliary, #12 AWG terminals, 690 Vac/120 Vdc
Product Name
Eaton Crouse-Hinds series GHG26 disconnect switch
Catalog Number
GHG2622301L0003
Product Length/Depth
4.33 in
Product Height
6.69 in
Product Width
5.08 in
Product Weight
3.3 lb
EAN
4250959972712
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 1 Class I, Zone 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
20A
Configuration
Three-pole
Voltage rating
690 Vac/120 Vdc
Entry size
2 x 3/4" NPT
Horsepower
12.20 hp/14.30 hp
Material
Fiberglass-reinforced polyester
Special features
1 NO contact configuration, #12 AWG auxiliary, #12 AWG terminals
GHG26 Disconnect Switches flyer
GHG26 Series Explosion Protected Disconnect Switches catalog page
Eaton Specification Sheet - GHG2622301L0003
Feature: 690 Vac/120 Vdc and 20A rating → Business Impact → application: Supports broad motor loads and control circuits across international voltages, reducing the need for multiple part numbers and simplifying procurement. This enables panel builders and OEMs to design single solutions for global installs. Application: medium and large industrial drives, conveyors, and pump systems in hazardous locations. Feature: Three-pole configuration → Business Impact → application: Ensures true disconnect across all phases, improving isolation reliability and safety. Application: emergency shutdowns in packaging lines and chemical processing plants. Feature: IP66 and NEMA 4X enclosure → Business Impact → application: Superior ingress protection against dust, water, and washdown environments, lowering field failures and maintenance costs. Application: outdoor skid-mounted systems, offshore platforms, and mining plants. Feature: Entry size 2 x 3/4" NPT → Business Impact → application: Flexible conduit routing for easy installation and future expansion. Application: retrofits and new builds with space-constrained control panels. Feature: 1 NO contact configuration with #12 AWG terminals → Business Impact → application: Simplified wiring and reliable signaling for status and interlock circuits. Application: pilot runs, interlocks, and control panel wiring in hazardous zones.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2622301L0003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2622301L0003?
Enquire Now
FAQs
The GHG2622301L0003 provides 2 x 3/4" NPT entries and a 'With switch' enclosure, enabling straightforward field wiring and secure mounting in hazardous locations. Its three-pole design supports reliable phase isolation, making it suitable for compact control panels and retrofit projects where space and safety are priorities.
This model is rated for Hazardous/Classified Locations with NEC/CEC standards, NEC hazardous ratings across Class I, Division 2 and Zone 1/2, Class II Divisions 1/2, IP66 ingress protection, and a NEMA 4X enclosure. These certifications ensure compliance and safe operation in demanding industrial environments.
The GHG2622301L0003 is a 20A, three-pole disconnect with a voltage rating of 690 Vac / 120 Vdc and a 1 NO contact configuration. It supports #12 AWG auxiliary and terminals, and handles up to 12.20 hp / 14.30 hp, making it suitable for controlling medium to high-power loads.
With IP66 and NEMA 4X enclosure protection, the switch resists dust ingress and washdown exposure, reducing field failures. The rugged fiberglass-reinforced polyester body withstands harsh environments, while the reliable isolation supports proper lockout/tagout practices, translating to safer maintenance and improved equipment uptime in hazardous-location facilities.
Technical information is available via Eaton’s resources: the GHG26 Disconnect Switches flyer, the GHG26 Series Explosion Protected Disconnect Switches catalog page, and the Eaton specification sheet for GHG2622301L0003. These assets provide installation guidance, electrical ratings, and compliance details to support procurement and engineering validation.
