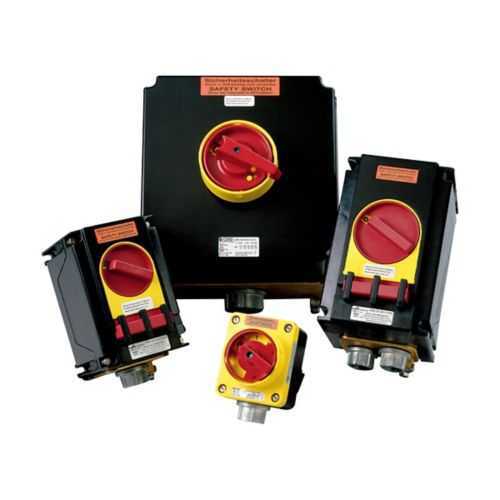

Eaton Crouse-Hinds GHG2622301R0001 Disconnect Switch - IP66
Part Number: GHG2622301R0001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG2622301R0001
Quick Summary
GHG26 disconnect switch from Eaton Crouse-Hinds provides reliable isolation for hazardous-location motor circuits in demanding industrial environments. Users often grapple with downtime and safety risks when switching motors in hazardous areas. This device delivers NEC/CEC IECEx/ATEX compliance, IP66 protection, and a NEMA 4X enclosure, supporting reliable operation in tough environments. The combination of rugged construction, international certifications, and flexible installation translates into lower maintenance costs, safer shutdowns, and quicker turnaround for motor control tasks. In addition to primary protection, the unit's compatibility with standard enclosure systems and 690 Vac circuits makes it a versatile choice for industrial automation and process control applications.
Product Information
Extended Description
GHG2622301R0001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG26 disconnect switch, 20A, Three-pole, With switch, 2 x M32/1 x M25 entries, 12.2 HP/14.3 HP, Fiberglass-reinforced polyester, 690 Vac
Product Name
Eaton Crouse-Hinds series GHG26 disconnect switch
Catalog Number
GHG2622301R0001
Product Length/Depth
4.33 in
Product Height
6.69 in
Product Width
5.08 in
Product Weight
3.26 lb
EAN
4250217425776
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
20A
Configuration
Three-pole
Voltage rating
690 Vac
Entry size
2 x M32/1 x M25
Horsepower
12.20 hp/14.30 hp
Material
Fiberglass-reinforced polyester
GHG26 Series Explosion Protected Disconnect Switches catalog page
Eaton Specification Sheet - GHG2622301R0001
Feature is rugged IP66 and NEMA 4X enclosure protection, delivering dependable ingress protection for dust, water, and corrosive environments. Business impact is reduced maintenance cycles and safer operation, especially in washdown and outdoor installations; applications include chemical plants, mining sites, and offshore facilities where reliable motor isolation is required. Feature three-pole, 20A at 690 Vac for safe, code-compliant isolation of three-phase motors; business impact includes improved safety during shutdowns and easier compliance with NEC/CEC requirements; applications cover heavy-duty conveyors, pumps, and HVAC drives. Feature fiberglass-reinforced polyester enclosure provides chemical resistance and structural integrity in harsh environments; impact is longer service life and reduced corrosion-related downtime; applications span corrosive atmospheres and rugged outdoor locations. Feature entry sizes 2 x M32 and 1 x M25 offer installation flexibility and gland compatibility, enabling straightforward retrofits and panel integration; impact includes faster installation, reduced downtime, and compatibility with common conduit fittings. Feature with switch enclosure simplifies wiring by integrating the switch, reducing component count and potential fault points; impact is shorter commissioning time and easier maintenance in field service. Certification coverage with NEC/CEC IECEx/ATEX, IP66, and NEMA 4X ensures compliance and broad applicability across industries, lowering procurement risk and enabling global deployment in hazardous locations.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2622301R0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2622301R0001?
Enquire Now
FAQs
The GHG2622301R0001 provides flexible installation with 2 x M32 and 1 x M25 entry sizes, allowing seamless gland and conduit connections. Its fiberglass-reinforced polyester enclosure withstands harsh environments, while the three-pole design supports standard motor control panels. This combination enables straightforward retrofits and quick field wiring without sacrificing protection or compliance.
Key specs include a 20A amperage rating, 690 Vac voltage rating, and a three-pole configuration with an integrated switch. The device is designed for reliable isolation of fractionally to fully loaded three-phase motors, delivering consistent performance in demanding environments while meeting relevant NEC/CEC and IECEx/ATEX standards.
Yes. The unit carries IECEx/ATEX certification in addition to NEC/CEC compliance, making it appropriate for hazardous locations across global markets. The IP66 enclosure further ensures protection against dust and water ingress, supporting safe operation in Zone 1/2 and Divisions 1/2 configurations as applicable.
With a rugged IP66/NEMA 4X enclosure and durable fiberglass-reinforced polyester body, the switch resists dust, water, and corrosion. Its integrated switch reduces component count, simplifying wiring and service tasks. The result is longer mean time between failures (MTBF), quicker maintenance, and reduced downtime during motor isolation and startup sequences.
Confirm that the application falls within hazardous/classified locations and verify NEC/CEC and IECEx/ATEX compatibility. Check the enclosure rating (IP66, NEMA 4X) and confirm entry sizes (2 x M32, 1 x M25) suit gland hardware. Finally, ensure the device voltage and horsepower ratings align with the motor load and control circuitry for a compliant, safe retrofit.
