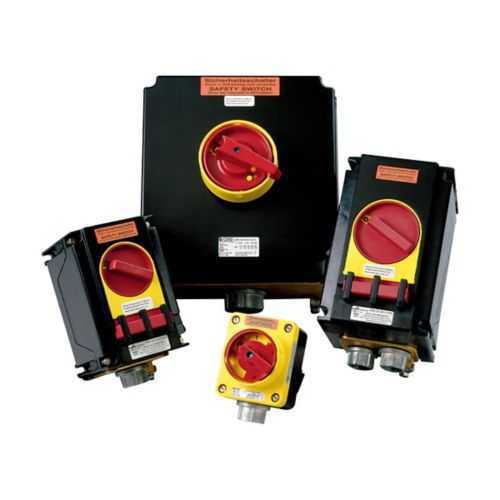

Eaton GHG2630053L0001 Disconnect Switch - IP66
Part Number: GHG2630053L0001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG2630053L0001
Quick Summary
GHG2630053L0001 is a high‑reliability disconnect switch designed for hazardous locations in industrial motor control. Engineers often struggle to balance safety, uptime, and regulatory compliance during routine maintenance and lockout procedures. With NEC/CEC IECEx/ATEX certifications, a NEMA 4X enclosure, and IP66 ingress protection, this unit meets stringent global standards. Designed for rugged environments, it delivers robust motor control protection while enabling easy installation and cross‑site compliance across facilities.
Product Information
Extended Description
GHG2630053L0001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG26 disconnect switch, 40A, Three-pole, With switch, 1 x 1" NPT + 1 x 1/2" NPT entries, 15 HP/20 HP, Fiberglass-reinforced polyester, Three-phase, 1 NO contact configuration, #6 AWG aux, #6 AWG terminals, 690 Vac
Product Name
Eaton Crouse-Hinds series GHG26 disconnect switch
Catalog Number
GHG2630053L0001
Product Length/Depth
360 mm
Product Height
280 mm
Product Width
300 mm
Product Weight
4.7 kg
EAN
4250217420221
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
40A
Configuration
Three-pole
Voltage rating
690 Vac
Entry size
1 x 1" NPT + 1 x 1/2" NPT
Phase
Three-phase
Horsepower
15 hp/20 hp
Material
Fiberglass-reinforced polyester
Special features
1 NO contact configuration, #6 AWG auxiliary, #6 AWG terminals
GHG26 Disconnect Switches for Variable Speed flyer
GHG26 Series Explosion Protected Disconnect Switches catalog page
Eaton Specification Sheet - GHG2630053L0001
Fiberglass‑reinforced polyester construction provides durable protection for washdown and chemical environments, delivering IP66 and NEMA 4X ratings to minimize corrosion and ingress risk. This reduces maintenance cycles and extends service life in offshore, chemical, and heavy manufacturing facilities. The 40A, 3‑pole design for 690 Vac with 15 hp/20 hp capabilities enables reliable motor control, reducing electrical disturbances and improving overall equipment uptime in demanding plants. Flexible entry sizing of 1 x 1" NPT plus 1 x 1/2" NPT simplifies field installation around existing conduit routes, saving time and reducing installation costs. With NEC/CEC IECEx/ATEX certification and hazardous location designation, it supports regulatory compliance while enabling safer maintenance and servicing. Its compact footprint and 4X/NEMA IP protection enable installation in tight spaces without compromising switch capability, making it suitable for retrofits and new builds alike.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2630053L0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2630053L0001?
Enquire Now
FAQs
Plan for a secure, accessible mounting surface that accommodates the 360 mm length and 300 mm width. Use the supplied 1 x 1" NPT and 1 x 1/2" NPT entries to route conduits, ensuring proper sealing to maintain IP66 protection. Verify site classification against NEC/CEC IECEx/ATEX approvals and follow lockout‑tagout procedures during maintenance.
The unit is a 40A, three‑pole disconnect rated for 690 Vac and three‑phase operation, with a 15 hp/20 hp motor capability. It features one normally open contact (1 NO) and terminals sized for #6 AWG conductors, suitable for reliable motor control and safe disconnection during service.
Yes. With a 690 Vac rating and three‑pole configuration, it handles motor control duties in variable speed drive environments. The device’s rugged enclosure and compliant ratings minimize arc‑flash risk and protect control circuits, making it a dependable disconnect option for VFD‑driven equipment.
It carries NEC/CEC IECEx/ATEX certifications, a NEMA 4X enclosure rating, and IP66 ingress protection. These approvals verify safe operation in hazardous and classified locations, enable cross‑border installation, and ensure compliance with critical safety and environmental standards in industrial plants.
The fiberglass‑reinforced polyester enclosure resists corrosion and washdown exposure, reducing maintenance frequency. The robust design and certified protection lower downtime and service costs, while the compact footprint eases retrofit projects. Overall, this translates to lower total cost of ownership and more consistent equipment uptime.
