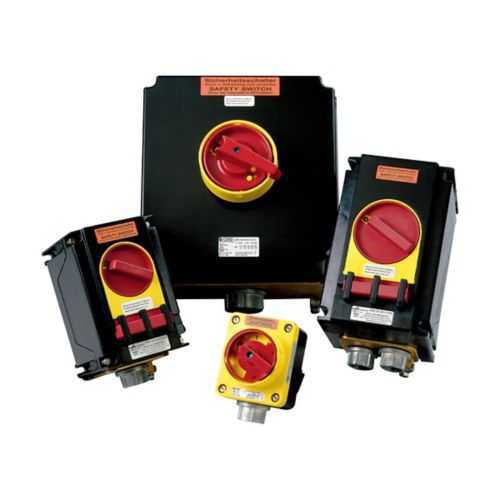

Eaton Crouse-Hinds GHG2632301L0002 Disconnect Switch - IP66
Part Number: GHG2632301L0002
Manufacturer
Eaton Crouse-Hinds
Part number
GHG2632301L0002
Quick Summary
GHG2632301L0002 disconnect switch provides rugged isolation for hazardous-location control panels. Engineers often struggle with safe power disconnections in Class I/II, Zone 1/2 environments. This unit meets NEC/CEC compliance, delivers IP66 protection, and carries a NEMA 4X enclosure for tough outdoor and washdown conditions. With 40A rating and dual voltages—690 VAC / 120 VDC—installation is streamlined, reducing wiring errors and downtime. This combination supports reliable isolation in hazardous environments while aligning with cost-effective motor control and preventive-maintenance goals. The compact dimensions and 2 x 3/4 inch NPT entries simplify panel layouts and conduit routing, saving time in retrofit projects. In practice, the GHG26 family is known for durable fiberglass-reinforced polyester enclosures that withstand exposure, chemicals, and impact.
Product Information
Extended Description
GHG2632301L0002 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG26 disconnect switch, 40A, Three-pole, With switch, 2 x 3/4" NPT entries, 15 HP/20 HP, Fiberglass-reinforced polyester, 1 NO contact configuration, #12 AWG auxiliary, #6 AWG terminals, 690 Vac/120 Vdc
Product Name
Eaton Crouse-Hinds series GHG26 disconnect switch
Catalog Number
GHG2632301L0002
Product Length/Depth
5.51 in
Product Height
8.86 in
Product Width
6.14 in
Product Weight
5.1 lb
EAN
4250217420191
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class I, Zone 1 Class I, Zone 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
40A
Configuration
Three-pole
Voltage rating
690 Vac/120 Vdc
Entry size
2 x 3/4" NPT
Horsepower
15 hp/20 hp
Material
Fiberglass-reinforced polyester
Special features
1 NO contact configuration, #12 AWG auxiliary, #6 AWG terminals
GHG26 Disconnect Switches flyer
GHG26 Series Explosion Protected Disconnect Switches catalog page
Eaton Specification Sheet - GHG2632301L0002
Feature: 40A three-pole design with 690 VAC/120 VDC capability enables precise motor isolation for equipment up to 15 hp at AC and 20 hp at DC, reducing risk and downtime. Application: Ideal for demanding industrial controls in hazardous locations, enabling compliant shutdowns during maintenance or faults. Business impact: Improves safety margins and reduces unscheduled downtime through reliable switching of critical loads. Feature: Fiberglass-reinforced polyester enclosure provides chemical resistance and impact durability. Application: Suitable for washdown areas and harsh plant environments. Business impact: Extends service life and lowers replacement costs in abrasive or corrosive environments. Feature: IP66 and NEMA 4X enclosure ratings protect against dust and water ingress. Application: Suitable for outdoor, damp, and washdown settings. Business impact: Lowers ongoing maintenance and prevents corrosion-related failures. Feature: Wiring flexibility with 2 x 3/4" NPT entries and 1 NO contact configuration; auxiliary #12 AWG and #6 AWG terminals simplifies field terminations. Application: Fast, error-free installation and easier upgrades or retrofits. Business impact: Reduces installation time by streamlining routing and wiring, boosting project productivity. Feature: NEC/CEC compliance with hazardous area ratings (Class I/Division 2, Zone 1/2) and IP66/NEMA 4X protection. Application: Meets strict regulatory requirements for hazardous-location control circuits. Business impact: Facilitates compliance audits and reduces risk of non-conformance, protecting operator safety and plant uptime.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2632301L0002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2632301L0002?
Enquire Now
FAQs
Plan for three-pole mounting with 2 x 3/4" NPT conduit entries to simplify wiring and enclosure routing. Use auxiliary #12 AWG conductors and #6 AWG terminals for reliable terminations. Ensure compliance with NEC/CEC Class I Division 2 or Zone 1/2 requirements and follow local safety practices for hazardous-area installations.
Yes. The unit carries NEC/CEC standards with hazardous-location ratings including Class I Division 2 and Zone 1/2, making it suitable for regulated environments. Its IP66/NEMA 4X enclosure further protects against dust and water ingress, supporting compliant operation in harsh sites.
Ideal for control panels and motor circuits in hazardous locations, especially where robust isolation is needed. The 40A rating with 690 VAC/120 VDC capability supports medium-duty motor loads up to 15 hp at high voltage and 20 hp at DC, enabling reliable shutdowns in demanding environments.
It features NEC/CEC compliance, hazardous-location ratings (Class I/Division 2, Zone 1/2), IP66 ingress protection, and a NEMA 4X enclosure. These certifications ensure regulatory alignment, improved operator safety, and reduced risk of environmental damage to the switch and connected equipment.
The fiberglass-reinforced polyester enclosure and sealed design reduce corrosion and washdown-related wear, lowering maintenance costs. The durable construction and reliable IP66/NEMA 4X protection translate to longer service life, fewer replacements, and minimized downtime, delivering a favorable total cost of ownership in hazardous-location applications.
