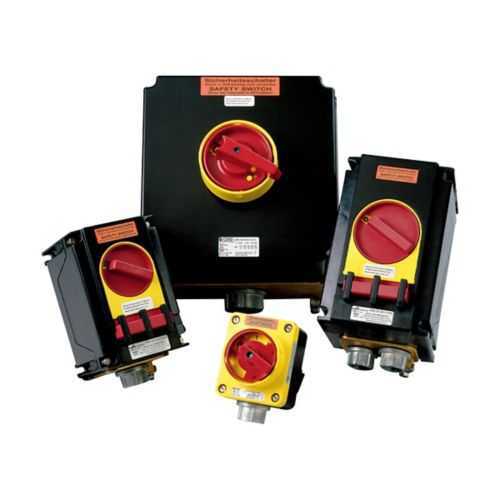

Eaton Crouse-Hinds GHG2640024L0001 disconnect switch - IP66
Part Number: GHG2640024L0001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG2640024L0001
Quick Summary
GHG2640024L0001 disconnect switch by Eaton Crouse-Hinds provides reliable isolation for three-phase motor circuits in hazardous locations. Maintenance teams struggle with equipment downtime and compliance in hazardous locations; this switch delivers safe, code-compliant disconnection. It meets NEC/CEC and IECEx/ATEX certifications, provides IP66 ingress protection, and a NEMA 4X enclosure for demanding environments. Designed for explosion-protected disconnection in hazardous locations, it supports reliable control of variable speed drives while simplifying installation and maintenance.
Product Information
Extended Description
GHG2640024L0001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG26 disconnect switch, 80A, Three-pole, With switch, 1 x 1-1/2" NPT + 1 x 1/2" NPT entries, 30 HP/50 HP, Fiberglass-reinforced polyester, Three-phase, 1 NO contact config, #2 AWG aux, #2 AWG terminals, 690 Vac
Product Name
Eaton Crouse-Hinds series GHG26 disconnect switch
Catalog Number
GHG2640024L0001
Product Length/Depth
10.67 in
Product Height
10.67 in
Product Width
7.87 in
Product Weight
7.7 lb
EAN
4251510767969
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Zone 2 Class II, Division 1 Class I, Zone 1 Class II, Division 2 Class I, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
80A
Configuration
Three-pole
Voltage rating
690 Vac
Entry size
1 x 1-1/2" NPT + 1 x 1/2" NPT
Phase
Three-phase
Horsepower
30 hp/50 hp
Material
Fiberglass-reinforced polyester
Special features
1 NO contact configuration, #2 AWG auxiliary, #2 AWG terminals
GHG26 Disconnect Switches for Variable Speed flyer
GHG26 Series Explosion Protected Disconnect Switches catalog page
Feature: 80A amperage rating and three-pole configuration with a switch. Business Impact: Enables robust, direct-motor isolation for mid-power drives while reducing arc flash risk and improving panel reliability. Application: Suitable for medium-duty motor control in harsh environments where safe disconnection is required. Feature: Entry sizes 1 x 1-1/2" NPT + 1 x 1/2" NPT. Business Impact: Flexible wiring routes and easier field installation, reducing cabinet crowding and installation time. Application: Ideal for compact switchgear and control panels in industrial facilities. Feature: Fiberglass-reinforced polyester enclosure. Business Impact: Offers chemical resistance and temperature stability, extending service life in challenging sites. Application: Offshore platforms, chemical plants, and other hazardous locations. Feature: IP66 and NEMA 4X ratings with hazardous/classified location certifications. Business Impact: Ensures regulatory compliance, water and dust ingress protection, and rugged durability. Application: New builds or upgrades in zones 1/2 and other classified areas. Feature: 30 hp/50 hp capacity at 690 Vac. Business Impact: Supports direct-drive motors and variable speed drives without extra gear or starters. Application: Powering large fans, pumps, or conveyors in demanding environments. Feature: 1 NO contact configuration with #2 AWG auxiliary and terminals. Business Impact: Facilitates control interlocks and auxiliary signaling with minimal wiring changes. Application: Integrated control circuits and safety interlocks in control panels.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2640024L0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2640024L0001?
Enquire Now
FAQs
For safe installation in hazardous areas, mount the GHG2640024L0001 in a compliant enclosure, connect conductors using the listed NPT entries (1 x 1-1/2" and 1 x 1/2"), and adhere to NEC/CEC and IECEx/ATEX guidelines. Ensure proper grounding and verify IP66/NEMA 4X enclosure integrity during commissioning.
This switch is rated for 80A, 690 Vac, and supports three-phase applications with a 30 hp/50 hp rating. It uses 1 NO contact configuration and accepts #2 AWG terminals, offering reliable isolation for medium-sized motors and drives within hazardous locations.
Yes. The GHG2640024L0001 is designed for three-phase motor control in hazardous environments and supports variable speed drive setups by providing robust isolation, arc suppression potential, and compliant enclosure protection (IP66, 4X).
It carries NEC/CEC and IECEx/ATEX standards, is suitable for Hazardous/Classified Locations, and features IP66 and NEMA 4X enclosure ratings, ensuring safe operation and regulatory compliance in high-risk industrial environments.
The rigid fiberglass-reinforced polyester construction and rugged enclosure reduce exposure to dust, moisture, and chemicals, lowering maintenance cycles and downtime. Its reliable disconnection capability improves safety and uptime, delivering a favorable return on investment in facilities with frequent motor shutdowns or regulatory audits.
