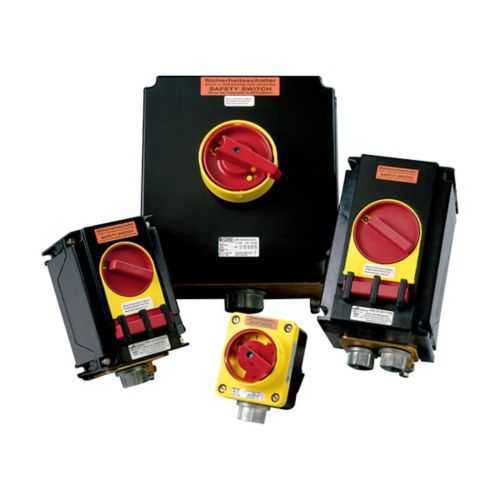

Eaton Crouse-Hinds GHG2650010L0003 Disconnect Switch - IP66

Part Number: GHG2650010L0003
GHG2650010L0003
Manufacturer
Eaton Crouse-Hinds
Part number
GHG2650010L0003
Category

Quick Summary

GHG2650010L0003 disconnect switch provides safe isolation for 3-pole, 690 V motor circuits in hazardous locations. Facilities often face downtime from improper protection and complex wiring, making installation slower and riskier. It carries IECEx/ATEX and NEC/CEC certifications and features a rugged IP66/NEMA 4X enclosure, ensuring reliable operation in demanding environments. Designed for OEMs and maintenance teams, it offers straightforward mounting and entry design with 2 x 1-1/2 in NPT ports, plus a 125 A rating for quick deployment. The fiberglass-reinforced polyester body resists corrosion, extending service life in harsh facilities.

Product Information

Extended Description

GHG2650010L0003 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG26 disconnect switch, 125A, Three-pole, With switch, 2 x 1-1/2" NPT entries, 40 HP/75 HP, Fiberglass-reinforced polyester, 1 NO contact configuration, #12 AWG auxiliary, 2/0 AWG terminals, 690 Vac
Product Name
Eaton Crouse-Hinds series GHG26 disconnect switch
Catalog Number
GHG2650010L0003
Product Length/Depth
10.67 in
Product Height
21.8 in
Product Width
10.83 in
Product Weight
35.2 lb
EAN
4251510767952
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Zone 2 Class I, Division 2 Class II, Division 2 Class I, Zone 1
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
125A
Configuration
Three-pole
Voltage rating
690 Vac
Entry size
2 x 1-1/2" NPT
Horsepower
40 hp/75 hp
Material
Fiberglass-reinforced polyester
Special features
1 NO contact configuration, #12 AWG auxiliary, 2/0 AWG terminals
GHG26 Disconnect Switches flyer GHG26 Series Explosion Protected Disconnect Switches catalog page Eaton Specification Sheet - GHG2650010L0003
Feature: Three-pole, 125A, 690 VAC with 2 x 1-1/2" NPT entries. Benefit: Safe motor isolation for high-power equipment with flexible wiring options, reducing setup time and improving system reliability. Application: Suitable for 40 hp/75 hp drives in hazardous locations. Feature: Fiberglass-reinforced polyester enclosure. Benefit: Superior corrosion resistance and durability in chemical, oil, and mining environments, lowering maintenance costs. Application: Outdoor or harsh indoor installations where enclosure integrity matters. Feature: IP66 and NEMA 4X enclosure ratings. Benefit: Proven ingress protection against dust and water, enabling reliable operation in challenging environments. Application: Outdoor substations, wash-down areas, and chemical plants. Feature: 1 NO contact configuration with auxiliary connections (#12 AWG) and 2/0 AWG terminals. Benefit: Simplified control wiring and expanded signaling options, cutting installation time and wiring errors. Application: Control circuits and safety interlocks in automation panels. Feature: 125A, 690 VAC, Three-pole configuration with 2 x 1-1/2" NPT entries. Benefit: High-current capability with flexible mounting and plug-and-play integration into existing electrical schemes. Application: Heavy-duty motor disconnects in hazardous locations, meeting NEC/CEC and IECEx/ATEX requirements. Feature: Certifications and compliance (IECEx/ATEX, NEC/CEC, IP66, NEMA 4X, Hazardous Location approvals). Benefit: Regulatory alignment reduces risk during audits and speeds up project sign-off. Application: Industrial facilities in chemical plants, oil & gas, mining, and other hazardous environments.

Get a Quick Quote for a Eaton Crouse-Hinds GHG2650010L0003

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds GHG2650010L0003? Enquire Now

FAQs

The GHG2650010L0003 is a three-pole disconnect rated 125A at 690 VAC with 2 x 1-1/2 in NPT entries. For hazardous locations, ensure compliant sealing and enclosure integrity to meet IP66 and NEMA 4X requirements, and use the auxiliary circuits per IECEx/ATEX and NEC/CEC guidelines. Follow standard control panel practices for wiring, grounding, and lockout/tagout to maximize safety and uptime.
Key ratings include 125A amperage, 690 VAC voltage rating, and a three-pole configuration with 1 NO contact. It supports 40 hp/75 hp motor applications and provides 2 x 1-1/2" NPT entry ports for easy cable management. These specs enable reliable motor isolation in demanding industrial environments while maintaining compatibility with common control circuits.
Yes. The GHG2650010L0003 carries IECEx/ATEX and NEC/CEC standards, with hazardous location classifications (Class I/II, Division 1/2; Zone 1/2) and a protection rating of IP66/NEMA 4X. This makes it suitable for hazardous environments such as chemical processing, oil and gas, mining, and other demanding facilities requiring regulatory compliance.
Key compatibility features include 2 x 1-1/2 in NPT cable entries, auxiliary wiring provisions for #12 AWG, and 2/0 AWG terminals. These components simplify wiring, shorten panel assembly, and improve reliability by ensuring secure, vibration-resistant connections in rugged environments.
Official documentation is available via Eaton’s resources: the GHG26 Disconnect Switches flyer, the GHG26 Series catalog page, and the Eaton Specification Sheet for GHG2650010L0003. These assets provide detailed electrical, mechanical, and installation guidance to support procurement, engineering reviews, and field deployment.
