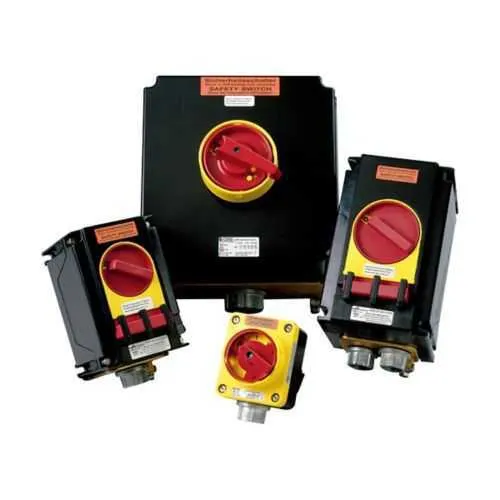

Eaton GHG2660006L0002 Disconnect Switch - IP66
Part Number: GHG2660006L0002
Manufacturer
Eaton Crouse-Hinds
Part number
GHG2660006L0002
Quick Summary
GHG26 disconnect switch is designed for safe isolation of electrical circuits in hazardous and classified locations. Engineers often struggle with downtime and compliance gaps when sourcing rugged enclosures that withstand high voltages, frequent access, and corrosive environments. This unit carries NEC/CEC IECEx/ATEX certifications and IP66/NEMA 4X ratings, ensuring reliable performance in Zone 1 and Division 2 environments. By integrating with 2 x 2 entries and a 180 A rating, it supports modern protection schemes and reduces installation time. This translates to lower lifecycle costs and easier maintenance for industrial facilities handling harsh chemicals, oil & gas, or mining operations.
Product Information
Extended Description
GHG2660006L0002 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG26 disconnect switch, 180A, Three-pole, With switch, 2 x 2" NPT entries, 40 HP/75 HP, Fiberglass-reinforced polyester, 1 NO contact configuration, #12 AWG auxiliary, 4/0 AWG terminals, 690 Vac
Product Name
Eaton Crouse-Hinds series GHG26 disconnect switch
Catalog Number
GHG2660006L0002
Product Length/Depth
10.67 in
Product Height
21.8 in
Product Width
10.83 in
Product Weight
36.3 lb
EAN
4250217400360
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Amperage Rating
180A
Configuration
Three-pole
Voltage rating
690 Vac
Entry size
2 x 2" NPT
Horsepower
40 hp/75 hp
Material
Fiberglass-reinforced polyester
Special features
1 NO contact configuration, #12 AWG auxiliary, 4/0 AWG terminals
GHG26 Disconnect Switches flyer
GHG26 Series Explosion Protected Disconnect Switches catalog page
Eaton Specification Sheet - GHG2660006L0002
Feature: 180 A amperage rating and 690 V maximum voltage with a three-pole configuration. Business Impact: Enables safe disconnection of high-current circuits, reducing arc flash risk and equipment damage during maintenance. Application: Ideal for motor control feeders and safety interlocks in hazardous locations. Feature: Fiberglass-reinforced polyester enclosure with IP66 and NEMA 4X protection. Business Impact: Delivers durable, corrosion-resistant protection in outdoor and chemically aggressive environments, reducing enclosure replacements. Application: Suitable for outdoor substations, chemical plants, and mining sites. Feature: 2 x 2 inch NPT entry ports. Business Impact: Streamlines conduit routing and gland sealing, cutting install time and minimizing fault-prone terminations. Application: Common in retrofits and new installations in compact switchgear spaces. Feature: With switch and 1 NO contact configuration plus #12 AWG auxiliary and 4/0 AWG terminals. Business Impact: Simplifies startup wiring and future expansion while supporting straightforward maintenance checks. Application: Best for controlled isolation points in motor starters and distribution panels. Feature: NEC hazardous ratings and IECEx/ATEX certifications with IP66 and 4X enclosure. Business Impact: Ensures regulatory compliance and safer operation across zones 1/2, divisions 1/2. Application: Critical for oil & gas, chemical processing, and other hazardous-location environments.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2660006L0002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2660006L0002?
Enquire Now
FAQs
Yes. This unit provides two 2x2 inch NPT entry ports designed for straightforward conduit routing and secure gland sealing. It is a three-pole, 180A, 690VAC disconnect with an IP66/NEMA 4X enclosure, making it well-suited for retrofits or new installations in harsh environments. Ensure proper gland material and conductor sizing up to 4/0 AWG for reliable terminations.
The switch is rated for 180A and 690 VAC, configured as three-pole with 1 NO contact. It features a fiberglass-reinforced polyester enclosure rated IP66 and NEMA 4X, suitable for hazardous locations. It supports 40 hp at 690 VAC and 75 hp under certain conditions, with auxiliary wiring up to #12 AWG and large-terminal capacity up to 4/0 AWG.
Ideal for oil and gas, chemical processing, mining, and other industrial facilities operating in Zone 1/ Zone 2 or Division 1/Division 2 environments. Its NEC hazardous ratings and IECEx/ATEX certifications ensure compliance while IP66/NEMA 4X enclosures provide robust protection against dust, water, and corrosive exposure common in these industries.
The GHG2660006L0002 carries NEC/CEC and IECEx/ATEX standards, confirming compliance for hazardous locations. It also has IP66 ingress protection and a NEMA 4X enclosure rating, suitable for exterior deployment. These certifications support safe installation, regulatory compliance, and reduced risk during maintenance in demanding environments.
The fiberglass-reinforced polyester enclosure plus IP66/NEMA 4X protection minimizes corrosion and enclosure failures, lowering replacement costs. A single, reliable 180A/690VAC switch reduces downtime during isolation, simplifies compliance documentation, and lowers lifecycle costs for facilities with frequent maintenance in harsh conditions.
