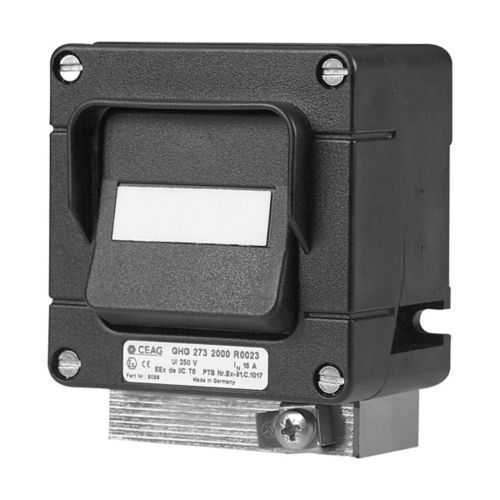

Eaton GHG2732000R0003 Light Switch - IP66 Ex-Protected
Part Number: GHG2732000R0003
Quick Summary
Eaton GHG2732000R0003 light switch provides reliable hazardous-location lighting control for industrial facilities. In harsh environments, downtime and noncompliant enclosures drive costly outages and safety risks. The device carries NEC/CEC IECEx/ATEX certifications with IP66 ingress protection, enabling safe operation in Hazardous/Classified Locations (Class I, Zone 1 & 2; Class II, Division 1 & 2). Its thermoplastic housing, two-pole configuration, and two M20 entry points simplify installation, wiring, and long-term maintenance, while preserving rugged performance. For procurement teams and engineers, this means fewer part numbers, clearer compliance documentation, and a straightforward path to reliable uptime across plants. This combination of protection, performance, and practical design helps safeguard production lines without compromising safety or regulatory alignment.
Product Information
Extended Description
GHG2732000R0003 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG273 light switch, 16A, Two-pole, With switch, 2 x M20 entries, Thermoplastic, 250 Vac
Product Name
Eaton's Crouse-Hinds series GHG273 light switch
Catalog Number
GHG2732000R0003
Product Length/Depth
3.35 in
Product Height
3.94 in
Product Width
2.52 in
Product Weight
0.71 lb
EAN
4250217425882
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Configuration
Two-pole
Entry size
2 x M20
Voltage rating
250 Vac
Amperage Rating
16A
Material
Thermoplastic
High current capability of 16A at 250 VAC directly supports demanding lighting loads, reducing the need for additional controllers and minimizing voltage drop. Business impact: lower total cost of ownership through fewer components and less downtime in hazardous areas. Application: industrial facilities with high-occupancy lighting and strict safety requirements. IP66-rated enclosure and Ex-protected design provide robust ingress protection against dust and water, enabling safe operation in washdown zones and rugged environments. Business impact: extended product life in challenging environments and fewer service calls. Application: plants in chemical, oil & gas, or processing sectors where harsh conditions are routine. Two-pole configuration with a built-in switch offers straightforward control of lighting circuits, saving panel space and simplifying wiring during installation. Business impact: faster commissioning and reduced commissioning costs. Application: control panels and field junctions requiring compact, compliant switches. Two M20 entries support flexible gland installation, improving wiring ergonomics and reducing the need for adapters. Business impact: easier field wiring and improved installation reliability. Application: retrofit projects or new builds in hazardous locations. Thermoplastic enclosure delivers chemical resistance and impact durability, enhancing long-term performance and operator safety. Business impact: reduced enclosure maintenance and safer environments. Application: environments with cleaning regimes or chemical exposure. Standards-compliant design with NEC/CEC IECEx/ATEX alignment ensures regulatory readiness and audit friendliness. Business impact: lowers risk of non-compliance penalties and streamlines procurement. Application: facilities subject to rigorous safety and environmental standards.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2732000R0003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2732000R0003?
Enquire Now
FAQs
Install the GHG2732000R0003 using the two M20 gland entries provided, wiring per 250 VAC, 16A ratings, and the two-pole configuration. Ensure enclosure mounting in a compliant hazardous-location zone, follow manufacturer wiring diagrams, and maintain proper clearances for heat dissipation and maintenance access. The thermoplastic housing supports typical washdown environments, but verify适 accordance with site procedures and IECEx/ATEX guidelines.
The switch is rated for 16A at 250 VAC in a two-pole configuration with an IP66-rated enclosure. It features 2 x M20 entries for gland wiring and a thermoplastic housing designed for rugged industrial use. These specs enable reliable lighting control in demanding environments while supporting compliance with NEC/CEC IECEx/ATEX standards.
Yes. The GHG2732000R0003 is designed for Hazardous/Classified Locations and carries NEC/CEC IECEx/ATEX certifications suitable for Class I and Class II locations, including Zone 1 and Zone 2 environments. Always confirm site classifications and follow proper installation practices to ensure ongoing compliance and safety.
The GHG2732000R0003 complies with NEC/CEC and IECEx/ATEX standards for hazardous locations, and it carries an IP66 ingress protection rating. It is suitable for Hazardous/Classified Locations, including Class I and II within Zone 1, Zone 2, and Division 1 environments, aligning with global industrial safety and regulatory requirements.
The Ex-protected, IP66-rated enclosure reduces ingress-related maintenance and downtime, while the two-pole switch and direct-gland entry design streamline installation and future servicing. Long-term ROI comes from fewer spare parts, simplified compliance documentation, and extended service life in harsh environments, leading to higher uptime and lower total cost of ownership.
