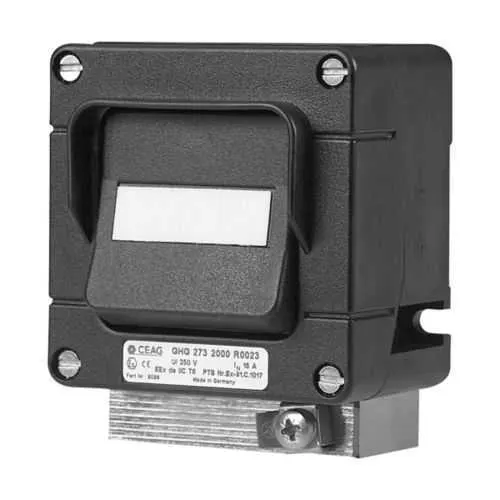

Eaton GHG2736000L0002 Light Switch - IP66 Ex-Protected
Part Number: GHG2736000L0002
Quick Summary
Eaton GHG2736000L0002 light switch provides reliable 3-way control for hazardous-location lighting in demanding industrial environments. This design addresses the common challenge of deploying switches that survive dust, water, and corrosive conditions while maintaining operable performance. It carries IP66 protection and IECEx/ATEX hazardous-location certifications, along with NEC/CEC compliance, giving engineers confidence in compliance and safety. By coupling a rugged thermoplastic enclosure with a 16 A, 250 VAC rating and centralized mounting options, it supports faster installation and reduced downtime. For projects where duty cycles are high and maintenance windows are limited, this switch offers predictable, long-term operation with simplified spare-part planning and streamlined procurement.
Product Information
Extended Description
GHG2736000L0002 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG273 light switch, 16A, 3-way, With switch, 1 x 3/4" NPT entry, Thermoplastic, 250 Vac
Product Name
Eaton's Crouse-Hinds series GHG273 light switch
Catalog Number
GHG2736000L0002
Product Length/Depth
120 mm
Product Height
75 mm
Product Width
90 mm
Product Weight
0.544 kg
EAN
4250217419898
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IECEx/ATEX
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2 Class II, Division 1 Class II, Division 2
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Configuration
3-way
Entry size
1 x 3/4" NPT
Voltage rating
250 Vac
Amperage Rating
16A
Material
Thermoplastic
Feature: 3-way configuration enables flexible multi-location control. Business Impact: Simplifies wiring topologies and reduces the need for additional control relays, lowering installation costs. Application: Large industrial lighting circuits in hazardous zones benefit from straightforward wiring paths and reliable operation. Feature: IP66 ingress protection ensures dust-tight and water-resistant performance. Business Impact: Extends service life in wash-down areas and outdoor installations, reducing maintenance cycles. Application: Offshore platforms, chemical plants, and mine sites where exposure is a daily reality. Feature: IECEx/ATEX and NEC/CEC certifications provide regulatory alignment. Business Impact: Mitigates compliance risk and accelerates project approval processes, supporting safer asset management. Application: Hazardous-location facilities under strict standards. Feature: 1 x 3/4" NPT entry simplifies conduit ingress. Business Impact: Eases field wiring and reduces time-to-fire-in, especially in constrained enclosures. Application: Panel installations with limited space or retrofit scenarios. Feature: Thermoplastic enclosure delivers lightweight, corrosion-resistant durability. Business Impact: Improves handling and longevity in harsh environments, lowering life-cycle costs. Application: High-traffic switch installations in refineries and processing plants. Feature: 16 A, 250 VAC rating supports demanding lighting loads. Business Impact: Maintains consistent performance without over-specifying components, improving reliability and cost efficiency. Application: Industrial lighting systems with high startup currents and frequent on/off cycles.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2736000L0002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2736000L0002?
Enquire Now
FAQs
Installation begins with de-energizing the circuit, then mounting the unit in a suitable enclosure. Connect the wiring to the 3-way terminals, ensuring the 1 x 3/4 inch NPT entry is utilized for conduit ingress. Verify IP66 integrity after sealing and test operation before returning the system to service. The thermoplastic body resists corrosion, aiding long-term reliability in harsh environments.
This switch is rated for 16 A at 250 VAC and supports a 3-way configuration. It is designed for use in hazardous locations with NEC/CEC and IECEx/ATEX compliance, offering reliable switching in demanding industrial lighting circuits while maintaining safe current handling and voltage performance.
Yes. The device carries IECEx/ATEX certification and NEC/CEC standards, classifying it for Hazardous/Classified Locations. It is designed to operate with confidence in Zone 1, Zone 2, and similar hazardous areas, ensuring compliance and safer operation in oil, gas, and chemical facilities.
Industries such as oil and gas, chemical processing, mining, and other heavy industrial sectors benefit from the IP66-rated protection, Ex-certified compliance, and robust thermoplastic enclosure. The 3-way configuration supports multi-location control, boosting efficiency in large facilities while reducing wiring complexity and maintenance downtime.
Expect reduced downtime due to durable IP66 protection and corrosion-resistant thermoplastic housing, with fewer component failures in harsh environments. The 16 A, 250 VAC rating supports reliable operation under typical start-up surges, contributing to longer service intervals and lower total cost of ownership over the asset lifecycle.
