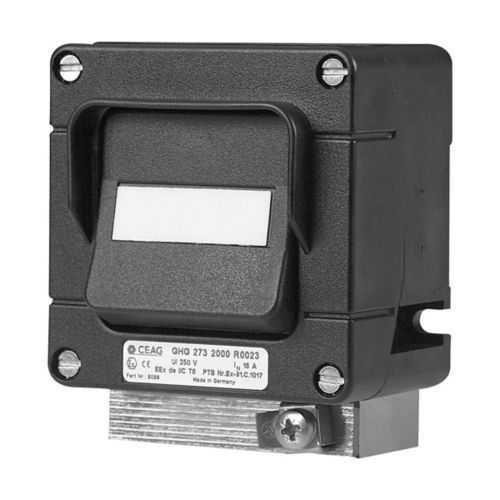

Eaton GHG2736000L0007 Light Switch - IP66 Ex-Protected
Part Number: GHG2736000L0007
Quick Summary
GHG2736000L0007 light switch controls lighting in hazardous locations with reliable performance for industrial facilities. In demanding environments, switches fail due to moisture, dust ingress, or explosive atmospheres, causing unexpected downtime. This Ex-Protected device meets IP66 ingress protection and IECEx/ATEX certifications, plus NEC/CEC hazardous area ratings, giving engineers confidence for field installation. Designed for 250 VAC and 16 A, it features a rugged thermoplastic enclosure with 1 x M20/2 x M20 entries, enabling flexible glanding. With straightforward wiring and proven ruggedness, it helps reduce maintenance costs while ensuring compliance across global facilities and safer, more reliable lighting control in challenging environments.
Product Information
Extended Description
GHG2736000L0007 Eaton Crouse-Hinds: Eaton Crouse-Hinds series GHG273 light switch, 16A, 3-way, With switch, 1 x M20/2 x M20 entries, Thermoplastic, 250 Vac
Product Name
Eaton's Crouse-Hinds series GHG273 light switch
Catalog Number
GHG2736000L0007
Product Length/Depth
3.35 in
Product Height
3.94 in
Product Width
2.52 in
Product Weight
1.76 lb
EAN
4250959906823
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX NEC/CEC
NEC hazardous rating
Class I, Zone 1 Class II, Division 1 Class I, Zone 2 Class II, Division 2 Class I, Division 2
Ingress protection (IP) ratings
IP66
Enclosure type
With switch
Configuration
3-way
Entry size
1 x M20/2 x M20
Voltage rating
250 Vac
Amperage Rating
16A
Material
Thermoplastic
Ex-Protected and IP66-rated construction provides reliable operation in demanding hazardous locations, reducing ignition risk and downtime in chemical plants, refineries, and offshore facilities. This translates to safer start-ups and lower risk management costs during commissioning and ongoing operation. The 3-way configuration with a built-in switch supports versatile control schemes, improving operator flexibility and enabling more efficient lighting strategies in large plant layouts. With 1 x M20/2 x M20 entries, installation is faster and more dependable, accommodating multiple gland types and simplifying wiring in tight panel spaces. A 16A, 250 VAC rating ensures compatibility with standard industrial lighting loads, minimizing the need for oversized equipment and reducing installed cost. Thermoplastic enclosure offers weather and impact resistance while keeping cooling requirements modest in hot or humid environments. IECEx/ATEX and NEC/CEC certifications confirm global compliance, easing procurement for multinational sites and reducing risk during audits. The compact dimensions, IP66 protection, and robust material selection collectively deliver lower maintenance intervals and longer service life, translating into meaningful lifecycle cost savings for asset-intensive operations.
Get a Quick Quote for a Eaton Crouse-Hinds GHG2736000L0007
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG2736000L0007?
Enquire Now
FAQs
The GHG2736000L0007 supports 1 x M20/2 x M20 entries, is IP66 rated, and is IECEx/ATEX compliant, making it suitable for Class I, Zone 1 installations. Use appropriate gland seals, follow enclosure tightening torques, and verify conductor sizing for 16 A at 250 VAC to ensure a compliant, safe integration.
Yes. The device carries IECEx/ATEX certification and NEC/CEC hazardous-area ratings, including Class I, Zone 1, ensuring safe operation in explosive atmospheres when installed per the manufacturer’s instructions.
Key specs include 16 A at 250 VAC, 3-way configuration with a built-in switch, IP66 enclosure, thermoplastic material, and 1 x M20/2 x M20 entry options. The unit is designed for hazardous locations and comes with Ex-protected protection for reliable operation in tough environments.
The product measures 3.35 in depth, 3.94 in height, and 2.52 in width, with a compact footprint suitable for panel or junction-box mounting in harsh environments. It weighs approximately 1.76 lb, aiding in transport and installation planning.
The IP66/Ex-Protected rating and rugged thermoplastic enclosure reduce ingress-related wear, lowering maintenance frequency. Its standardized 250 VAC, 16 A rating supports resilient lighting control across facilities, contributing to reduced downtime and improved asset uptime in hazardous-area operations.
