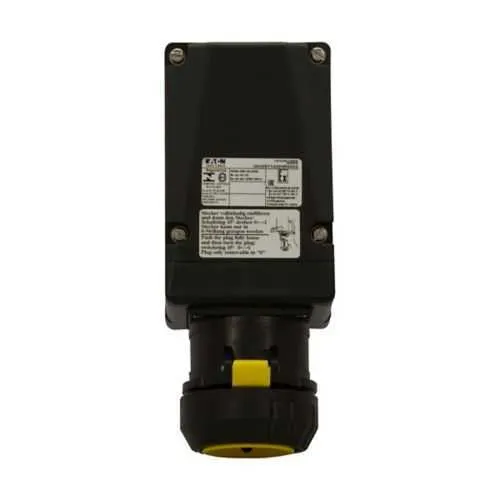

Eaton GHG5114405R3001 Interlock Receptacle - IP66
Part Number: GHG5114405R3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5114405R3001
Category
Quick Summary
The Eaton GHG5114405R3001 hazardous area interlock receptacle provides safe, code-compliant power interlock control for heavy industrial equipment in hazardous locations. Too often, teams struggle with sealing failures and wiring non-compliance that halt production. This interlock assembly holds IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC IEC hazardous location certifications for Class I Zone 1, Zone 2, and Division 2 environments. Leveraging IEC 60309 compatibility and a rugged nylon housing, it enables straightforward field installation, reliable operation, and reduced maintenance costs. Using this solution supports safer, compliant automation in harsh environments and can lower total cost of ownership over the life of critical equipment.
Product Information
Extended Description
GHG5114405R3001 Eaton Crouse-Hinds: Eaton's Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 16A, Three-wire, four-pole, Nylon, M25, 690 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5114405R3001
Product Length/Depth
5.8 in
Product Height
9.3 in
Product Width
4.3 in
Product Weight
2.78 lb
EAN
4250217426766
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
16 A
Trade size
M25
Configuration
Three-wire, four-pole
Voltage rating
690 Vac
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Eaton Specification Sheet - GHG5114405R3001
Feature: IEC 60309 compatible interlock design ensures standardized mating with plug-and-sleeve systems. Business Impact: reduces wiring mistakes and accelerates installation across global sites. Application: ideal for plant floors, chemical plants, and offshore facilities. Feature: 16 A, 690 Vac, three-wire, four-pole configuration. Business Impact: supports high-demand equipment interlocking without overloading circuits. Application: suitable for motors, pumps, and control panels in hazardous zones. Feature: IP66 ingress protection and NEMA 4X enclosure. Business Impact: protects electronics from water, dust, and corrosion; extends service life. Application: outdoor, marine, or washdown environments. Feature: Nylon housing with M25 trade entry. Business Impact: chemical resistance and robust mounting in vibration-heavy settings. Application: rugged field installations in harsh environments. Feature: Hazardous location certifications NEC/CEC IEC, Class I Zone 1/Zone 2, Division 2. Business Impact: simplifies compliance paperwork and regulatory approvals. Application: ensures safe operation in classified areas across North America and beyond. Feature: Clear 3-wire 4-pole interlock connection for safe shutdown. Business Impact: improves operator safety and reduces accidental energization. Application: control circuits and safety interlocks in manufacturing lines.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5114405R3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5114405R3001?
Enquire Now
FAQs
Ensure power is off, mount the interlock receptacle in a suitable enclosure, and route cables through the M25 gland. Connect the three-wire, four-pole configuration per the NEC/CEC IEC standards, verify IP66 sealing, and secure the nylon housing to avoid vibration or strain on terminations. Use compatible plug-and-sleeve components to maintain hazardous location integrity and reduce commissioning time.
The device is rated 16 A at 690 Vac in a three-wire, four-pole configuration, designed for demanding interlock functions. With IP66 sealing and a NEMA 4X enclosure, it resists dust, water ingress, and corrosion, delivering consistent operation in harsh environments and minimizing unplanned downtime on critical equipment.
Yes. It is certified for Hazardous/Classified Locations under NEC/CEC IEC standards, addressing Class I Zone 1 and Zone 2 (as well as Division 2) requirements. This makes it compliant for widespread hazardous location applications in plants, refineries, and offshore facilities.
Key certifications include IP66 ingress protection, NEMA 4X enclosure, and NEC/CEC IEC hazardous location standards. Area classification covers Hazardous/Classified Locations, ensuring compliance for equipment in Zone 1, Zone 2, and Division 2 environments, simplifying safety documentation and audits.
The rugged nylon housing, IP66/NEMA 4X protection, and IEC 60309 compatibility reduce maintenance frequency by safeguarding electronics against moisture and dust. Longer service life and fewer field faults translate to lower maintenance costs, reduced replacement parts inventory, and improved overall equipment uptime.
