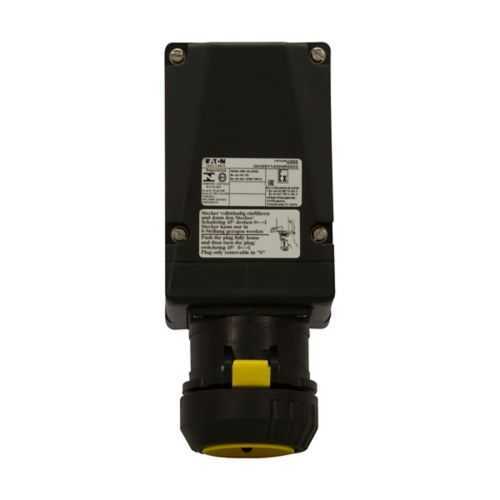

Eaton Crouse-Hinds GHG5114407L3001 Hazardous Area Interlock Receptacle - IP66
Part Number: GHG5114407L3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5114407L3001
Category
Quick Summary
The Eaton Crouse-Hinds GHG5114407L3001 hazardous area interlock receptacle provides safe, reliable power control in Class I/Zone 1 environments. When plants operate in potentially explosive atmospheres, unsealed interlock assemblies can compromise safety and equipment protection, leading to costly downtime. This device is engineered to meet NEC/CEC IEC standards while delivering IP66 and NEMA 4X protection, ensuring robust performance in harsh conditions and wet or dusty environments. Built for industrial interlocks and IEC 60309 hazardous area devices, it also supports efficient installation and long service life, helping facilities reduce maintenance cycles and total cost of ownership while maintaining strict compliance with global safety requirements.
Product Information
Extended Description
GHG5114407L3001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 20A, Three-wire, four-pole, Nylon, 3/4", 3 phase 480 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5114407L3001
Product Length/Depth
5.8 in
Product Height
9.3 in
Product Width
4.3 in
Product Weight
2.78 lb
EAN
4250217437229
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
20A
Trade size
3/4"
Configuration
Three-wire, four-pole
Voltage rating
480 Vac
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Eaton Specification Sheet - GHG5114407L3001
Feature → Business Impact → Application: 20A amperage rating supports typical industrial loads without over-distribution, improving wiring efficiency and reducing protection device overspec. This translates to lower wiring costs and improved plant safety in electrical panels and receptacle outlets used for hazardous locations like chemical plants. Feature → Business Impact → Application: 3/4" trade size and four-pole, three-wire configuration enable precise phase control and straightforward integration with IEC 60309 systems, speeding up installation and minimizing mis-wiring risks in offshore platforms and refineries. Feature → Business Impact → Application: Nylon housing delivers rugged chemical resistance and impact durability, extending service life in aggressive environments and lowering replacement costs in mining and oil & gas operations. Feature → Business Impact → Application: IP66 and NEMA 4X ratings provide reliable ingress protection against water and dust, supporting outdoor or wash-down areas and reducing maintenance interruptions in shipyards and hazardous industrial floors. Feature → Business Impact → Application: NEC/CEC/IEC certifications along with Class I Zone 1, Zone 2, and Division 2 ratings ensure global compliance, easing cross-site procurement and accelerating safety approvals for multinational projects. Feature → Business Impact → Application: IEC 60309 compliant interlock design improves compatibility with other hazardous area devices, enabling modular upgrades and scalable configurations for expanding production lines and automated systems.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5114407L3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5114407L3001?
Enquire Now
FAQs
Install according to IEC 60309 guidelines for hazardous locations, using the 3/4 inch trade size and four-pole, three-wire configuration. Ensure proper sealing and gaskets for IP66 protection and mount in a suitable enclosure to maintain NEMA 4X durability. Verify voltage and amperage ratings match your system and follow lockout/tagout procedures during wiring and testing.
The device carries NEC/CEC IEC standards compliance with hazardous area ratings Class I Zone 1, Zone 2 and Division 2. It also features IP66 ingress protection and NEMA 4X enclosure protection, suitable for hazardous/classified locations and harsh environments.
Yes. It uses the IEC 60309 hazardous area mating system and a 3/4" trade size, three-wire four-pole configuration, enabling reliable integration with compatible IEC 60309 plugs, receptacles, and interlocks for scalable hazardous-location power distribution.
Ideal for chemical processing, oil and gas facilities, mining sites, offshore platforms, and other hazardous locations where durable interlock control is required. Its nylon body, IP66/NEMA 4X protection, and hazardous-area certifications support reliable operation in demanding environments.
Expected benefits include reduced downtime due to robust ingress protection and high durability, lower replacement costs from a rugged nylon housing, and easier regulatory acceptance across sites thanks to NEC/CEC/IEC compliance. The device’s long service life in harsh environments translates to lower total cost of ownership over time.
