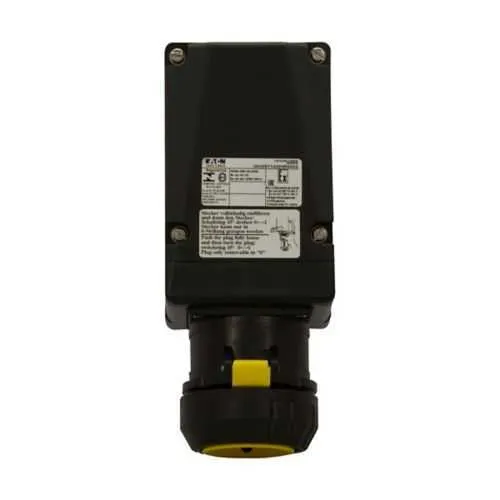

Eaton GHG5124406R3001 Hazardous Area Interlock - IP66
Part Number: GHG5124406R3001
Manufacturer
Eaton Crouse-Hinds
Part number
GHG5124406R3001
Category
Quick Summary
Eaton GHG5124406R3001 Hazardous area interlock receptacle provides safe, reliable control for heavy industrial environments. In hazardous locations, compatibility with IEC 60309, precise voltage ratings, and rugged sealing often complicate procurement and ongoing maintenance. This interlock meets NEC/CEC IEC standards, delivers IP66 protection, and carries a NEMA 4X rating, ensuring safe operation in Zone 1, Zone 2, and Division 2 areas. Coupled with nylon housing and a compact M32 form factor, it fits a wide range of installations and reduces downtime, enabling faster commissioning and lower lifecycle costs.
Product Information
Extended Description
GHG5124406R3001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle, 32A, Three-wire, four-pole, Nylon, M32, 380-415 Vac
Product Name
Eaton Crouse-Hinds series IEC 60309 hazardous area interlock receptacle
Catalog Number
GHG5124406R3001
Product Length/Depth
4.7 in
Product Height
11.5 in
Product Width
6.6 in
Product Weight
5.11 lb
EAN
4250217427091
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC IEC
NEC hazardous rating
Class I, Zone 1 Class I, Division 2 Class I, Zone 2
NEMA Rating
4X
Ingress protection (IP) ratings
IP66
Amperage Rating
32A
Trade size
M32
Configuration
Three-wire, four-pole
Voltage rating
380-415 Vac
Material
Nylon
IEC 60309 Hazardous Area Pin and Sleeve Devices catalog page
Eaton Specification Sheet - GHG5124406R3001
Feature: 32A amperage rating. Business Impact: supports typical industrial loads without oversizing hardware, reducing panel space and wiring costs. Application: designed for 380-415 VAC systems in hazardous areas, enabling reliable interlock operation during machine start-up and maintenance. Feature: IP66 ingress protection and NEMA 4X rating. Business Impact: delivers superior dust, water, and corrosion resistance, minimizing unplanned downtime and maintenance cycles. Application: ideal for washdown zones, chemical plants, and outdoor equipment enclosures in challenging environments. Feature: IEC 60309 compatibility with M32 trade size, three-wire, four-pole configuration. Business Impact: standardizes connections, speeds assembly, and lowers spare-parts inventory. Application: integrates with existing IEC 60309 networks in hazardous locations, simplifying procurement and installation. Feature: Nylon housing material. Business Impact: provides a lightweight yet durable housing with excellent chemical resistance. Application: well-suited for marine, offshore, and damp environments where long-term performance matters. Feature: Area classifications and NEC hazardous ratings compliance. Business Impact: supports regulatory adherence and risk reduction across Zone 1, Zone 2, and Division 2 applications. Application: reliable safety interlock solution for hazardous-area machinery and process equipment.
Get a Quick Quote for a Eaton Crouse-Hinds GHG5124406R3001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds GHG5124406R3001?
Enquire Now
FAQs
Install per IEC 60309 standards with a secure M32 mounting interface and appropriate enclosure spacing. Ensure the mating plug-and-socket pair is rated for 380-415 VAC and certified for Zone 1 or Zone 2 locations. Use proper sealing and strain-relief to preserve IP66 protection and prevent ingress in washdown conditions.
The device is rated for 32A at 380-415 VAC with a three-wire, four-pole configuration. This combination supports standard industrial loads while maintaining safe interlock functionality. The nylon housing and IP66/NEMA 4X ratings protect against dust, water, and corrosion, ensuring reliable operation in harsh environments.
Yes. It carries NEC hazardous ratings for Class I, Zone 1 and Zone 2, plus Division 2 classifications, aligning with IEC/NEC requirements. The IP66 and NEMA 4X protections further support operation in these locations, including damp, dusty, and potentially corrosive settings.
Certifications include Hazardous/Classified Locations per NEC/CEC IEC and IP66 with NEMA 4X protection. These align with regulatory expectations for hazardous-area equipment, enabling safer maintenance practices, compliant procurement, and reduced risk during installation in Zone 1, Zone 2, and Division 2 facilities.
The interlock’s rugged nylon housing, IP66/NEMA 4X protection, and IEC 60309 compatibility reduce maintenance downtime and spare-parts complexity. Its reliable safety interlock minimizes accidental energization during servicing, contributing to lower lifecycle costs and faster mean time to repair in demanding industrial environments.
